FORK TNG TERM 0.85IN BRAZED ETP COPPER

fork tng term 0.85in brazed etp copper

Stellar Part #3MCOM 7000133327

MFG Part #7000133327

MFG Name:3M

Product Description:

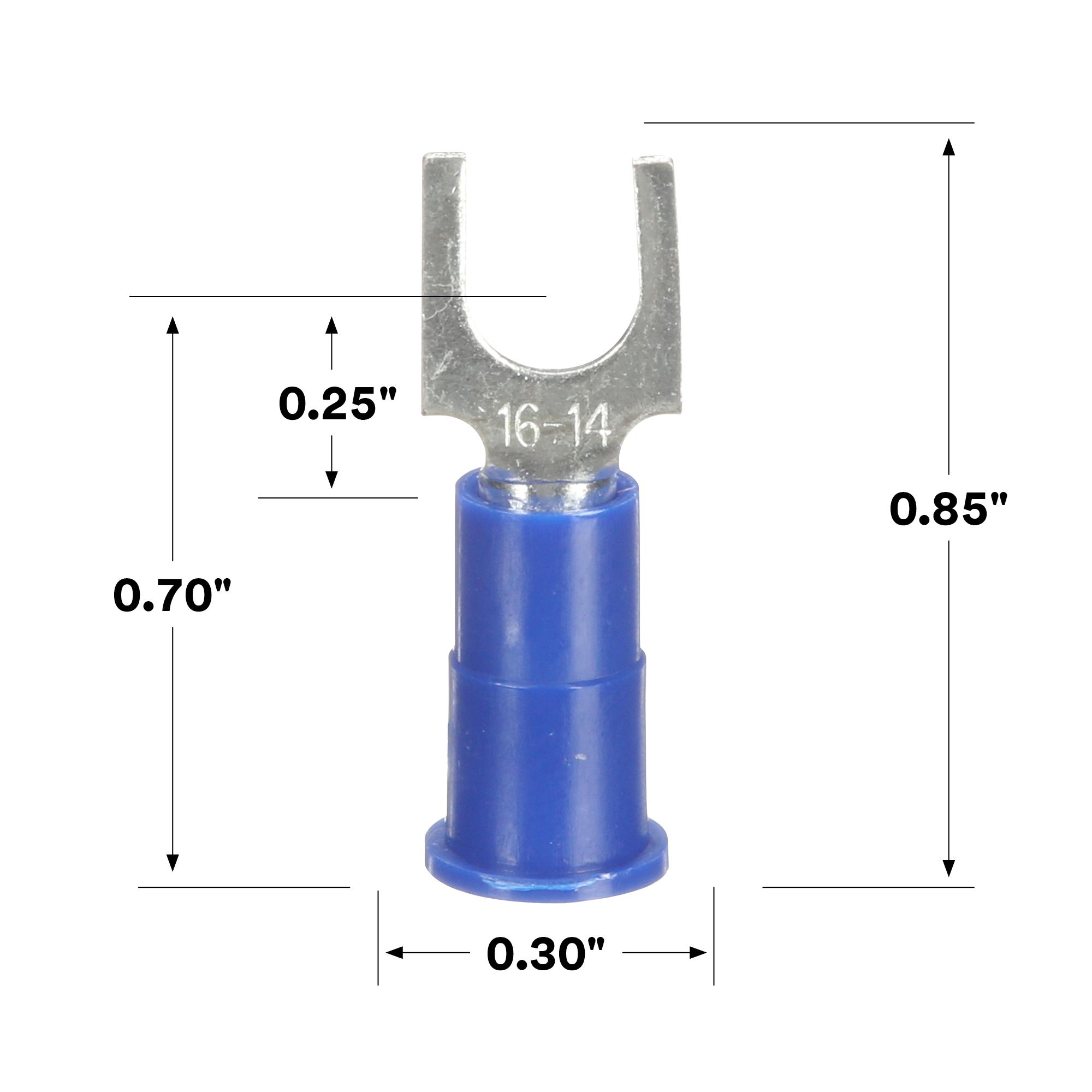

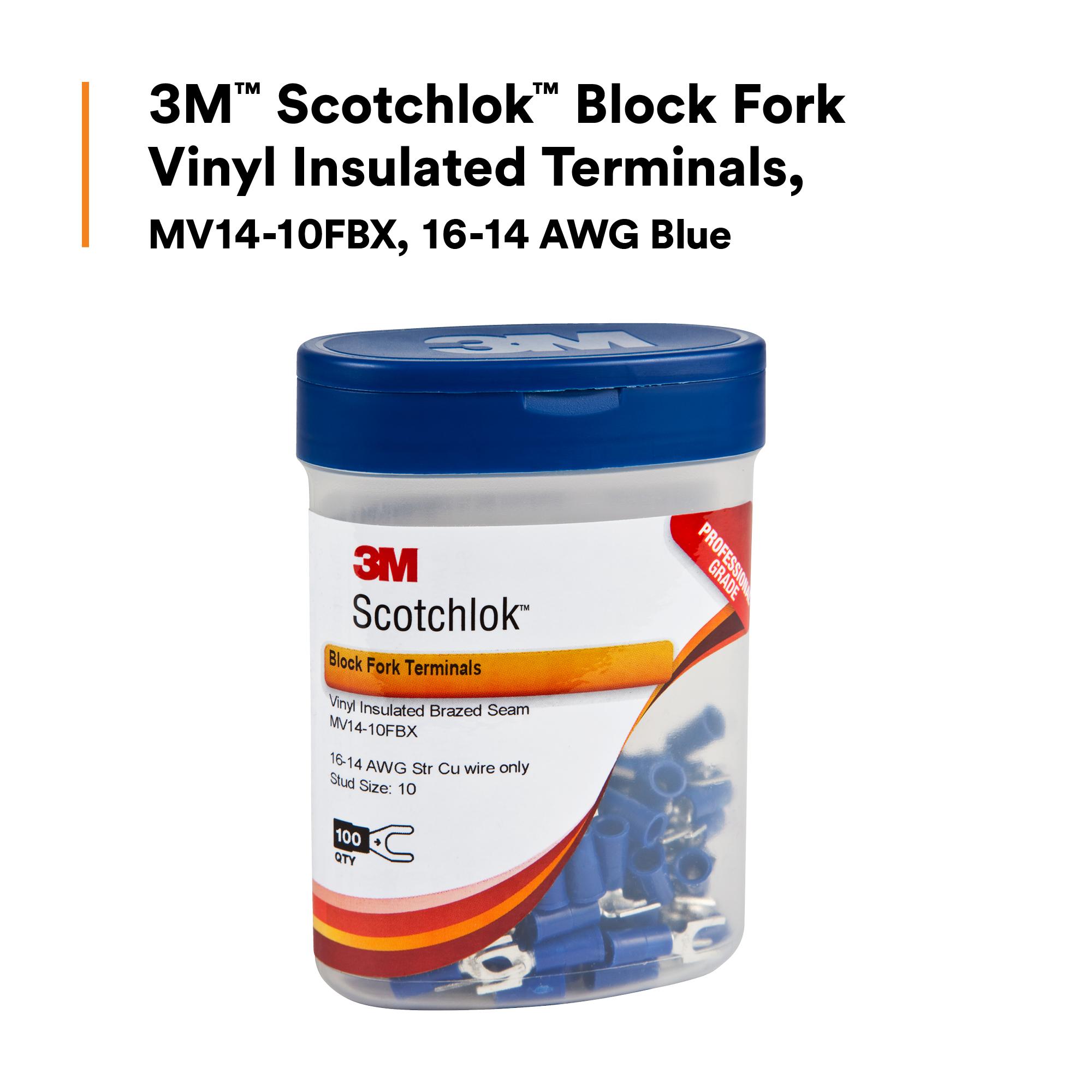

Scotchlok 7000133327 MV14-10FBX Block Fork Terminal, 0.85 in L, Brazed Barrel, ETP Copper, Blue

Technical Specifications
Resources

Barrel Size:

0.09 in ID x 0.25 in L, 0.135 in ID

Barrel Type:

Brazed, Brazed Seam

Color:

Blue

Conductor Size:

16 to 14 AWG

Conductor Type:

Stranded Copper

Dimensions:

0.85 in L

Finish:

Tin Plated

Length:

0.85 in

Material:

ETP Copper, Electrolytic Copper/Vinyl

Specifications:

0.17 in Dia Max Insulation, 1/4 in Clearance, 0.25 in Clearance

Stud Size:

#10

Temperature Rating:

-40 to 221 deg F, 105 deg C

Tongue Size:

0.3 in W, 0.3 in W x 0.03 in THK

Tongue Type:

Block, Fork

Type:

Block, Block Insulated

Voltage Rating:

600 V, 600 to 1000 V AC
