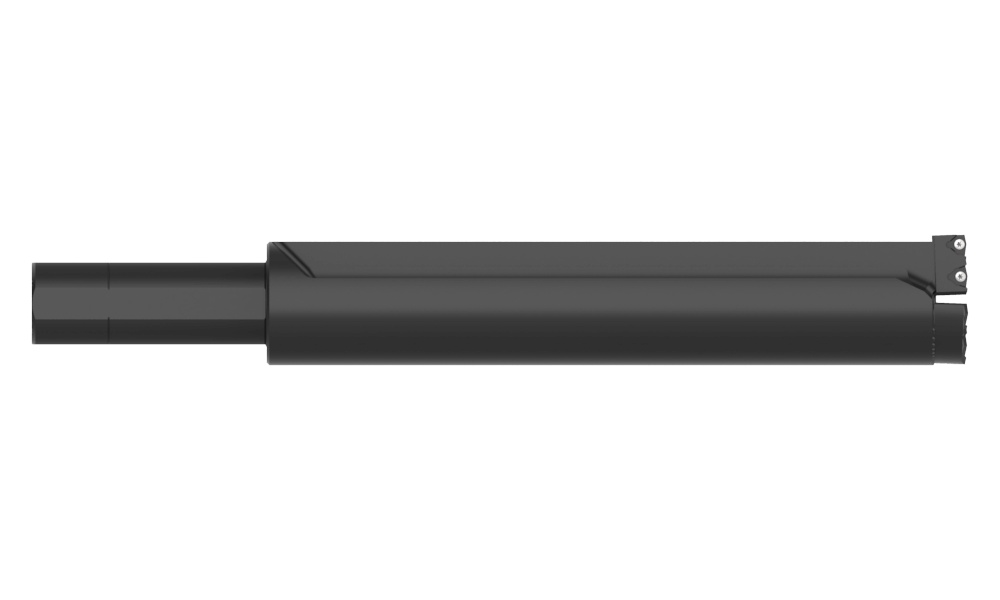

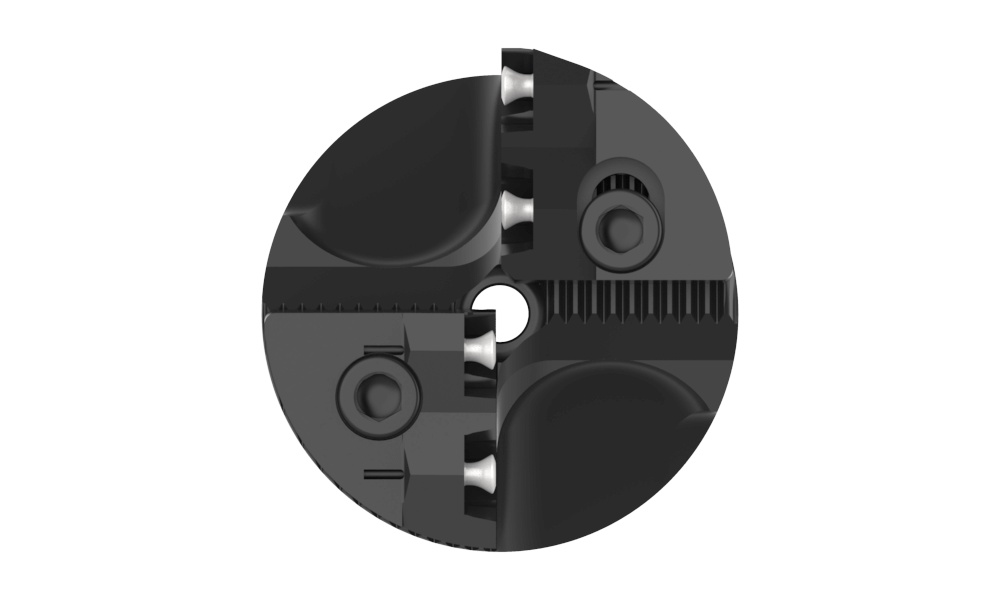

Allied Machine & Engineering R38X45-150L Standard Length Straight Flute Drill Insert Holder With Internal Through Coolant Channel, Straight Shank, 10-61/64 in D Drill
revolution drill 2.20-2.40 in range
Stellar Part #ALLIE R38X45-150L
MFG Part #R38X45-150L
MFG Name:Allied Machine & Engineering
Product Description:
Allied Machine & Engineering Drill Insert Holder, Standard Length Straight Flute, Drilling Capacity: 2.2 to 2.4 in, 10-61/64 in Drill Depth, 1-1/2 in Shank Dia, 4 in Shank Length, Straight Shank, 15-57/64 in Overall Length, 11-57/64 in Drill Body Length, 4.5XD Drill Depth by Dia Ratio, 1/4 in NPT Coolant Hole Thread
Login For Price
- Item Features
- Technical Specifications
- Resources
- Drills from solid with no pilot required or can open an existing hole while ignoring core shifts up to 1/8 in
- Ideal on low horsepower machines while maintaining high penetration rates
- Multi-insert design reduces chip size for easy chip evacuation
- Diameter adjustment reduces inventory and cost
- Adjustable up to 0.2 in on diameter
- Available for stack plate applications
- Replaceable and adjustable cartridges
- Indexable inserts available in AM300® and AM200® coatings as well as high rake and general purpose geometries
- Drills from solid with no pilot required or can open an existing hole while ignoring core shifts up to 1/8 in
- Ideal on low horsepower machines while maintaining high penetration rates
- Multi-insert design reduces chip size for easy chip evacuation
- Diameter adjustment reduces inventory and cost
- Adjustable up to 0.2 in on diameter
- Available for stack plate applications
- Replaceable and adjustable cartridges
- Indexable inserts available in AM300® and AM200® coatings as well as high rake and general purpose geometries
- Overall Length:15-57/64 inSeries:R38Shank Length:4 inShank Type:StraightType:Standard Length Straight FluteCoolant Hole Thread:1/4 in NPTDrill Body Length:11-57/64 inDrill Depth:10-61/64 inDrill Depth by Diameter Ratio:4.5XDDrilling Capacity:2.2 to 2.4 inShank Diameter:1-1/2 in
