EMUGE

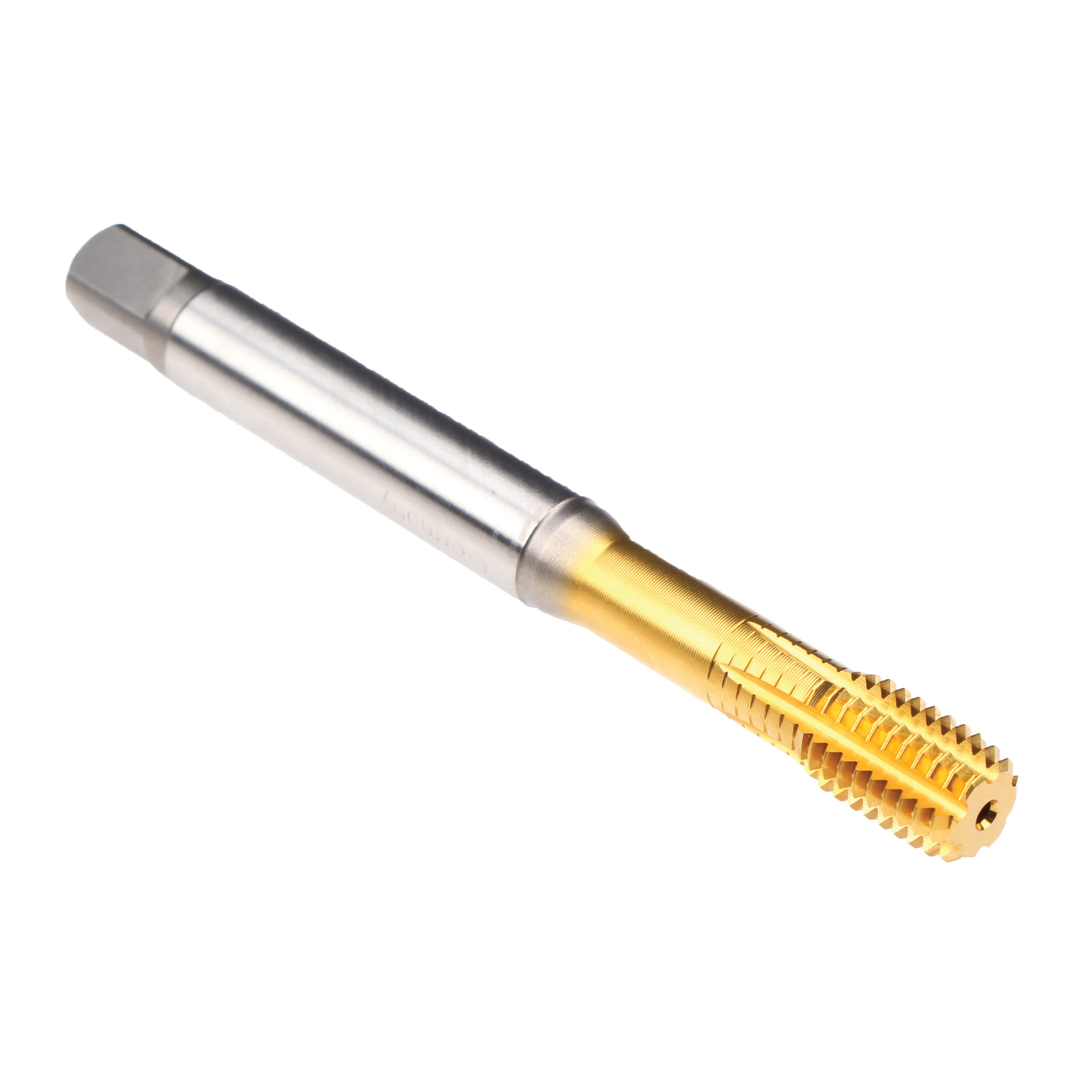

tap m5-6hx innoform

Stellar Part #EMUGE B5316A00.0050

MFG Part #B5316A00.0050

MFG Name:Emuge-Franken

1-VA/E-SN-IKZ-PM-TIN-T26

Country of Origin:

Manufacturer Name:

Emuge-Franken

Chamfer Type:

1.5-2 Plug

Class of Fit:

6HX

Cutting Direction:

Right Hand

Finish/Coating:

TiN

Material:

HSS-E-PM

Measurement System:

Metric

Overall Length:

70 mm

Series:

InnoForm 1-VA/E-SN-IKZ-PM B5316A00

Shank Diameter:

6 mm

Square Size:

4.9 mm

Thread Length:

15 mm

Thread Size:

M5x0.8

Thread Standard:

Type:

Form E Reinforced Shank

: Country of Origin:
DE
Manufacturer Name:
Emuge-Franken
Chamfer Type:
1.5-2 Plug
Class of Fit:
6HX
Cutting Direction:
Right Hand
Finish/Coating:
TiN
Material:
HSS-E-PM
Measurement System:
Metric
Overall Length:
70 mm
Series:
InnoForm 1-VA/E-SN-IKZ-PM B5316A00
Shank Diameter:
6 mm
Square Size:
4.9 mm
Thread Length:
15 mm
Thread Size:
M5x0.8
Thread Standard:
M
Type:
Form E Reinforced Shank
