Iscar 5901910 ISCARTHREAD Laydown Threading Insert, 16IRAG Insert, Triangular Shape, 8 to 48 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 3 mm Pitch, Right Hand Cutting, Manufacturer's Grade: IC908, Material Grade: H, K, M, P, S
insert threading 16irag triangular intl
Stellar Part #ISCAR 5901910
MFG Part #5901910
MFG Name:Iscar
Product Description:

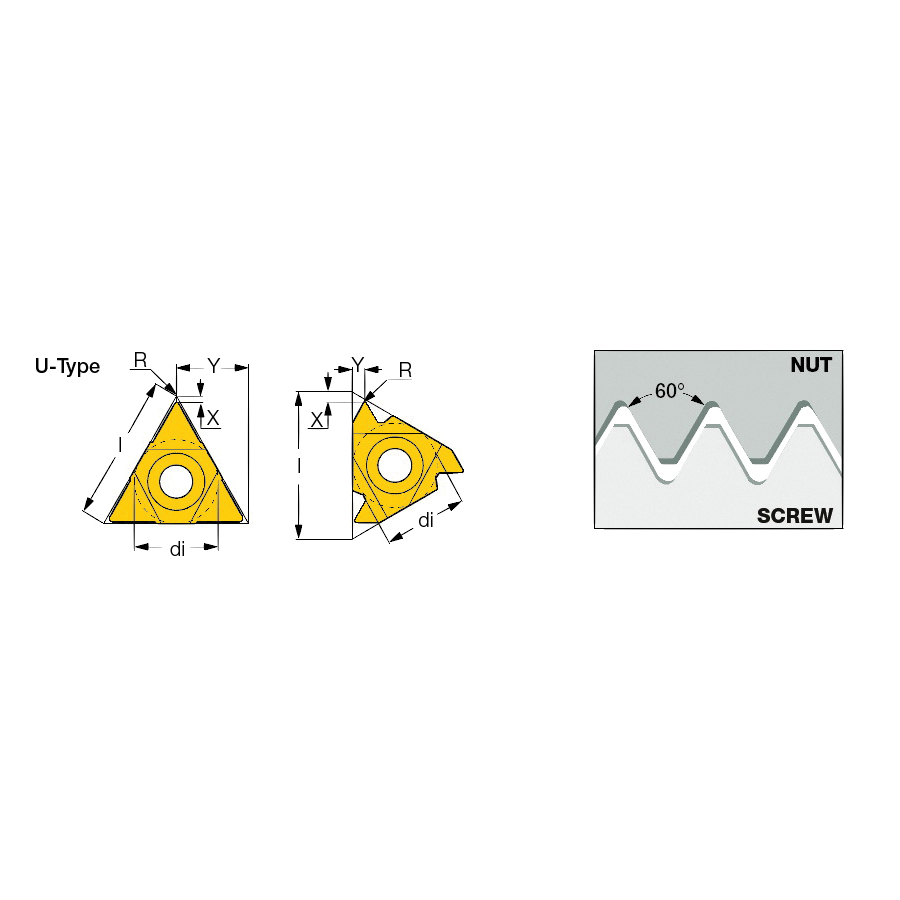

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16IRAG Insert, 16 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.5 to 3 mm Pitch, 8 to 48 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16IR AG 60 IC908, 0.04 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: IC908, Right Hand Cutting Direction, Carbide, TiAlN, Material Grade: H, K, M, P, S
Login For Price
- Technical Specifications
- Country of Origin:ILManufacturer Name:IscarCorner Radius:0.04 mmCutting Direction:Right HandFinish:TiAlNIncluded Angle:60 degInscribed Circle:9.52 mmInsert Size:16Insert Style:16IRAGISO Code:16IR AG 60 IC908Length:16.49 mmManufacturer's Grade:IC908Material:CarbideMaterial Grade:H, K, M, P, SPitch:0.5 to 3 mmSeries:ISCARTHREADShape:TriangularThickness:3.63 mmThread Standard:60 deg Partial ProfileThread Type:InternalThreads per Inch:8 to 48Type:Laydown
