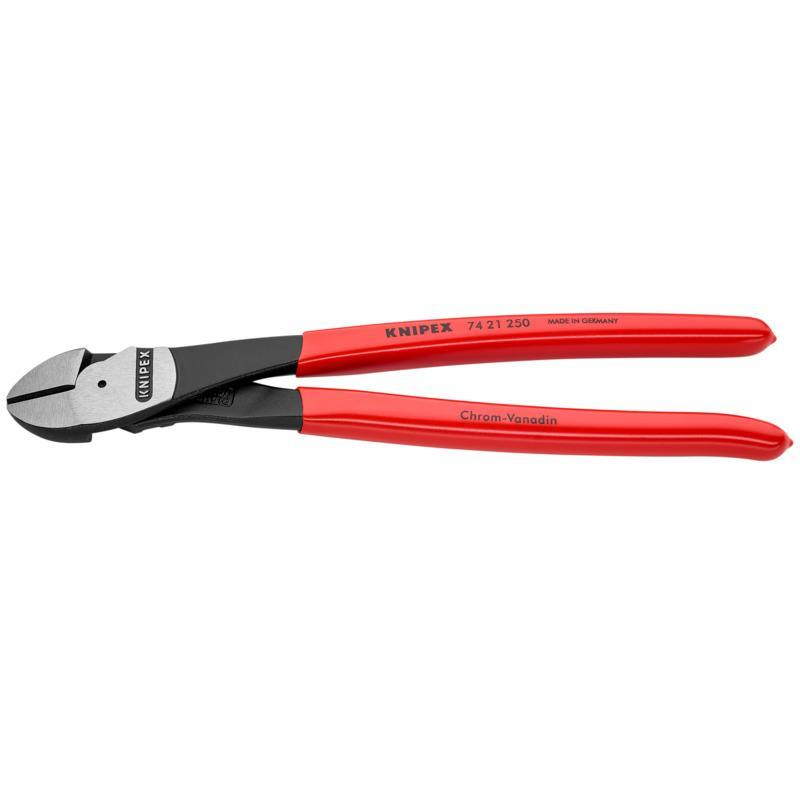

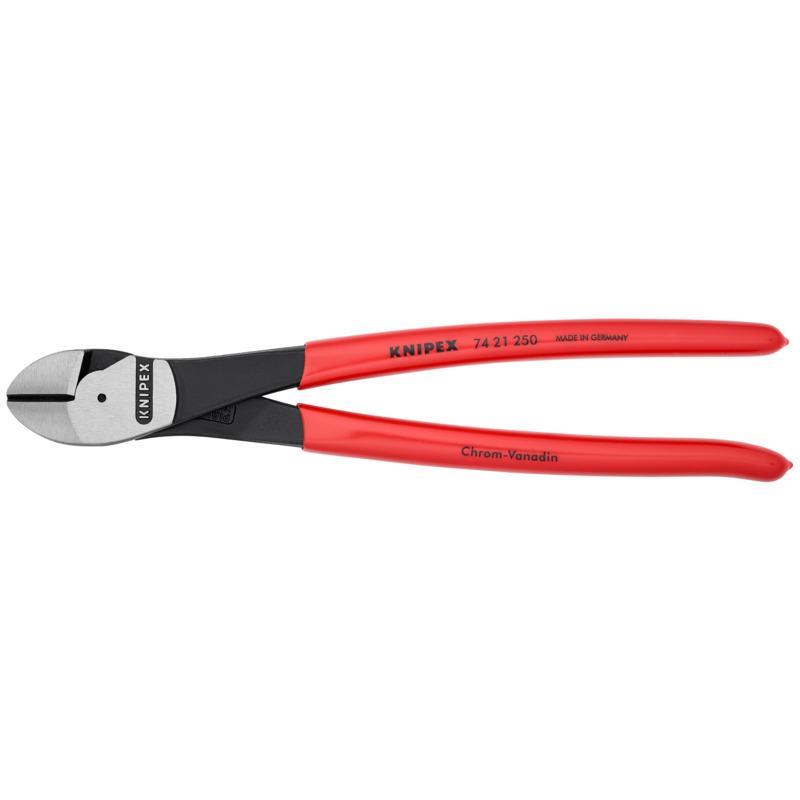

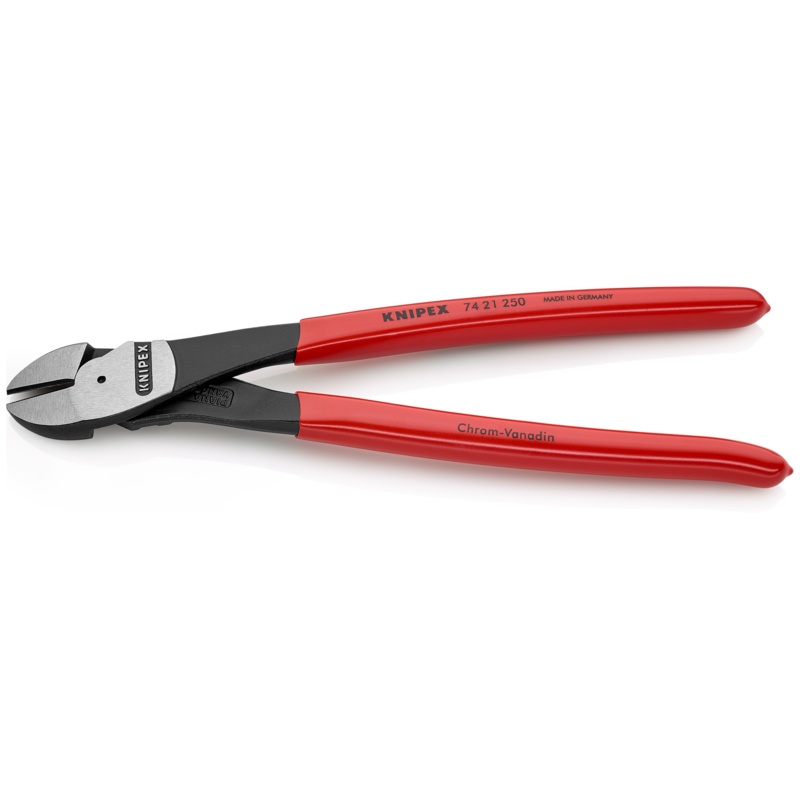

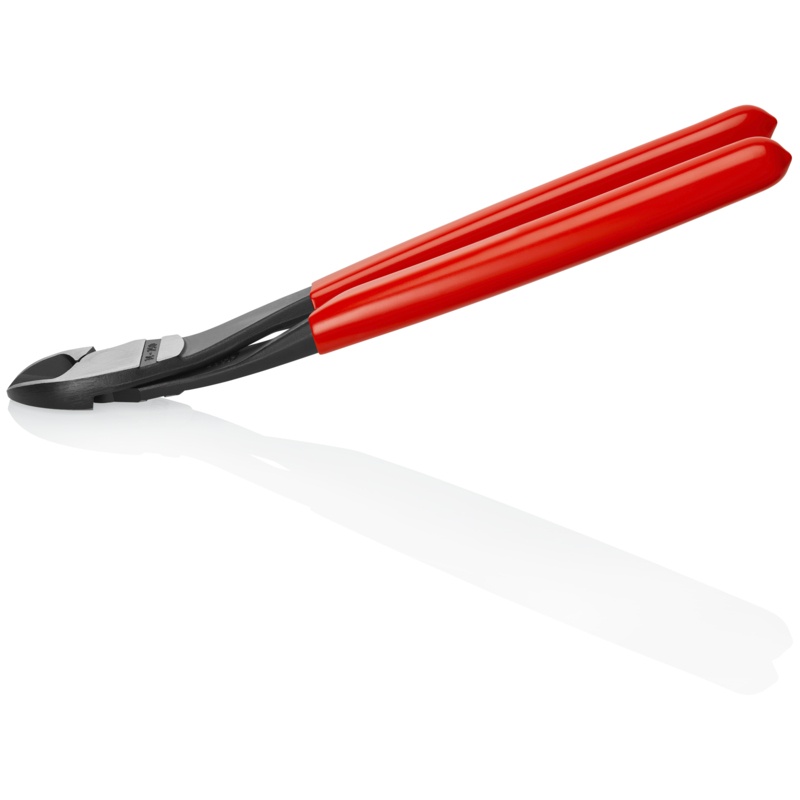

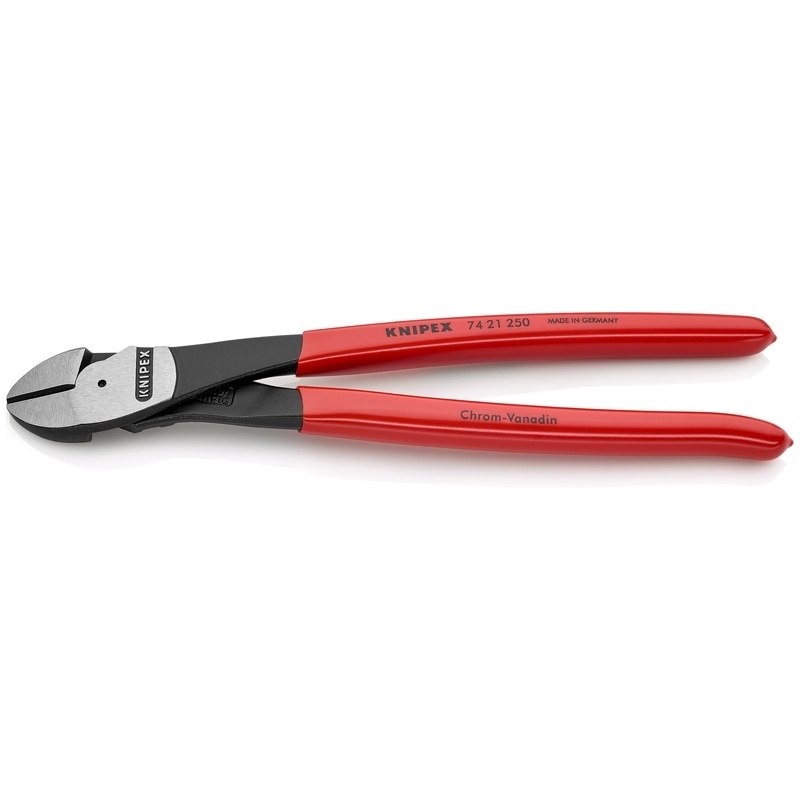

Knipex® 74 21 250 High Leverage Diagonal Cutting Plier, 3/16 in Dia Medium Hard, 9/64 in Dia Hard, 1/8 in Dia Piano Wires Nominal, 1 in L x 1-1/8 in W Angled/Oval Jaw, 10 in OAL, Beveled Cut, DIN ISO 5746
diag ctg plr
Stellar Part #KNIPE 74 21 250
MFG Part #74 21 250
MFG Name:Knipex Tools
Product Description:
Knipex®, 74 21 250, Diagonal Cutting Plier, High Leverage, 3/16 in Dia Medium Hard, 9/64 in Dia Hard, 1/8 in Dia Piano Wires Nominal, Angled/Oval Jaw, 1 in L x 1-1/8 in W Jaw, Beveled Cut, 10 in Overall Length, Dipped/Pistol Grip Handle, Plastic Coated Handle, Specifications Met: DIN ISO 5746, Insulated: No, Black Atramentized, Red, Applicable Materials: Nail, Steel Wire, Spring Steel Wire, Wire Pin and Wire Rope Strand
Login For Price
- Item Features
- Technical Specifications
- Resources
- 20% reduction in required force compared to conventional diagonal cutters of the same length
- High leverage means less force required because the rivet is closer to the cutting edge
- High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio
- Precision cutting edges additionally induction hardened (cutting edge hardness approximately 64 HRC), for all sorts of wire including piano wire
- Chrome vanadium heavy duty steel, forged, multi-stage oil hardened
- Integrated forged joint axle for very tough, continuous use
- Suitable for copper conductors up to 16 sq-mm and aluminum conductors up to 35 sq-mm
- 20% reduction in required force compared to conventional diagonal cutters of the same length
- High leverage means less force required because the rivet is closer to the cutting edge
- High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio
- Precision cutting edges additionally induction hardened (cutting edge hardness approximately 64 HRC), for all sorts of wire including piano wire
- Chrome vanadium heavy duty steel, forged, multi-stage oil hardened
- Integrated forged joint axle for very tough, continuous use
- Suitable for copper conductors up to 16 sq-mm and aluminum conductors up to 35 sq-mm
- Applicable Materials:Nail, Steel Wire, Spring Steel Wire, Wire Pin and Wire Rope StrandColor:RedCut Type:BeveledFinish:Black AtramentizedHandle Material:Plastic CoatedHandle Type:Dipped/Pistol GripInsulated:NoJaw Material:Chrome Vanadium SteelJaw Size:1 in L x 1-1/8 in WJaw Type:Angled/OvalNominal Capacity:3/16 in Dia Medium Hard, 9/64 in Dia Hard, 1/8 in Dia Piano WiresOverall Length:10 inSpecifications Met:DIN ISO 5746Type:High Leverage
