Niagara Cutter

INSERT TURN DNMG P 150408 DMD 15 NEG/POS

insert turn dnmg p 150408 dmd 15 neg/pos

Stellar Part #NIAGA 15411

MFG Part #02959938

MFG Name:Seco Tools

Product Description:

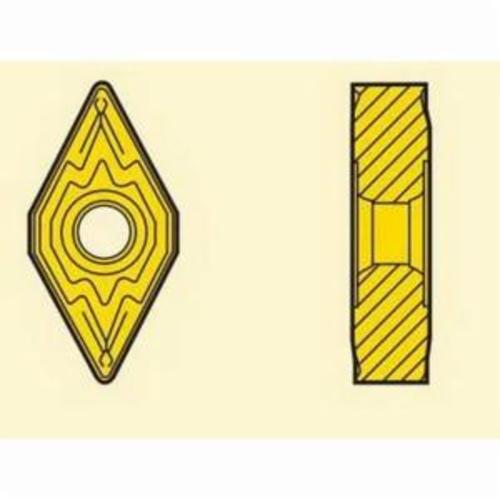

Seco 02959938 Turning Insert, ANSI Code: DNMG432-M3 TP0501, DNMG Insert, Material Grade: P, 150408 Insert, Diamond Shape, 15 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP0501

Technical Specifications
Resources

ANSI Code:

DNMG432-M3 TP0501

Chipbreaker:

Corner Radius:

0.8 mm

Cutting Direction:

Neutral

Finish:

CVD-TiCN+Al2O3 Coated

For Use On:

Steel

Hole Diameter:

5.15 mm

Included Angle:

55 deg

Inscribed Circle:

12.7 mm

Insert Size:

150408

Insert Style:

DNMG

ISO Code:

DNMG150408-M3 TP0501

Manufacturer's Grade:

TP0501

Material:

Carbide

Material Grade:

Maximum Depth of Cut:

5.25 mm

Rake:

Negative/Positive

Relief Angle:

0 deg

Seat Size:

Shape:

Diamond

Thickness:

4.76 mm

: ANSI Code:
DNMG432-M3 TP0501
Chipbreaker:
M3
Corner Radius:
0.8 mm
Cutting Direction:
Neutral
Finish:
CVD-TiCN+Al2O3 Coated
For Use On:
Steel
Hole Diameter:
5.15 mm
Included Angle:
55 deg
Inscribed Circle:
12.7 mm
Insert Size:
150408
Insert Style:
DNMG
ISO Code:
DNMG150408-M3 TP0501
Manufacturer's Grade:
TP0501
Material:
Carbide
Material Grade:
P
Maximum Depth of Cut:
5.25 mm
Rake:
Negative/Positive
Relief Angle:
0 deg
Seat Size:
15
Shape:
Diamond
Thickness:
4.76 mm
