Stellar Industrial | OTHER | INSERT INDEXABLE TURN ABW N S K IRREG

content loaded

OTHER

INSERT INDEXABLE TURN ABW N S K IRREG

insert indexable turn abw n s k irreg

Stellar Part #KYOCE TWE01200

MFG Part #TWE01200

MFG Name:KYOCERA Precision Tools

Product Description:

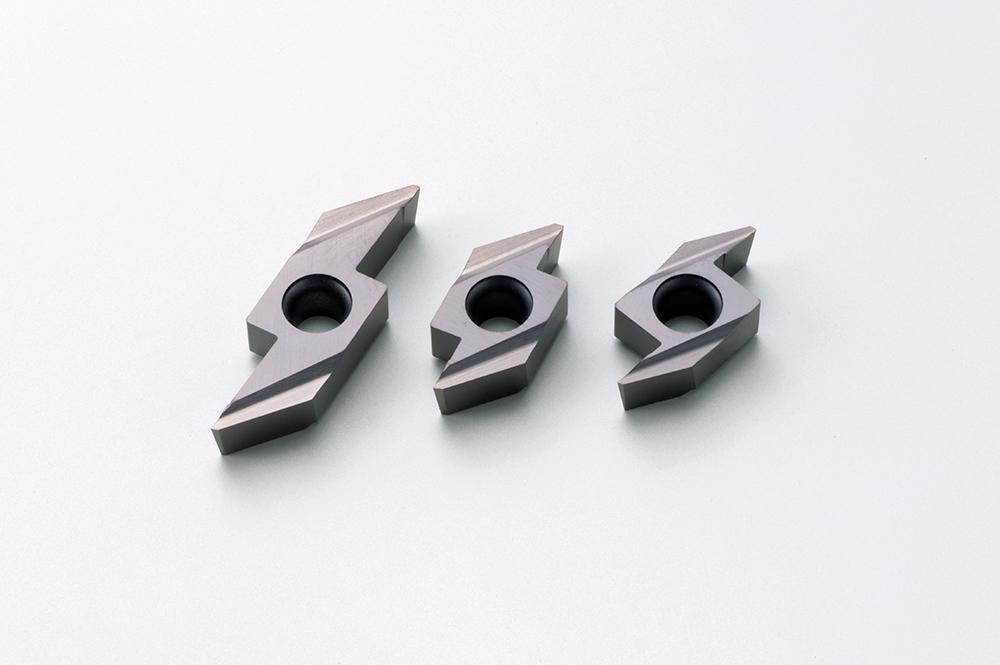

KYOCERA TWE01200 2-Cutting Edge Indexable Turning Insert With Hole, 40 to 60 deg Countersink, ANSI Code: ABW15R4005KW10, ABW Insert, Material Grade: N, S, K, #15-4005 Insert, Irregular Shape, 15 Seat, Positive Rake, Right Hand Cutting, Carbide

Technical Specifications
Resources

ANSI Code:

ABW15R4005KW10

Corner Radius:

0.002 in

Cutting Direction:

Right Hand

Finish:

Uncoated/WC/Co Coated

For Use On:

Gray Cast Iron, Non-Ferrous Metals and Titanium Alloy

Hole Diameter:

0.1181 in

Insert Size:

#15-4005

Insert Style:

ABW

ISO Code:

ABW15R4005

Length:

0.6063 in

Manufacturer's Grade:

KW10

Material:

Carbide

Material Grade:

N, S, K

Rake:

Positive

Relief Angle:

15 deg

Seat Size:

Shape:

Irregular

Thickness:

5/32 in

Type:

2-Cutting Edge

Width:

0.2756 in

: ANSI Code:
ABW15R4005KW10
Corner Radius:
0.002 in
Cutting Direction:
Right Hand
Finish:
Uncoated/WC/Co Coated
For Use On:
Gray Cast Iron, Non-Ferrous Metals and Titanium Alloy
Hole Diameter:
0.1181 in
Insert Size:
#15-4005
Insert Style:
ABW
ISO Code:
ABW15R4005
Length:
0.6063 in
Manufacturer's Grade:
KW10
Material:
Carbide
Material Grade:
N, S, K
Rake:
Positive
Relief Angle:
15 deg
Seat Size:
15
Shape:
Irregular
Thickness:
5/32 in
Type:
2-Cutting Edge
Width:
0.2756 in
