Stellar Part #SECCA 03080921
MFG Part #03080921
MFG Name:Seco Tools
Product Description:

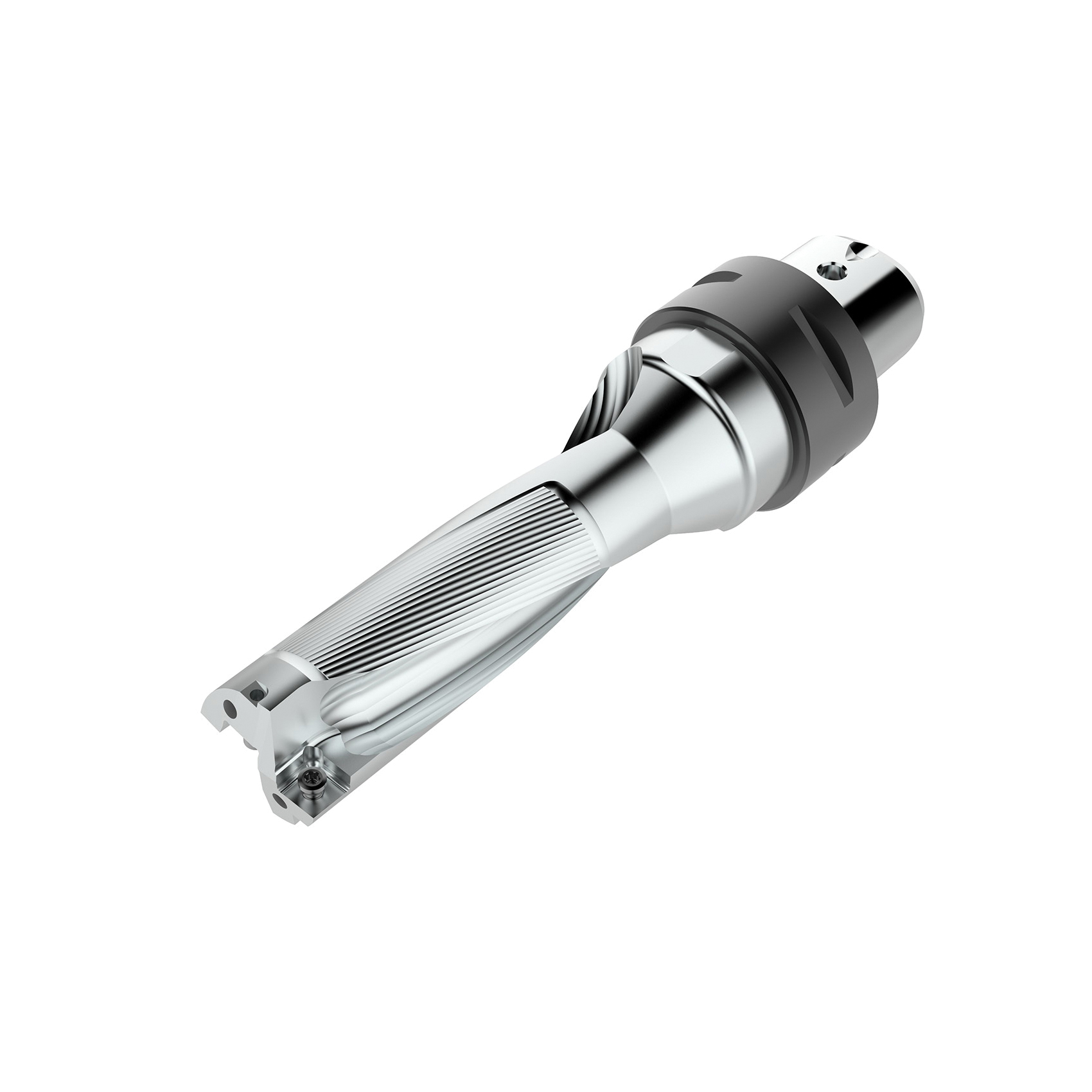

Seco 03080921 Perfomax SD523 Indexable Insert Drill, 15.5 mm Drill, C4 Modular Connection, 3XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 108 mm OAL, 47 mm D Max Drill
Login For Price
- Technical Specifications
- Resources

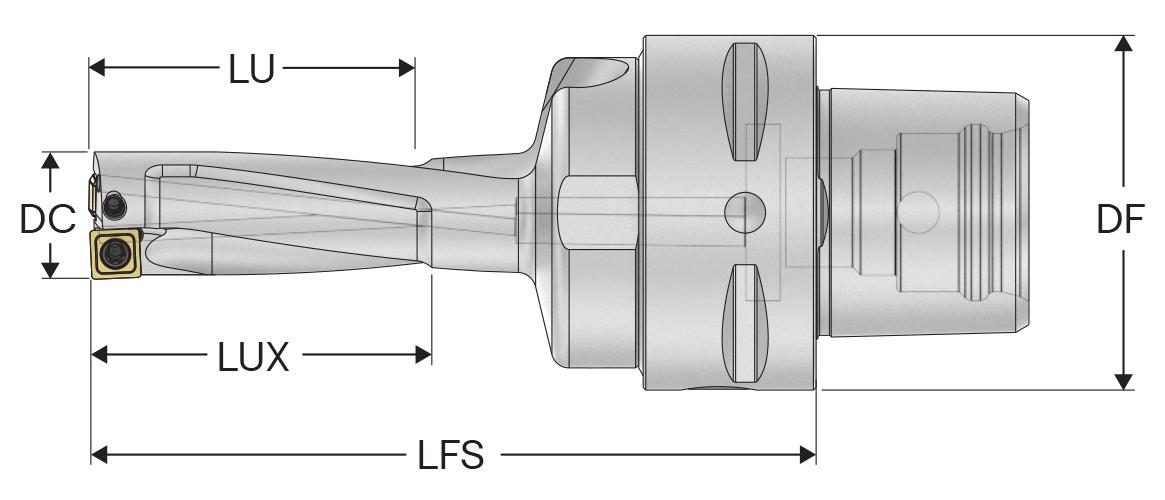

- Diameter:15.5 mmDrill Depth by Diameter Ratio:3XDDrill Size:15.5 mmFlute Length:52 mmInsert Compatibility:SPGX0502 Center, SCGX050204 PeripheralInsert Style:SPGX/SCGXMaximum Drill Depth:47 mmModular Connection Size:C4Number of Drill Inserts:2Overall Length:108 mmSeries:Perfomax™ SD523Shank Type:Seco-Capto™Through Coolant (Yes/No):Yes
