Stellar Part #SECCA 10299529
MFG Part #10299529
MFG Name:Seco Tools
Product Description:

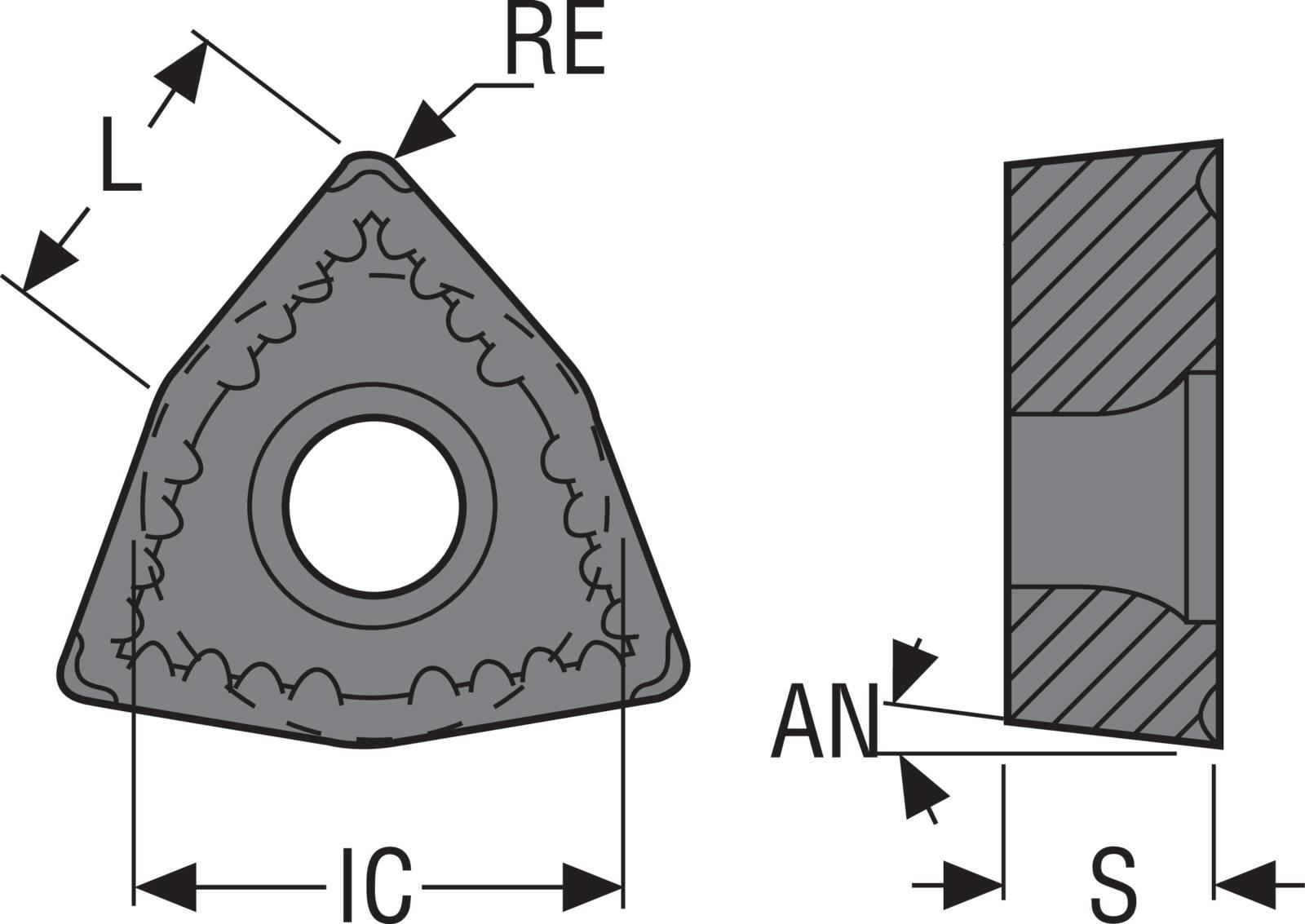

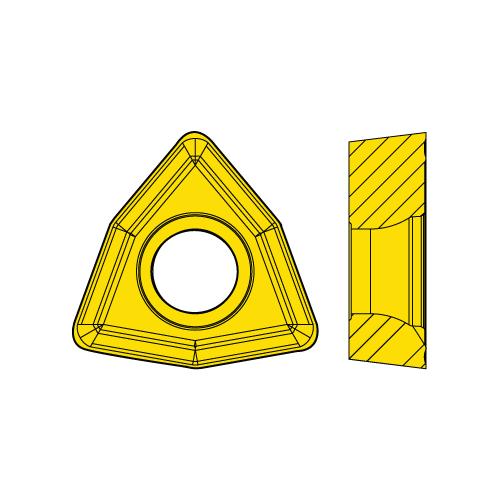

Seco 10299529 Drilling Insert, ANSI Code: WCMX050308-86, Trigon Shape, 05 Insert, WCMX Insert, 0.1252 in THK, 7.94 mm Inscribed Circle, For Use On Cast Iron/Hard Material/Non-Ferrous Metal/Stainless Steel/Superalloys and Titanium, Material Grade:
Login For Price
- Technical Specifications
- Resources
- Country of Origin:INManufacturer Name:Seco ToolsANSI Code:WCMX050308-86Chipbreaker:86Corner Radius:0.0312 inFor Use On:Cast Iron/Hard Material/Non-Ferrous Metal/Stainless Steel/Superalloys and TitaniumHand of Insert:NeutralIncluded Angle:80 degInscribed Circle:7.94 mmInsert Size:05Insert Style:WCMXLength:0.1996 inManufacturer's Grade:DP2501Material:CarbideMaterial Grade:MicrograinShape:TrigonThickness:0.1252 inWidth:0.3992 in
