Stellar Industrial | Seco | MILLING CHUCK BT40 AD 32MM 67MM 90MM

content loaded

Seco

milling chuck bt40 ad 32mm 67mm 90mm

Stellar Part #SECCA 10185651

MFG Part #10185651

MFG Name:Seco Tools

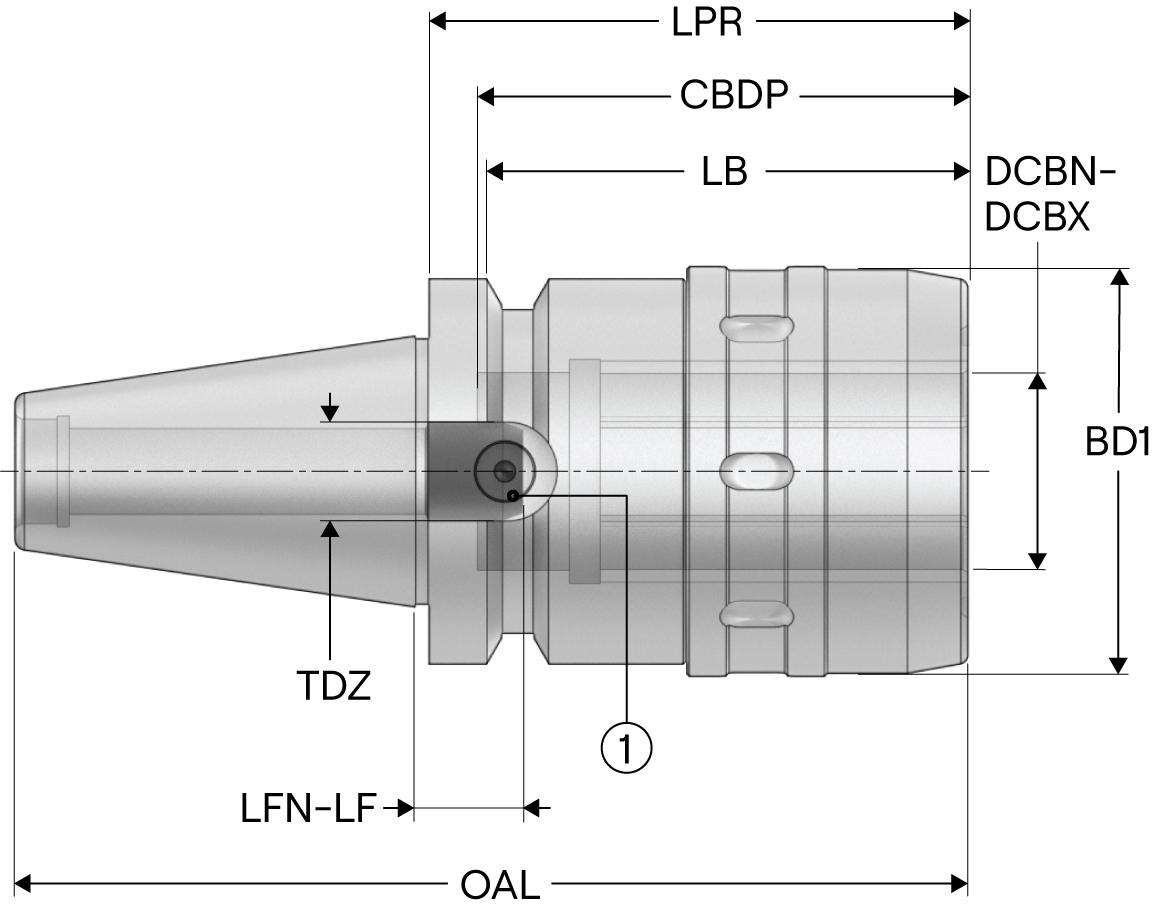

Seco 10185651 Milling Chuck, BT40 AD Taper, 32 mm Dia Hole, 67 mm Dia Nose, 90 mm Projection

ANSI Code:

BT40AD-PMC32-090

Country of Origin:

ISO Code:

BT40AD-PMC32-090

Manufacturer Name:

Seco Tools

Bore Depth:

80 mm

Hole Diameter:

32 mm

Length:

155.4 mm

Nose Diameter:

67 mm

Projection:

90 mm

System Size Machine Side:

BT40 AD

Taper Size:

BT40 AD

: ANSI Code:
BT40AD-PMC32-090
Country of Origin:
IT
ISO Code:
BT40AD-PMC32-090
Manufacturer Name:
Seco Tools
Bore Depth:
80 mm
Hole Diameter:
32 mm
Length:
155.4 mm
Nose Diameter:
67 mm
Projection:
90 mm
System Size Machine Side:
BT40 AD
Taper Size:
BT40 AD
: Catalog
