knob retention 5/8-11 unc 15deg 18.9mm

Stellar Part #SECCA 03119964

MFG Part #03119964

MFG Name:Seco Tools

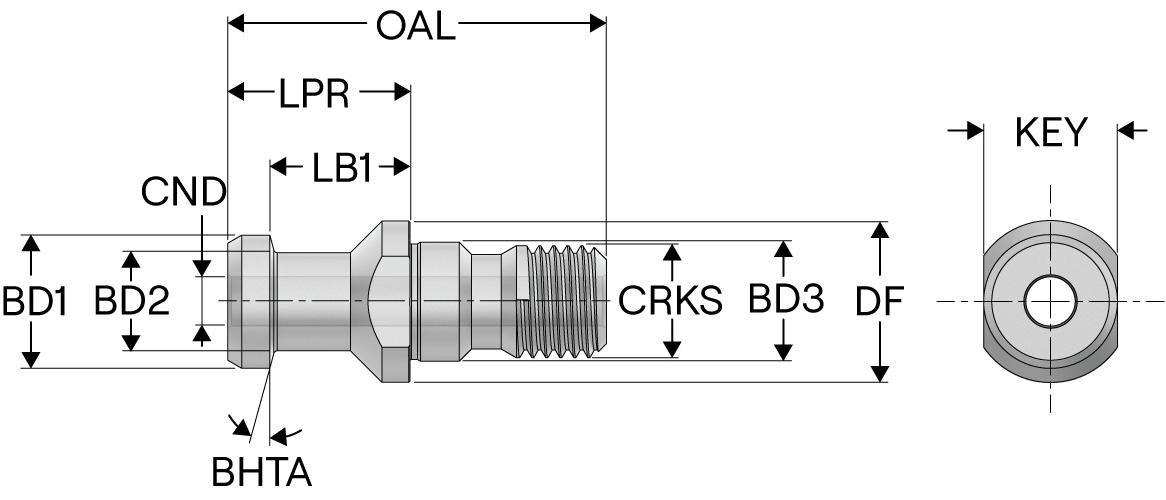

Seco 03119964 Retention Knob, 5/8-11 UNC Thread, 15 deg, 18.9 mm Dia Knob, CAT40 Taper, 52.4 mm OAL

Angle:

15 deg

Flange to Angle Length:

20 mm

Flange to Knob Length:

26 mm

Knob Diameter:

18.9 mm

Neck Diameter:

16.3 mm

Overall Length:

52.4 mm

Taper Size:

CAT40

Thread Size:

5/8-11 UNC

Through Coolant (Yes/No):

Yes

: Angle:
15 deg
Flange to Angle Length:
20 mm
Flange to Knob Length:
26 mm
Knob Diameter:
18.9 mm
Neck Diameter:
16.3 mm
Overall Length:
52.4 mm
Taper Size:
CAT40
Thread Size:
5/8-11 UNC
Through Coolant (Yes/No):
Yes
