WALTER USA

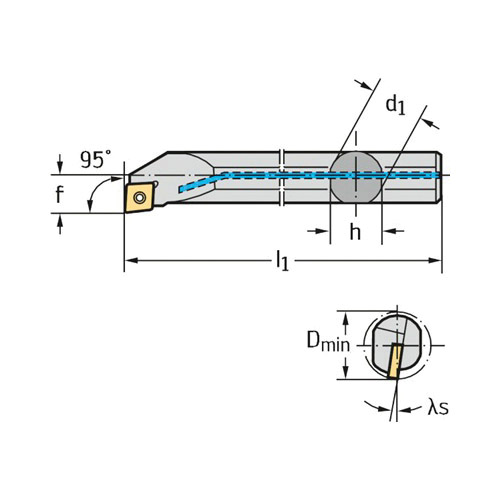

A12S-SCLCR3 3/4IN CONNECTION DIA

bar boring indexable a-sclc 0.929in r

Stellar Part #WALTE 5204717

MFG Part #5204717

MFG Name:Walter

Product Description:

1/2IN FUNCTIONAL WIDTH 10IN OAL INSERT SEAT SIZE 09 MIN DIA 0.929IN

Technical Specifications

Country of Origin:

Hand of Holder:

Right

Inscribed Circle:

3/8 in

Insert Compatibility:

CC .. 09T3 ../CC .. 3(2 . 5) .

Insert Screw:

FS2063 15 Torx® Plus

Insert Shape:

80 deg Diamond/Rhombic

Insert Thickness:

5/32 in

Manufacturer Name:

Walter

Material:

Steel

Minimum Bore Diameter:

0.929 in

Overall Length:

10 in

Shank Diameter:

3/4 in

Shank Type:

Cylindrical with 3-Flat

Through Coolant (Yes/No):

Yes

Toolholder Type:

A-SCLC

Type:

Screw Clamping

: Country of Origin:
SE
Hand of Holder:
Right
Inscribed Circle:
3/8 in
Insert Compatibility:
CC .. 09T3 ../CC .. 3(2 . 5) .
Insert Screw:
FS2063 15 Torx® Plus
Insert Shape:
80 deg Diamond/Rhombic
Insert Thickness:
5/32 in
Manufacturer Name:
Walter
Material:
Steel
Minimum Bore Diameter:
0.929 in
Overall Length:
10 in
Shank Diameter:
3/4 in
Shank Type:
Cylindrical with 3-Flat
Through Coolant (Yes/No):
Yes
Toolholder Type:
A-SCLC
Type:
Screw Clamping
