Harvey Tool

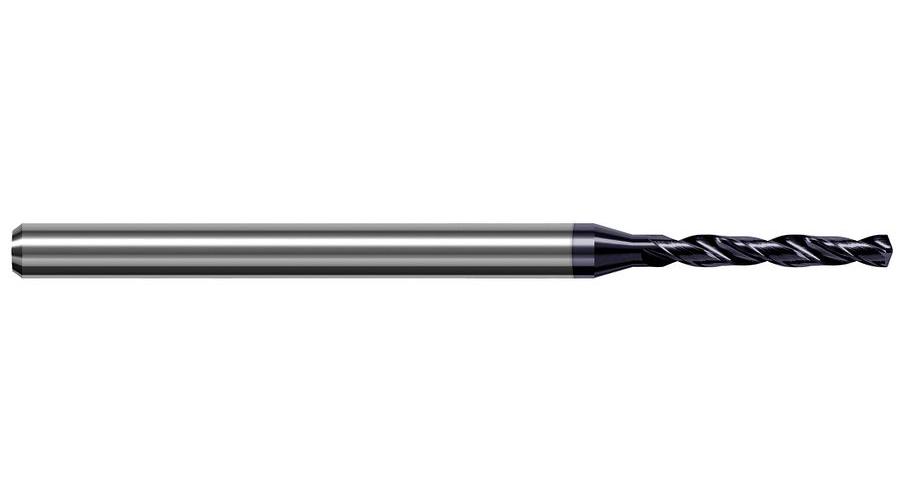

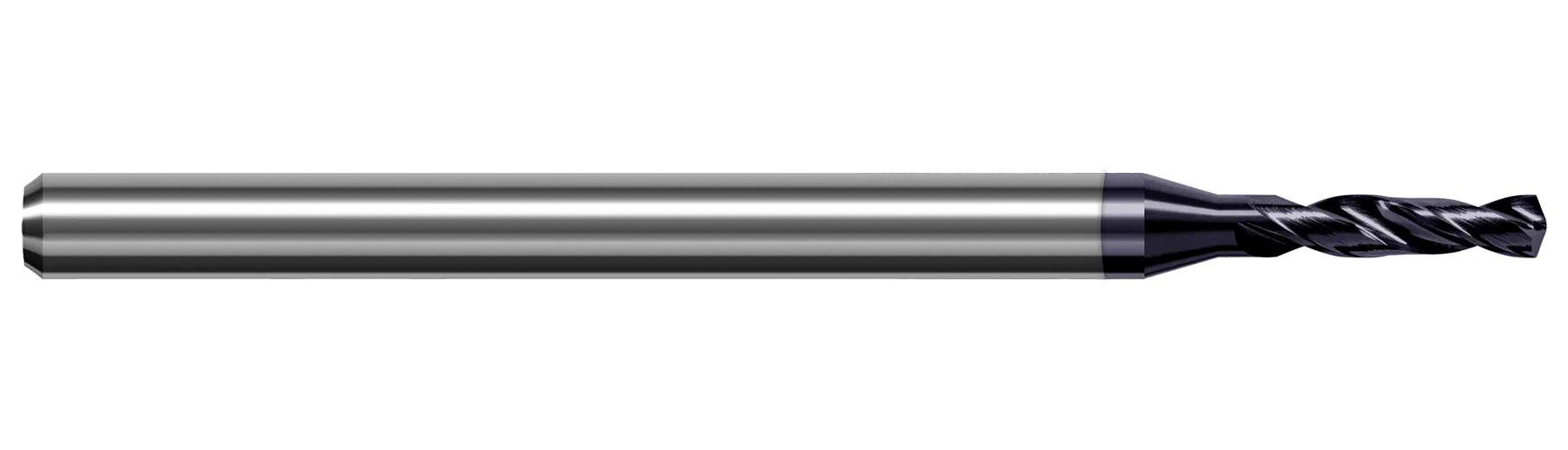

.0157 DIA PH SOLID DRILL 5X LOF ALTIN

drill mintr 0.4mm 0.0157in solid carbide

Stellar Part #HARVE BVT0157-C3

MFG Part #BVT0157-C3

MFG Name:Harvey Tool

Technical Specifications
Resources

Applicable Materials:

Cast Iron/Steel/Stainless Steel

Country of Origin:

Cutting Direction:

Right Hand

Finish:

AlTiN

Manufacturer Name:

Harvey Tool

Shank Type:

Cylindrical

Type:

High Performance

Cutting Edge Material:

Solid Carbide

Drill Diameter Measurement System:

Metric

Drill Size - Decimal Inch:

0.0157 in

Drill Size - Metric:

0.4 mm

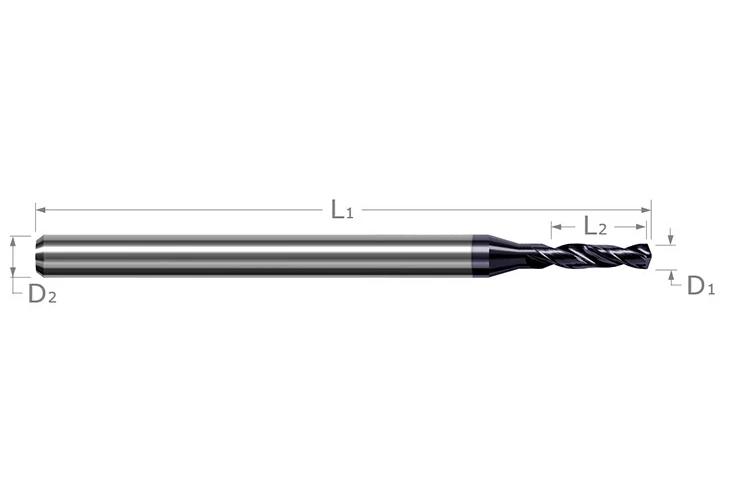

Flute Length:

0.106 in

Flute Type:

Helical

Material:

Solid Carbide

Number of Flutes:

Overall Length:

1.96 in

Point Angle:

140 deg

Point Type:

Drill

Shank Size:

3 mm

: Applicable Materials:
Cast Iron/Steel/Stainless Steel
Country of Origin:
US
Cutting Direction:
Right Hand
Finish:
AlTiN
Manufacturer Name:
Harvey Tool
Shank Type:
Cylindrical
Type:
High Performance
Cutting Edge Material:
Solid Carbide
Drill Diameter Measurement System:
Metric
Drill Size - Decimal Inch:
0.0157 in
Drill Size - Metric:
0.4 mm
Flute Length:
0.106 in
Flute Type:
Helical
Material:
Solid Carbide
Number of Flutes:
2
Overall Length:
1.96 in
Point Angle:
140 deg
Point Type:
Drill
Shank Size:
3 mm
