Allied Machine & Engineering AccuPort 432® AS5202-162-125F 2 Series Port Contour Cutter, SAE AS5202, 1.234 in Dia Pilot, AS5202-16-C5A Insert, 1-5/16-12 UNJ-3B Thread
1-5/16-12 unj-3b port contour cutter
Stellar Part #ALLIE AS5202-162-125F
MFG Part #AS5202-162-125F
MFG Name:Allied Machine & Engineering
Product Description:

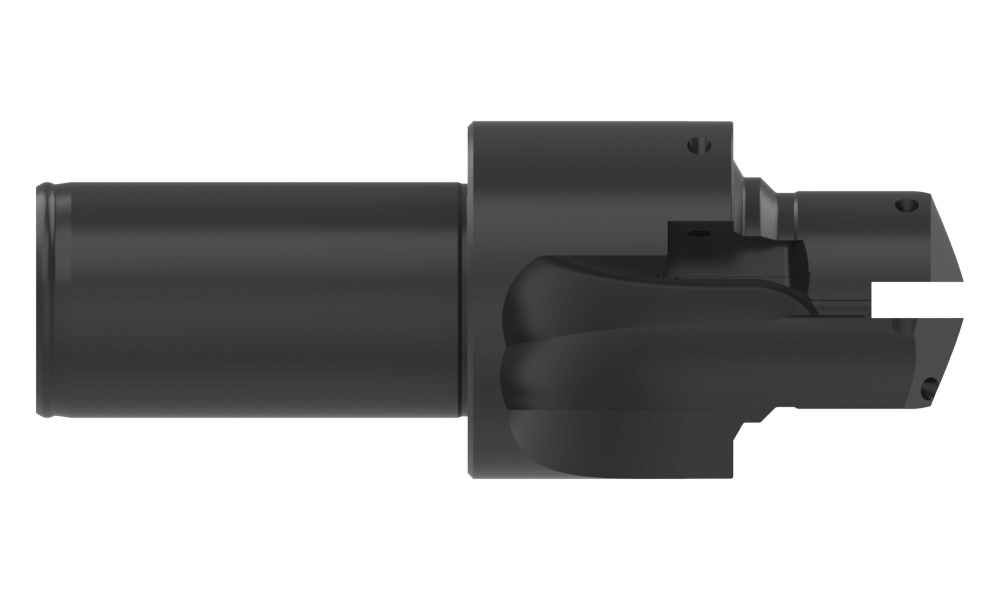

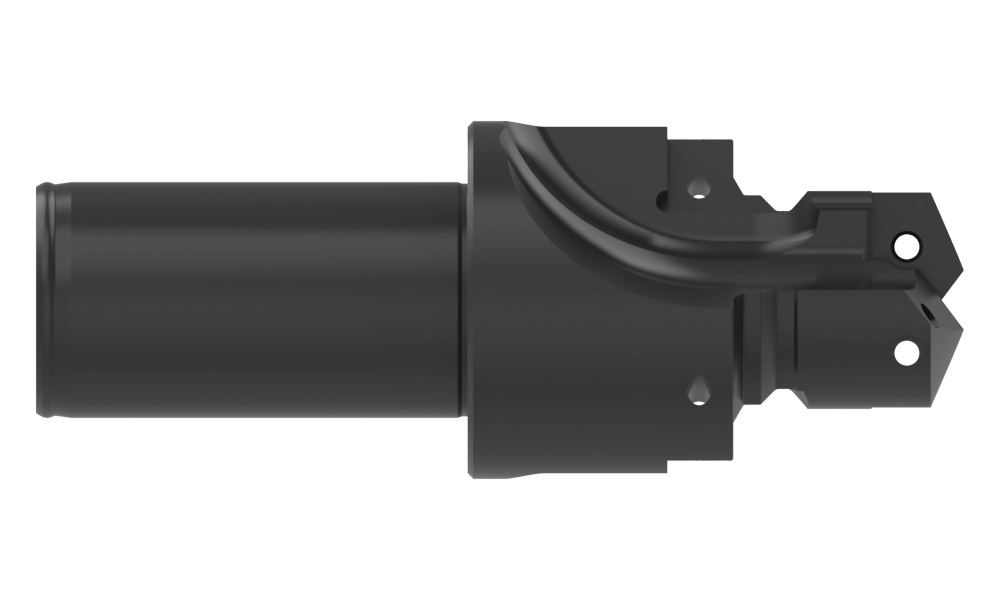

Allied Machine & Engineering AccuPort 432® Port Contour Cutter, Series: 2 Series, Port Standard Designation: SAE AS5202, 1-5/16-12 UNJ-3B, AS5202-16-C5A Insert, 2 Inserts, Tube Dash Number: 16, 60 deg Porting Angle, 1.92 in Spot Face Dia, 1.234 in Pilot Dia, 1.069 in Pilot Length, 1-1/4 in Shank Dia, 2.281 in Shank Length, 5.05 in Overall Length, Hardened Tool Steel
Login For Price
- Item Features
- Technical Specifications
- For ports and stud ends with straight threads and o-ring sealing
- 1.437 in L spotface to shoulder
- 1/8 in L seal pilot
- 1.336 in Dia seal pilot
- Eliminates the need for pre-drilling
- Allows for efficient set-up and production time
- Saves on tool cost
- Replaceable insert design eliminates regrinding and resetting
- Cylindrical shank
- 1.487 in Dia seal
- -16 tube dash size
- 2.765 in L tool reference
- For ports and stud ends with straight threads and o-ring sealing
- 1.437 in L spotface to shoulder
- 1/8 in L seal pilot
- 1.336 in Dia seal pilot
- Eliminates the need for pre-drilling
- Allows for efficient set-up and production time
- Saves on tool cost
- Replaceable insert design eliminates regrinding and resetting
- Cylindrical shank
- 1.487 in Dia seal
- -16 tube dash size
- 2.765 in L tool reference
- Insert Style:AS5202-16-C5AMaterial:Hardened Tool SteelOverall Length:5.05 inSeries:2 SeriesShank Length:2.281 inThread Size:1-5/16-12 UNJ-3BNumber of Inserts:2Pilot Diameter:1.234 inPilot Length:1.069 inPort Standard Designation:SAE AS5202Porting Angle:60 degShank Diameter:1-1/4 inSpot Face Diameter:1.92 inTube Dash Number:16
