Stellar Part #ALLIE J1926-05Z-063F
MFG Part #J1926-05Z-063F
MFG Name:Allied Machine & Engineering
Product Description:

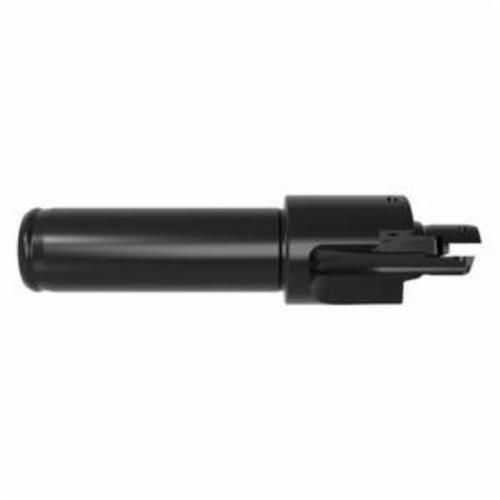

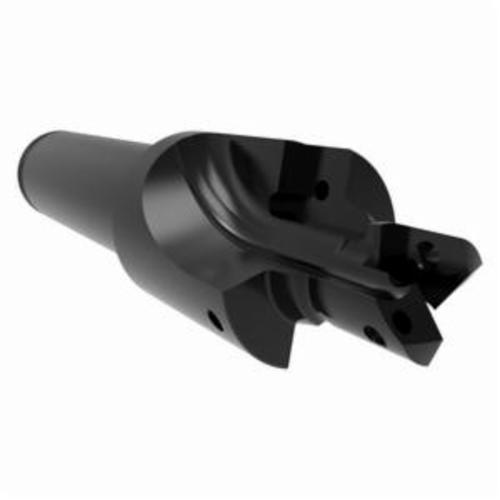

Allied Machine & Engineering J1926-05Z-063F Z Series Port Contour Cutter, SAE J-1926-1/ISO 11926-1/MS-16142, 0.453 in Dia Pilot, J1926-02 Insert, 1/2-20 UNF-2B Thread
Login For Price
- Item Features
- Technical Specifications
- For ports and stud ends with straight threads and o-ring sealing
- 1.527 in L tool reference
- 0.885 in L spotface to shoulder
- Eliminates the need for pre-drilling
- Allows for efficient set-up and production time
- Saves on tool cost
- Replaceable insert design eliminates regrinding and resetting
- Cylindrical shank
- 0.553 in Dia seal
- 0.106 in L seal
- -5 tube dash size
- For ports and stud ends with straight threads and o-ring sealing
- 1.527 in L tool reference
- 0.885 in L spotface to shoulder
- Eliminates the need for pre-drilling
- Allows for efficient set-up and production time
- Saves on tool cost
- Replaceable insert design eliminates regrinding and resetting
- Cylindrical shank
- 0.553 in Dia seal
- 0.106 in L seal
- -5 tube dash size
- Insert Style:J1926-02Material:Hardened Tool SteelNumber of Inserts:2Overall Length:3.402 inPilot Diameter:0.453 inPilot Length:0.551 inPort Standard Designation:SAE J-1926-1/ISO 11926-1/MS-16142Porting Angle:12 degSeries:Z SeriesShank Diameter:5/8 inShank Length:1-7/8 inSpot Face Diameter:0.926 inThread Size:1/2-20 UNF-2BTube Dash Number:-5
