Stellar Part #ALLIE J1926-122-125F
MFG Part #J1926-122-125F
MFG Name:Allied Machine & Engineering
Product Description:

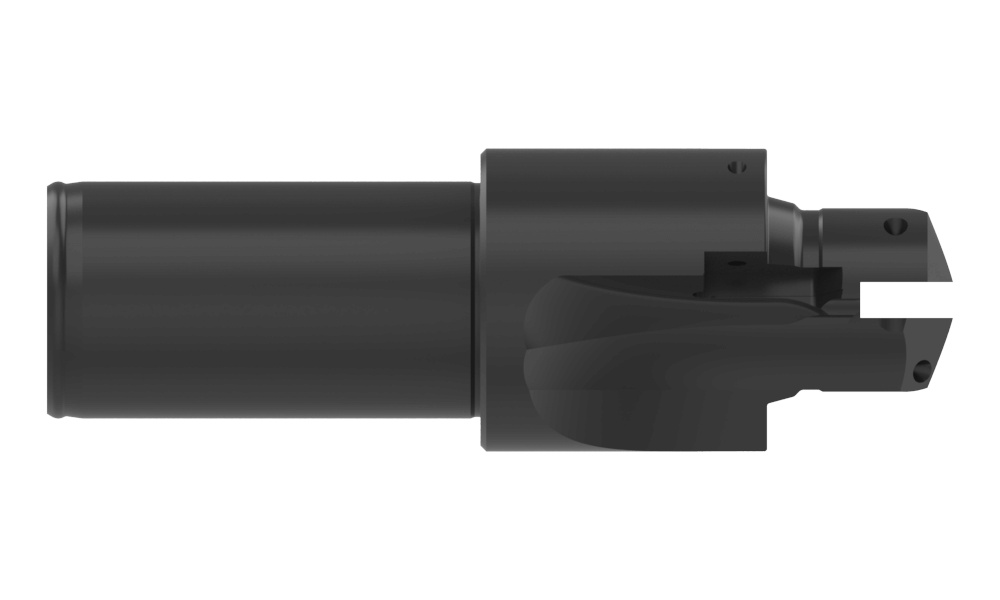

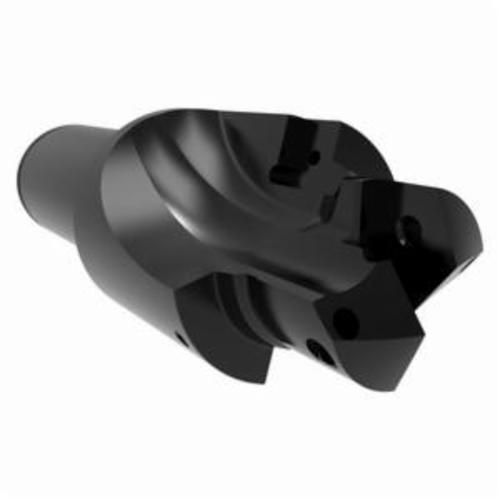

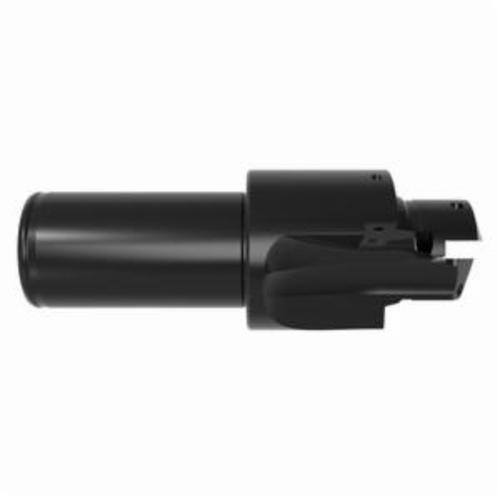

Allied Machine & Engineering AccuPort 432 J1926-122-125F 2 Series Port Contour Cutter, SAE J-1926-1/ISO 11926-1/MS-16142, 0.984 in Dia Pilot, J1926-08 Insert, 1-1/16-12 UN-2B Thread
Login For Price
- Item Features
- Technical Specifications
- For ports and stud ends with straight threads and o-ring sealing
- 2.64 in L tool reference
- 1.53 in L spotface to shoulder
- Eliminates the need for pre-drilling
- Allows for efficient set-up and production time
- Saves on tool cost
- Replaceable insert design eliminates regrinding and resetting
- Cylindrical shank
- 1.15 in Dia seal
- 0.138 in L seal
- -12 tube dash size
- For ports and stud ends with straight threads and o-ring sealing
- 2.64 in L tool reference
- 1.53 in L spotface to shoulder
- Eliminates the need for pre-drilling
- Allows for efficient set-up and production time
- Saves on tool cost
- Replaceable insert design eliminates regrinding and resetting
- Cylindrical shank
- 1.15 in Dia seal
- 0.138 in L seal
- -12 tube dash size
- Insert Style:J1926-08Material:Hardened Tool SteelNumber of Inserts:2Overall Length:4.921 inPilot Diameter:0.984 inPilot Length:0.906 inPort Standard Designation:SAE J-1926-1/ISO 11926-1/MS-16142Porting Angle:15 degSeries:2 SeriesShank Diameter:1-1/4 inShank Length:2.281 inSpot Face Diameter:1.655 inThread Size:1-1/16-12 UN-2BTube Dash Number:-12
