chuck collet tapered er16 16mm yes 28mm

Stellar Part #SANCO 5721840

MFG Part #5721840

MFG Name:Sandvik Coromant

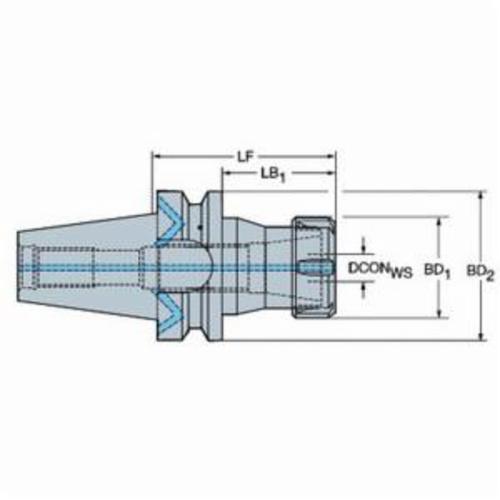

Sandvik Coromant 5721840 Collet Chuck, Tapered Shank, ER16 Collet System, 16 mm Chuck

ANSI Code:

A2B14-40 16 070

Chuck Size:

16 mm

Collet Nut Diameter:

28 mm

Collet System:

ER16

Head Length/Projection:

70 mm

ISO Code:

A2B14-40 16 070

Nose Diameter:

28 mm

Overall Length:

138.4 mm

Shank Type:

Tapered

Taper Size:

BT40

Through Coolant (Yes/No):

Yes

: ANSI Code:
A2B14-40 16 070
Chuck Size:
16 mm
Collet Nut Diameter:
28 mm
Collet System:
ER16
Head Length/Projection:
70 mm
ISO Code:
A2B14-40 16 070
Nose Diameter:
28 mm
Overall Length:
138.4 mm
Shank Type:
Tapered
Taper Size:
BT40
Through Coolant (Yes/No):
Yes
