Stellar Industrial | HOLDER LOCK SIDE 20MM WELDON TPR DIN40

content loaded

holder lock side 20mm weldon tpr din40

Stellar Part #SECCA 10007247

MFG Part #10007247

MFG Name:SECO TOOLS

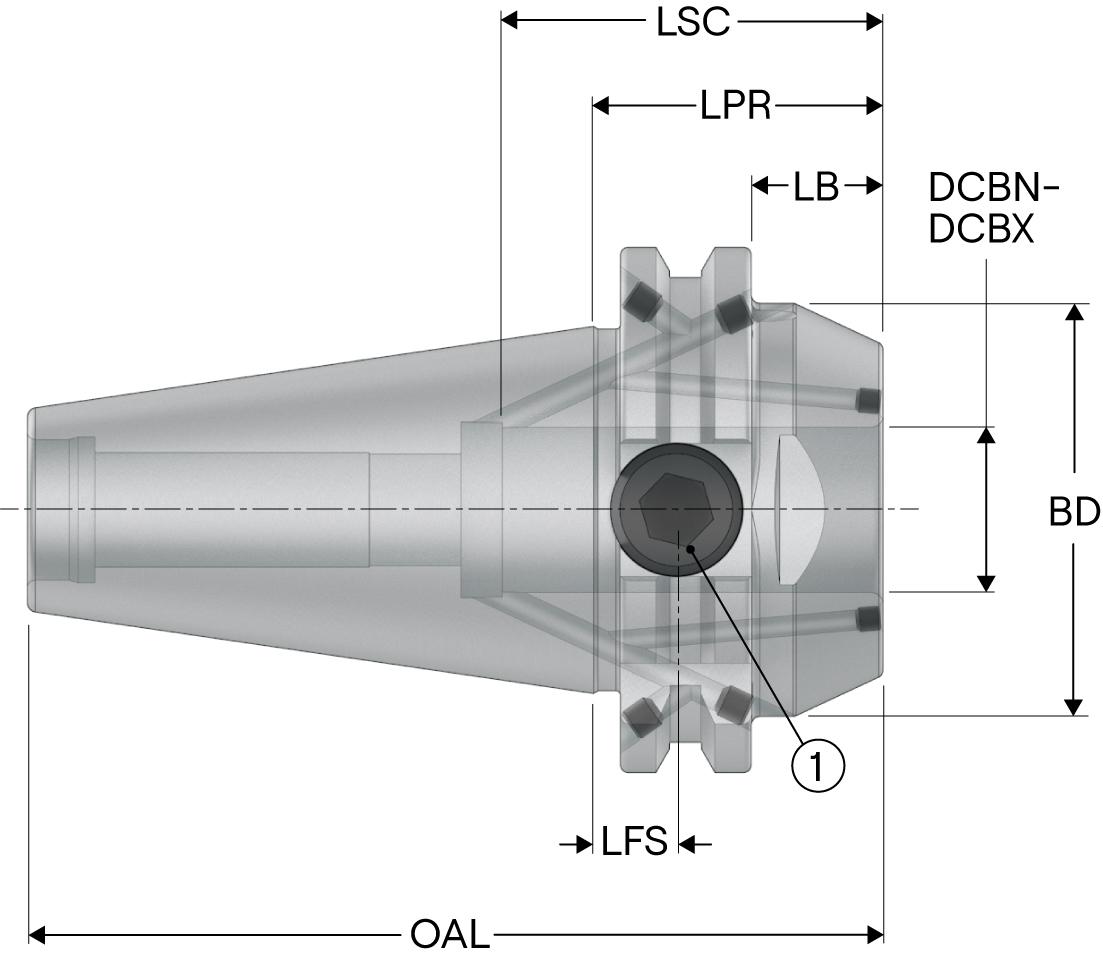

Seco 10007247 Side Lock Holder, 20 mm Dia Adapter/Shank, Tapered Shank, DIN40 Modular Connection, DIN40 Taper, 103.4 mm OAL

ANSI Code:

DIN40ADB-EM20-035-F5L1

ISO Code:

DIN40ADB-EM20-035-F5L1

Shank Length:

68.4 mm

Adapter/Shank Diameter:

20 mm

Body Diameter Workpiece Side:

50 mm

Modular Connection Size:

DIN40

Overall Length:

103.4 mm

Shank Type:

Tapered

System Size Machine Side:

DIN40 ADB

Taper Size:

DIN40

Through Coolant (Yes/No):

Yes

: ANSI Code:
DIN40ADB-EM20-035-F5L1
ISO Code:
DIN40ADB-EM20-035-F5L1
Shank Length:
68.4 mm
Adapter/Shank Diameter:
20 mm
Body Diameter Workpiece Side:
50 mm
Modular Connection Size:
DIN40
Overall Length:
103.4 mm
Shank Type:
Tapered
System Size Machine Side:
DIN40 ADB
Taper Size:
DIN40
Through Coolant (Yes/No):
Yes
