Stellar Part #LOUIS AM1014
MFG Part #AM1014
MFG Name:Louisville Ladder
Product Description:

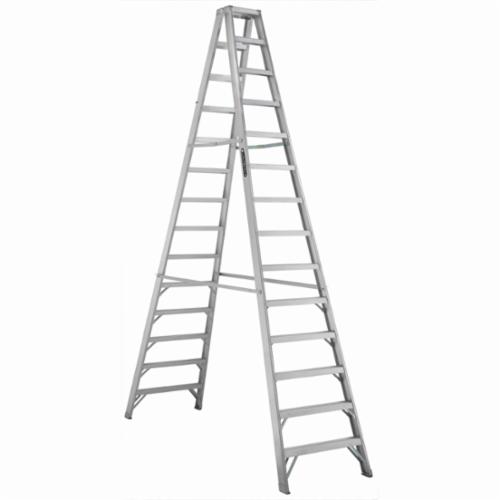

Louisville AM1014 AM1000 Type IA Twin Front Step Ladder, 14 ft H Ladder, 300 lb Load, 13 Steps, Aluminum, A14.2
Login For Price
- Item Features
- Technical Specifications
- Resources
- Twin ladder designed for use by one or two people
- Both sides of twin front ladders can be used simultaneously by one person plus materials
- Standard step rung
- 3 in step depth
- 11 ft 5 in H maximum standing
- 17 ft 10 in maximum reach
- 169-5/8 in H x 8-5/8 in D x 34-7/8 in closed dimension
- 29-1/2in closed cubic feet
- Duty rating maximum is per side
- Aluminum angle slip-resistant rubber feet with thick rubber tread on all four legs to provide sure footing
- Heavy gauge steel hinges
- Double rivet step construction-each step secured with six, large headed, solid aluminum rivets for maximum strength and reliability
- Spreader braces located inside of side rails help protect braces from getting hooked or abused in transit
- Massive aluminum side rails with wide, fully serrated aluminum steps on front and back for stability
- Spreader brace reinforcement plates - four key stress areas are reinforced with aluminum plates to prolong ladder life
- Rubber tread can be replaced when necessary to keep ladder safe
- Twin ladder designed for use by one or two people
- Both sides of twin front ladders can be used simultaneously by one person plus materials
- Standard step rung
- 3 in step depth
- 11 ft 5 in H maximum standing
- 17 ft 10 in maximum reach
- 169-5/8 in H x 8-5/8 in D x 34-7/8 in closed dimension
- 29-1/2in closed cubic feet
- Duty rating maximum is per side
- Aluminum angle slip-resistant rubber feet with thick rubber tread on all four legs to provide sure footing
- Heavy gauge steel hinges
- Double rivet step construction-each step secured with six, large headed, solid aluminum rivets for maximum strength and reliability
- Spreader braces located inside of side rails help protect braces from getting hooked or abused in transit
- Massive aluminum side rails with wide, fully serrated aluminum steps on front and back for stability
- Spreader brace reinforcement plates - four key stress areas are reinforced with aluminum plates to prolong ladder life
- Rubber tread can be replaced when necessary to keep ladder safe
- ANSI Code:A14.2Base Spread:114-3/4 inBottom Width:34-7/8 inLadder Height:14 ftLoad Capacity:300 lbMaterial:AluminumNumber of Steps:13Series:AM1000Tread:Anti-Slip/RubberType:Type IA Twin Front
