Starrett

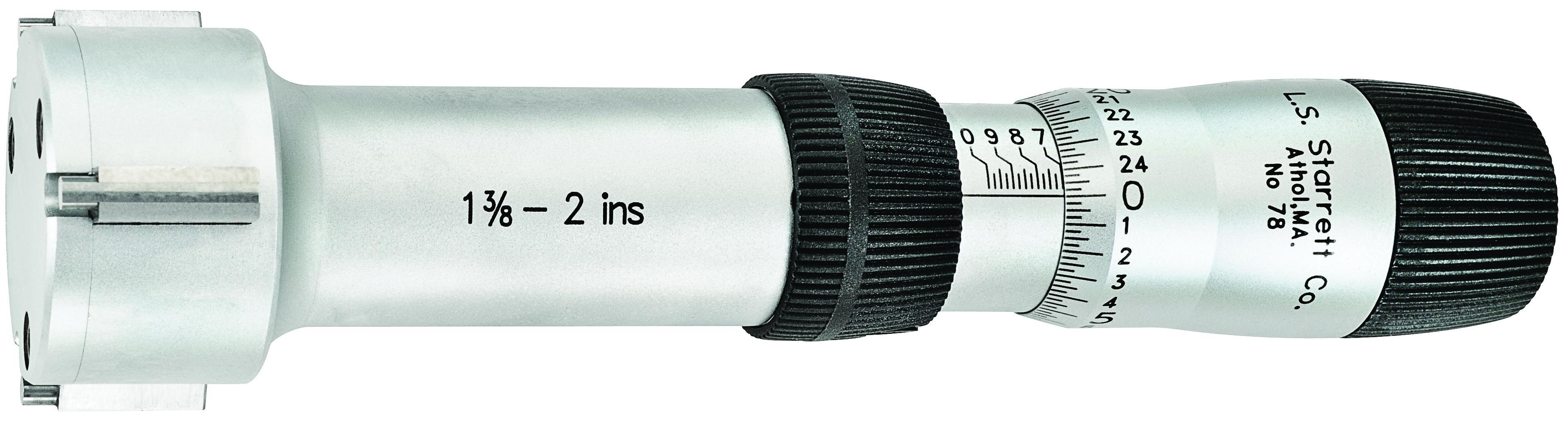

Starrett® 78XTZ-2 78XT Global Series® Mechanical Bore Gage, 1-3/8 to 2 in, Graduations: 0.00025 in, 3-1/16 in D Probe, Tungsten Carbide
gage bore 1-3/8-2in 0.00025in 3-1/16in
Stellar Part #STARR 78XTZ-2
MFG Part #78XTZ-2
MFG Name:L.S. Starrett
Product Description:
Starrett® Bore Gage, Mechanical, Series: 78XT Global Series®, 1-3/8 to 2 in, 0.00015 in Accuracy, Graduations: 0.00025 in, 0.0002 in Resolution, 3-1/16 in Probe Depth, Tungsten Carbide
Login For Price
- Item Features
- Technical Specifications
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 1-3/8 in setting ring diameter
- 3-point contact
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 1-3/8 in setting ring diameter
- 3-point contact
- Material:Tungsten CarbideResolution:0.0002 inSeries:78XT Global Series, 78XT Global Series®Type:MechanicalAccuracy:0.00015 inGraduations:0.00025 inMeasuring Range:1-3/8 to 2 inProbe Depth:3-1/16 in
