Starrett

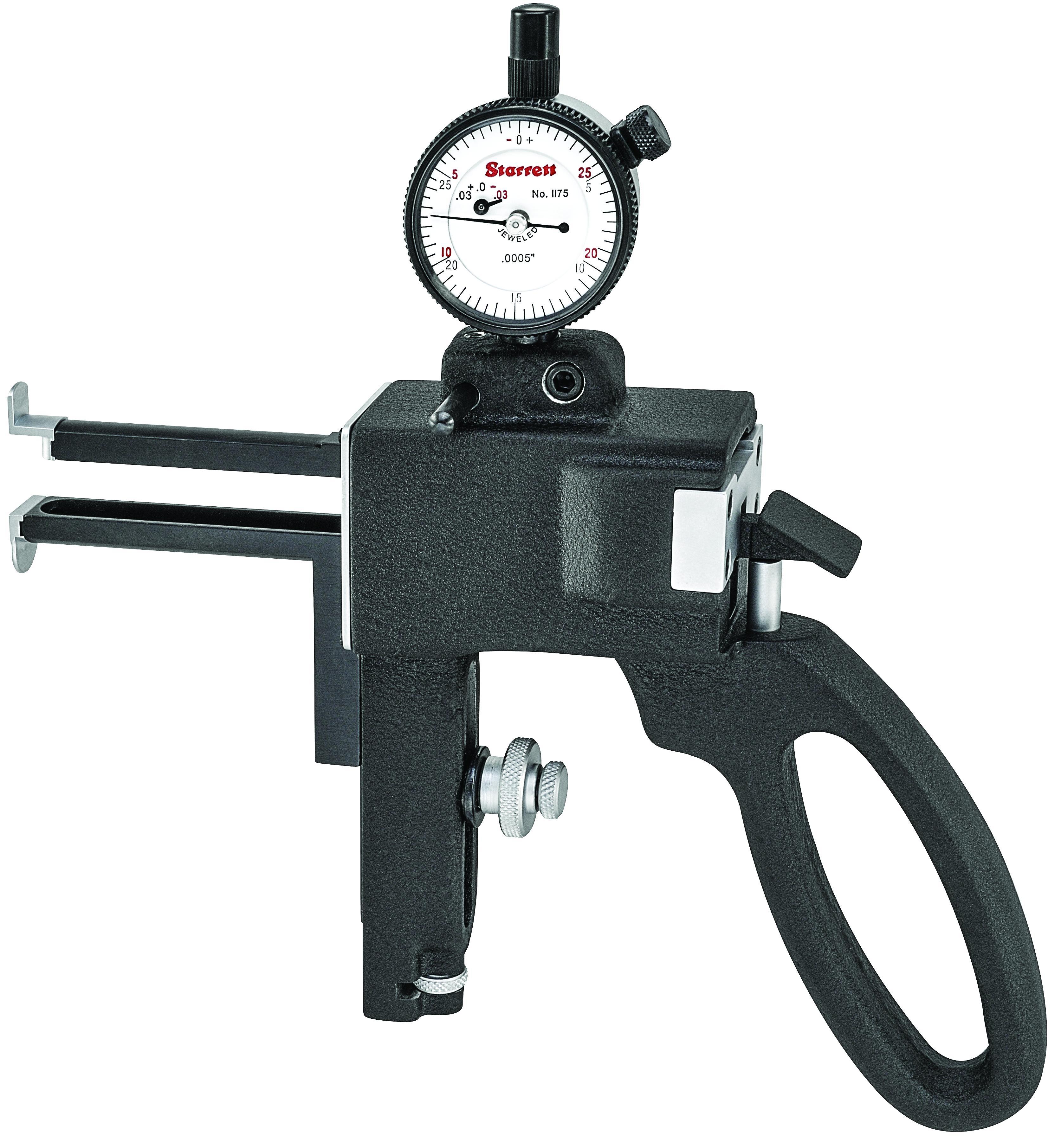

Starrett® 1175Z Dial Indicator Groove Gage, 3/8 to 6 in, Graduations: 0.0005 in, 0.024 in (Style 1-10), 0.034 in (Style 2-10), 0.051 in (Style 2-20) W x 0.1 in (Style 1-10), 0.14 in (Style 2-10), 0.265 in (Style 2-20) D Groove
gage grv indic dial 3/8-6in 0.0005in
Stellar Part #STARR 1175Z
MFG Part #1175Z
MFG Name:L.S. Starrett
Product Description:
Starrett® Dial Indicator Groove Gage, Series: 1175, 3/8 to 6 in, Graduations: 0.0005 in, 0.0005 in Resolution, 0.1 in (Style 1-10), 0.14 in (Style 2-10), 0.265 in (Style 2-20) Groove Depth, 0.024 in (Style 1-10), 0.034 in (Style 2-10), 0.051 in (Style 2-20) Groove Width, Styles 1-10, 2-10, 2-20 Contact Point, White Dial
Login For Price
- Item Features
- Technical Specifications
- The reference jaw can be mounted in two positions on the range adjusting bar
- The bar itself is also adjustable for greater or lesser range
- A fine adjustment screw and a lock are also provided
- Supplied with two sets of jaws, both readily interchangeable
- Three sets of contacts are furnished (styles 1-10, 2-10, 2-20) that can be attached to the ends of the jaws without replacing the entire jaw
- Contacts have flush ends so that grooves at the bottom of blind holes can be gaged
- Gage can be set with gage blocks or other methods such as micrometers, vernier calipers and ring gages
- The reference jaw can be mounted in two positions on the range adjusting bar
- The bar itself is also adjustable for greater or lesser range
- A fine adjustment screw and a lock are also provided
- Supplied with two sets of jaws, both readily interchangeable
- Three sets of contacts are furnished (styles 1-10, 2-10, 2-20) that can be attached to the ends of the jaws without replacing the entire jaw
- Contacts have flush ends so that grooves at the bottom of blind holes can be gaged
- Gage can be set with gage blocks or other methods such as micrometers, vernier calipers and ring gages
- Dial Color:WhiteResolution:0.0005 inSeries:1175Contact Point Type:Styles 1-10, 2-10, 2-20Graduations:0.0005 inGroove Depth:0.1 in (Style 1-10), 0.14 in (Style 2-10), 0.265 in (Style 2-20)Groove Width:0.024 in (Style 1-10), 0.034 in (Style 2-10), 0.051 in (Style 2-20)Measuring Range:3/8 to 6 in
