Allied Machine & Engineering

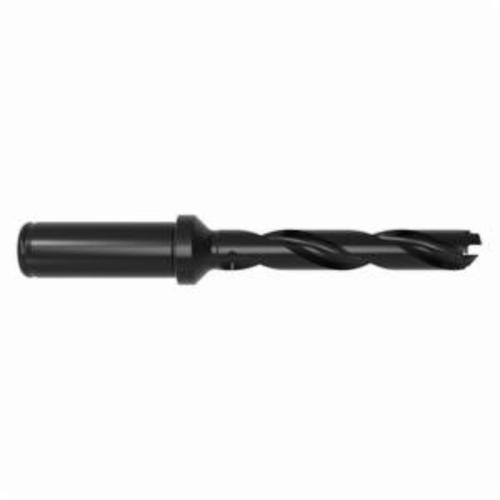

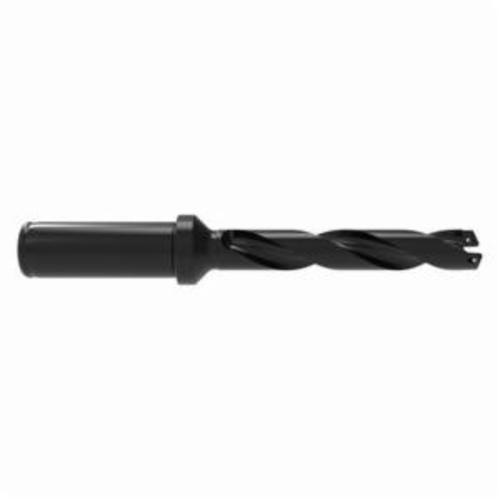

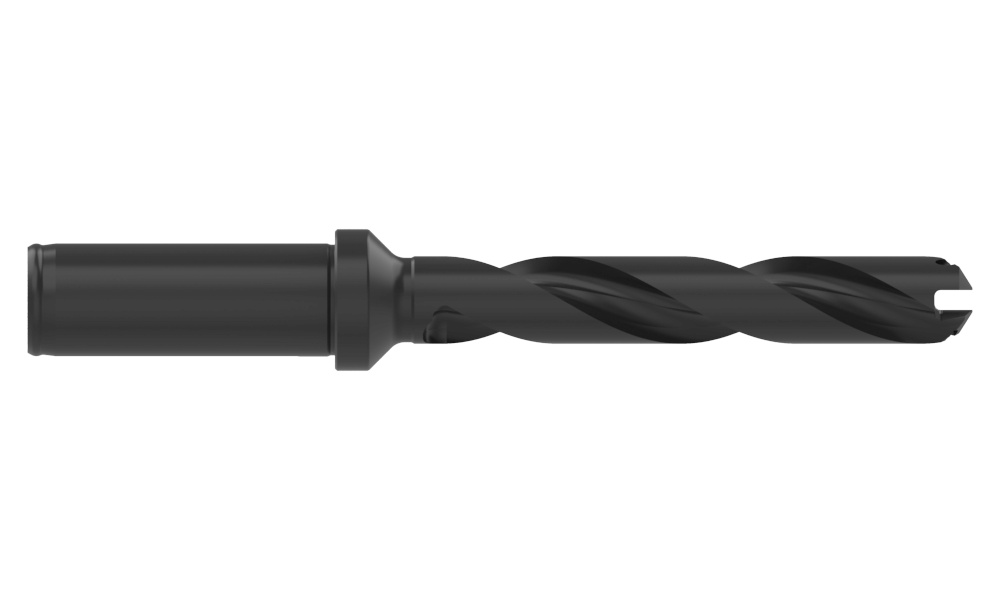

Allied Machine & Engineering GEN3SYS® XT 60515H-075C 15 Series Helical Flute Replaceable Standard Length Drill Insert Holder With Internal Through Coolant Channel, Flanged Shank, 3-5/32 in D Drill
holder insr dr cyl/flanged 3-5/32in 5xd
Stellar Part #ALLIE 60515H-075C
MFG Part #60515H-075C
MFG Name:Allied Machine & Engineering
Product Description:
Allied Machine & Engineering GEN3SYS® XT Drill Insert Holder, Helical Flute Replaceable Standard Length, Series: 15 Series, Drilling Capacity: 0.5906 to 0.6298 in, 3-5/32 in Drill Depth, 3/4 in Shank Dia, 2-1/32 in Shank Length, Flanged Shank, 6-1/4 in Overall Length, 4-7/32 in Drill Body Length, 5XD Drill Depth by Dia Ratio, 1/8 in NPT Rear Coolant Hole Thread
Login For Price
- Technical Specifications
- Resources
- Coolant Hole Thread:1/8 in NPT RearDrill Body Length:4-7/32 inDrill Depth:3-5/32 inDrill Depth by Diameter Ratio:5XDDrilling Capacity:0.5906 to 0.6298 inOverall Length:6-1/4 inSeries:15 SeriesShank Diameter:3/4 inShank Length:2-1/32 inShank Type:FlangedType:Helical Flute Replaceable Standard Length
