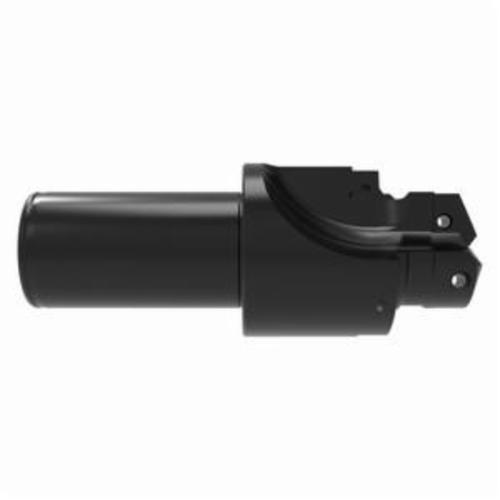

Allied Machine & Engineering AccuPort 432® AS5202-203-150F 3 Series Port Contour Cutter, SAE AS5202, 1.547 in Dia Pilot, AS5202-20-C5A Insert, 1-5/8-12 UNJ-3B Thread
cutter ctr port sae as5202 1.547in 2 20
Stellar Part #ALLIE AS5202-203-150F
MFG Part #AS5202-203-150F
MFG Name:Allied Machine & Engineering
Product Description:
Allied Machine & Engineering AccuPort 432® Port Contour Cutter, Series: 3 Series, Port Standard Designation: SAE AS5202, 1-5/8-12 UNJ-3B, AS5202-20-C5A Insert, 2 Inserts, Tube Dash Number: 20, 60 deg Porting Angle, 2.28 in Spot Face Dia, 1.547 in Pilot Dia, 1.121 in Pilot Length, 1-1/2 in Shank Dia, 2.688 in Shank Length, 5.88 in Overall Length, Hardened Tool Steel
Login For Price
- Technical Specifications
- Insert Style:AS5202-20-C5AMaterial:Hardened Tool SteelNumber of Inserts:2Overall Length:5.88 inPilot Diameter:1.547 inPilot Length:1.121 inPort Standard Designation:SAE AS5202Porting Angle:60 degSeries:3 SeriesShank Diameter:1-1/2 inShank Length:2.688 inSpot Face Diameter:2.28 inThread Size:1-5/8-12 UNJ-3BTube Dash Number:20
