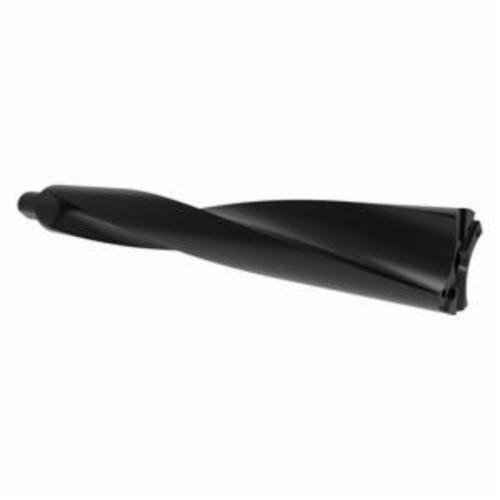

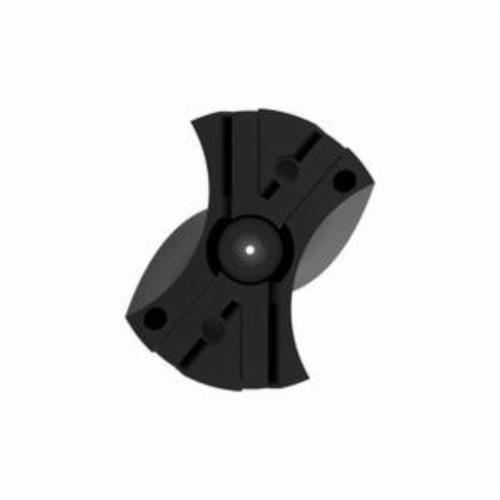

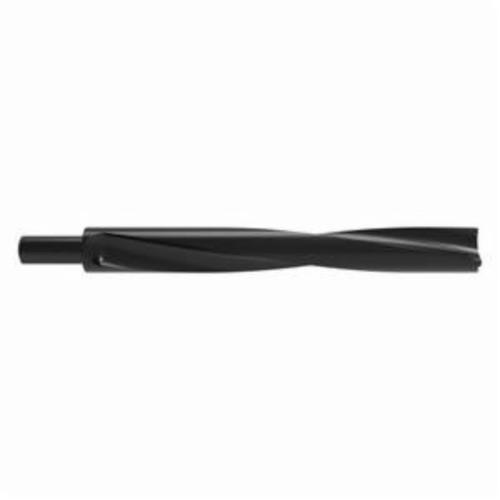

HOLDER INSR DR FLANGED 5-1/8IN W8308H
holder insr dr flanged 5-1/8in w8308h
Stellar Part #ALLIE W8308H-200F
MFG Part #W8308H-200F
MFG Name:Allied Machine & Engineering
Product Description:

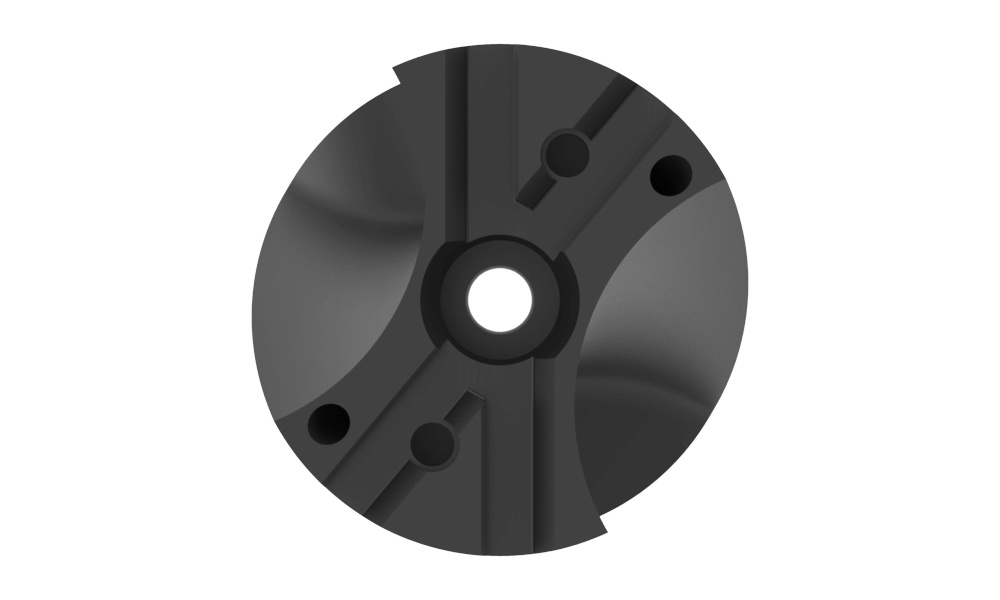

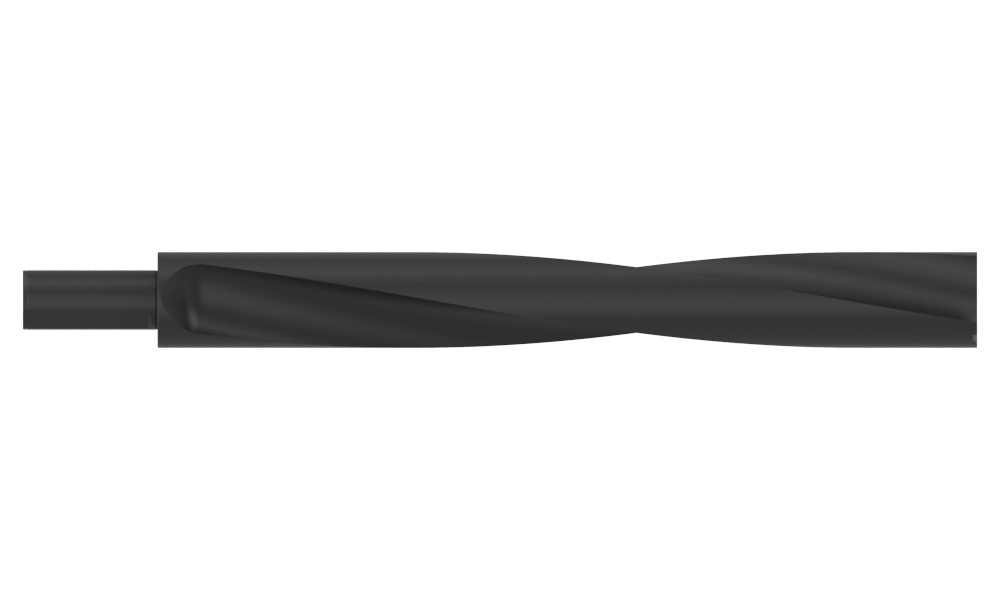

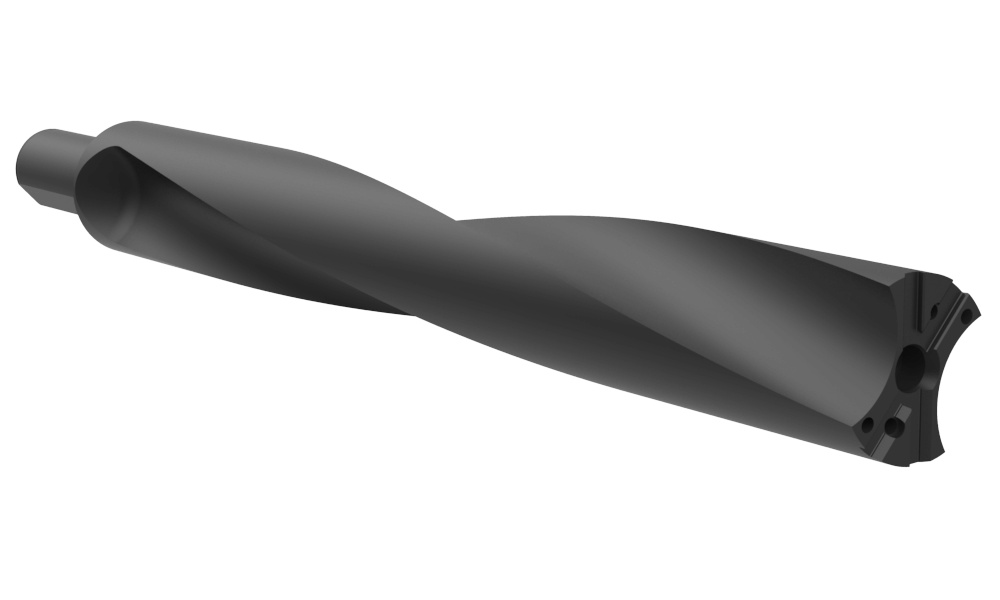

Allied Machine & Engineering W8308H-200F 83 Series Helical Flute Replaceable Drill Insert Holder With Internal Through Coolant Channel, Flanged Shank, 5-1/8 in D Drill, W8308H Tool Holder
Login For Price
- Item Features
- Technical Specifications
- Resources
- Used with either the GEN3SYS® or T-A® pilot insert to stabilize the tool through the cut, while utilizing the outboard carbide inserts to achieve the final cutting diameter
- Allows for higher spindle speeds and taking advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
- Utilizes standard GEN3SYS® and T-A® inserts
- Used with either the GEN3SYS® or T-A® pilot insert to stabilize the tool through the cut, while utilizing the outboard carbide inserts to achieve the final cutting diameter
- Allows for higher spindle speeds and taking advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
- Utilizes standard GEN3SYS® and T-A® inserts
- Coolant Hole Thread:1/4 in NPT RearDrill Body Length:29-35/64 inDrill Depth:5-1/8 inDrill Depth by Diameter Ratio:8XDDrilling Capacity:3.2674 to 3.5035 inOverall Length:34-3/64 inSeries:83 SeriesShank Diameter:2 inShank Length:4-1/2 inShank Type:FlangedTool Holder Style:W8308HType:Helical Flute Replaceable
