Stellar Part #ENERP RWH-121
MFG Part #RWH-121
MFG Name:Enerpac
Product Description:

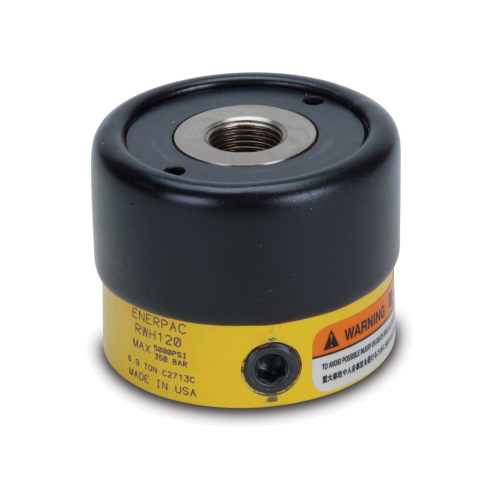

Enerpac® Hydraulic Cylinder, Hollow Plunger Single Acting Spring Return, Series: RWH, 13800 lb Capacity, 1.02 in Stroke Length, 3.22 in H Retract, Surface Mounting, 0.77 in Rod Diameter, 5000 psi Pressure, Steel Housing Material, 2.75 in OD x 4.24 in H
Login For Price
- Item Features
- Technical Specifications
- Load can be attached to either end of the cylinder, providing a choice of push or pull actions both realizing full cylinder capacity
- Very high cylinder capacities contained within small dimensions allow compact fixture designs
- Spring return operation allows for easy unloading of the workpiece
- Threaded collars and base mounting holes allow mounting flexibility, including table top surfaces and T-slots
- Nickel plated plungers, plunger wipers and internal venting prevent corrosion and support longer operation life on all HCS models
- Cylinders are regularly used for upgrading mechanical clamping to faster and easier hydraulic clamping
- For high force push and pull applications on and around the fixture
- Load can be attached to either end of the cylinder, providing a choice of push or pull actions both realizing full cylinder capacity
- Very high cylinder capacities contained within small dimensions allow compact fixture designs
- Spring return operation allows for easy unloading of the workpiece
- Threaded collars and base mounting holes allow mounting flexibility, including table top surfaces and T-slots
- Nickel plated plungers, plunger wipers and internal venting prevent corrosion and support longer operation life on all HCS models
- Cylinders are regularly used for upgrading mechanical clamping to faster and easier hydraulic clamping
- For high force push and pull applications on and around the fixture
- Capacity:13800 lbDimensions:2.75 in OD x 4.24 in HHousing Material:SteelMounting Type:SurfacePressure Rating:5000 psiRetract:3.22 in HRod Diameter:0.77 inSeries:RWHStroke Length:1.02 inType:Hollow Plunger Single Acting Spring Return
