Stellar Part #GUHRI 206-5.16
MFG Part #9002060051600
MFG Name:Guhring
Product Description:

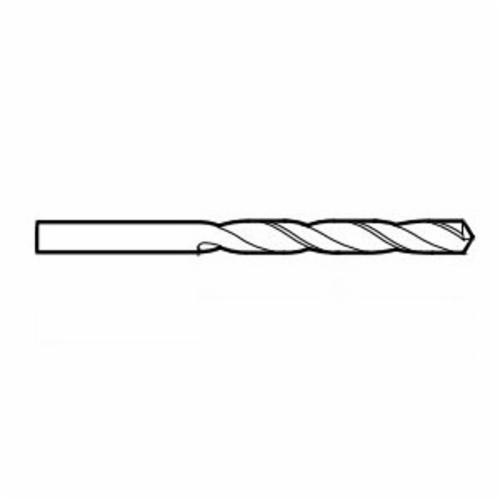

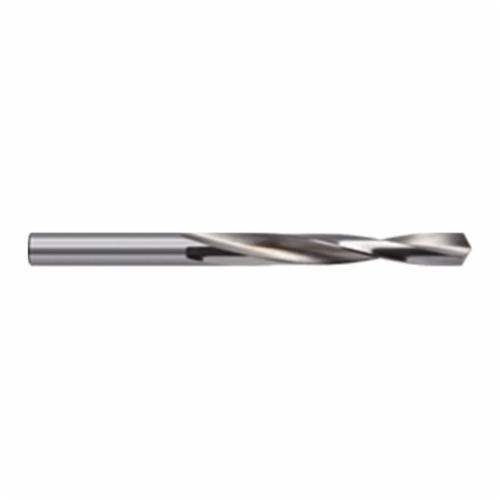

Guhring 9002060051600 206 Type H General Purpose Standard Jobber Length Drill Bit, 5.16 mm Drill - Metric, 0.2031 in Drill - Decimal Inch, 118 deg Point, HSS, Bright
Login For Price
- Item Features
- Technical Specifications
- Resources
- The slow spiral is best suited for horizontal drilling applications to improve chip evacuation
- External coolant
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and non-ferrous materials
- Bright provides a smooth, polished finish on the tool
- It increases chip flow in softer materials such as aluminum, wood and plastic
- Spiral flutes are constructed with a higher flute angle to remove chips more easily
- Cylindrical shank design
- Cone relieved grinding
- H8 tolerance on cut/shank diameter
- 34 in L shank
- The slow spiral is best suited for horizontal drilling applications to improve chip evacuation
- External coolant
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and non-ferrous materials
- Bright provides a smooth, polished finish on the tool
- It increases chip flow in softer materials such as aluminum, wood and plastic
- Spiral flutes are constructed with a higher flute angle to remove chips more easily
- Cylindrical shank design
- Cone relieved grinding
- H8 tolerance on cut/shank diameter
- 34 in L shank
- Applicable Materials:Brass, Bronze, Magnesium and PlasticCutting Depth:5XDCutting Direction:Right HandCutting Edge Material:HSSDrill Diameter Measurement System:Metric/ImperialDrill Size - Decimal Inch:0.2031 inDrill Size - Metric:5.16 mmFinish:BrightFlute Length:52 mmFlute Type:Right SpiralMaterial:HSSNumber of Flutes:2Overall Length:86 mmPoint Angle:118 degPoint Type:Cone ReliefSeries:206Shank Size:5.16 mmShank Type:StraightThrough Coolant (Yes/No):NoType:Type H General Purpose Standard
