Guhring
SLEEVE CHUCK RDCN 4.93MM 12MM 16.5MM STL
sleeve chuck rdcn 4.93mm 12mm 16.5mm stl
Stellar Part #GUHRI 4606-4.912
MFG Part #9046060049120
MFG Name:Guhring
Product Description:

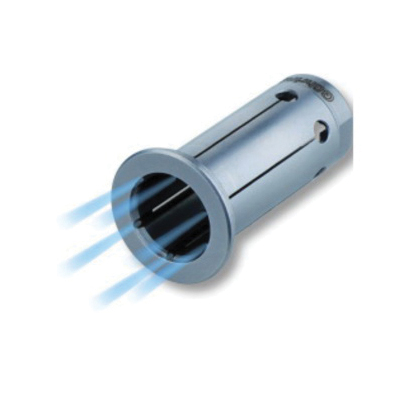

Guhring 9046060049120 4606 Reduction Chuck Sleeve, 4.93 mm ID x 12 mm OD, 16.5 mm Dia Head, For Use With Hydraulic Synchro Tapping Chucks
Login For Price
- Item Features
- Technical Specifications
- Resources
- Clamping for tool shank tolerance h6 to h9
- Positive drive of reduction bush in guhrosync synchro chuck
- With coolant slots for peripheral cooling, therefore process and tool life improvement
- Coiled swarf is consistently washed away
- Position setting screw on the shank of the tap
- Setting screw enables 3 mm length readjustment
- Guhrojet coolant
- Clamping for tool shank tolerance h6 to h9
- Positive drive of reduction bush in guhrosync synchro chuck
- With coolant slots for peripheral cooling, therefore process and tool life improvement
- Coiled swarf is consistently washed away
- Position setting screw on the shank of the tap
- Setting screw enables 3 mm length readjustment
- Guhrojet coolant
- Head Diameter:16.5 mmInside Diameter:4.93 mmLength Under Head/Projection:29 mmMaterial:SteelOutside Diameter:12 mmSeries:4606Suitable For Use With:Hydraulic Synchro Tapping Chucks
