Stellar Part #GUHRI 651-2.95
MFG Part #9006510029500
MFG Name:Guhring
Product Description:

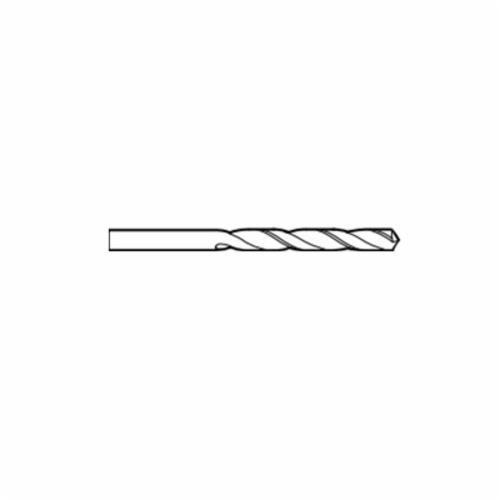

Guhring 9006510029500 651 Type N General Purpose Standard Jobber Length Drill Bit, #32 Drill - Wire, 0.116 in Drill - Decimal Inch, 118 deg Point, HSS, TiN Coated
Login For Price
- Item Features
- Technical Specifications
- Resources
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and non-ferrous materials
- External coolant
- Form a Web-thinned >2.36 mm dia
- Titanium nitride (TiN) is a multi-purpose coating that increases chip flow in softer materials
- Heat and hardness resistance allows the tool to run at higher speeds than uncoated tools
- Titanium aluminum nitride (tialn) has a higher hardness than TiN and TiCN, it is extremely heat resistant and commonly used for high speed applications on stainless steels, nickel and titanium alloys
- Spiral flutes are constructed with a higher flute angle to remove chips more easily
- Cylindrical shank design
- Cone relieved grinding
- H8 tolerance on cut/shank diameter
- 28 mm L shank
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and non-ferrous materials
- External coolant
- Form a Web-thinned >2.36 mm dia
- Titanium nitride (TiN) is a multi-purpose coating that increases chip flow in softer materials
- Heat and hardness resistance allows the tool to run at higher speeds than uncoated tools
- Titanium aluminum nitride (tialn) has a higher hardness than TiN and TiCN, it is extremely heat resistant and commonly used for high speed applications on stainless steels, nickel and titanium alloys
- Spiral flutes are constructed with a higher flute angle to remove chips more easily
- Cylindrical shank design
- Cone relieved grinding
- H8 tolerance on cut/shank diameter
- 28 mm L shank
- Applicable Materials:Free Cutting Steels, Tool Steels, Cast Iron, Brass, Bronze, Copper, Magnesium and PlasticCutting Depth:5XDCutting Direction:Right HandCutting Edge Material:HSSDrill Diameter Measurement System:ImperialDrill Size - Decimal Inch:0.116 inDrill Size - Wire:#32Finish:TiN CoatedFlute Length:33 mmFlute Type:Right SpiralMaterial:HSSNumber of Flutes:2Overall Length:61 mmPoint Angle:118 degPoint Type:Cone ReliefSeries:651Shank Size:2.95 mmShank Type:StraightThrough Coolant (Yes/No):NoType:Type N General Purpose Standard
