Guhring

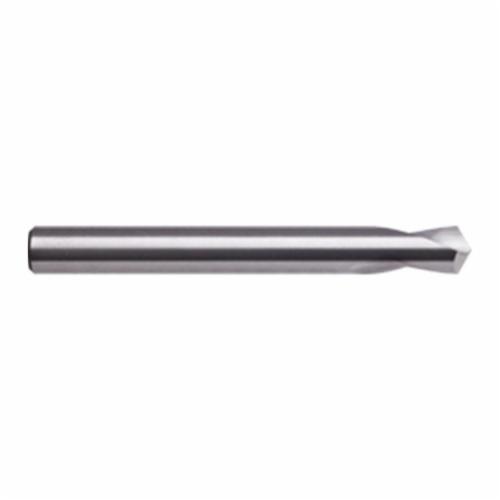

DRILL TWIST SHORT SPOT 5/8IN 115MM BRT
drill twist short spot 5/8in 115mm brt
Stellar Part #GUHRI 724-15.87
MFG Part #9007240158700
MFG Name:Guhring
Product Description:
Guhring 9007240158700 Type N NC Spot Short Twist Drill, 5/8 in Dia, 115 mm OAL, Carbide, Bright
Login For Price
- Item Features
- Technical Specifications
- Resources
- NC spot drills are high precision drills designed specifically for creating an accurate hole location for a secondary drilling operation
- NC spot drills due not have body clearance and are not designed to drill greater than the depth of the point angle
- It is extremely heat-resistant
- Used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Bright provides a smooth, polished finish on the tool, it increases chip flow in softer materials such as aluminum, wood and plastic
- Cylindrical shank design
- H6 tolerance on cut/shank diameter
- 77.5 mm L Shank
- External coolant
- NC spot drills are high precision drills designed specifically for creating an accurate hole location for a secondary drilling operation
- NC spot drills due not have body clearance and are not designed to drill greater than the depth of the point angle
- It is extremely heat-resistant
- Used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Bright provides a smooth, polished finish on the tool, it increases chip flow in softer materials such as aluminum, wood and plastic
- Cylindrical shank design
- H6 tolerance on cut/shank diameter
- 77.5 mm L Shank
- External coolant
- Applicable Materials:Cast Iron, Non-Ferrous Metals, Plastic and Other Tough-to-Machine MaterialsCutting Depth:37.5 mmCutting Direction:Right HandCutting Edge Material:CarbideDiameter:5/8 inFinish:BrightFlute Length:37.5 mmMaterial:CarbideNumber of Flutes:2Overall Length:115 mmPoint Angle:120 degPoint Type:FacetedSeries:724Shank Type:Standard/StraightType:Type N
