Guhring

tap forming thd m14x2 d13/d14 metric

Stellar Part #GUHRI 923-M14-6X

MFG Part #9009230140000

MFG Name:Guhring

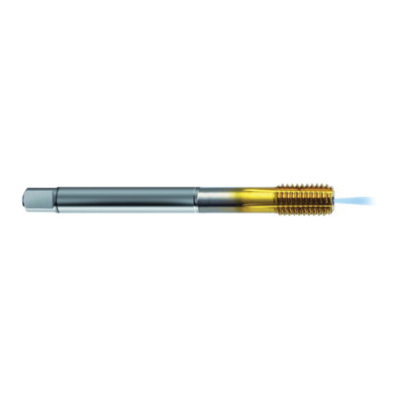

Guhring 9009230140000 923 Straight Standard Thread Forming Tap With Axial Coolant, M14x2 Thread, D13/D14 Thread Limit

Chamfer Type:

Semi-Bottoming

Class of Fit:

6HX

Cutting Direction:

Right Hand

Finish/Coating:

TiN Coated

Material:

HSS-E

Measurement System:

Metric

Number of Flutes:

Overall Length:

110 mm

Series:

923

Shank Diameter:

11 mm

Square Size:

9 mm

Tap Drill Size:

13.05 to 13.02 mm

Thread Limit:

D13/D14

Thread Size:

M14x2

Type:

Straight Standard

: Chamfer Type:
Semi-Bottoming
Class of Fit:
6HX
Cutting Direction:
Right Hand
Finish/Coating:
TiN Coated
Material:
HSS-E
Measurement System:
Metric
Number of Flutes:
6
Overall Length:
110 mm
Series:
923
Shank Diameter:
11 mm
Square Size:
9 mm
Tap Drill Size:
13.05 to 13.02 mm
Thread Limit:
D13/D14
Thread Size:
M14x2
Type:
Straight Standard
