KYOCERA

INSERT TURN WNMG P 432 TRIGON 08 NEG STL

insert turn wnmg p 432 trigon 08 neg stl

Stellar Part #KYOCE TAC08551

MFG Part #TAC08551

MFG Name:KYOCERA Precision Tools

Product Description:

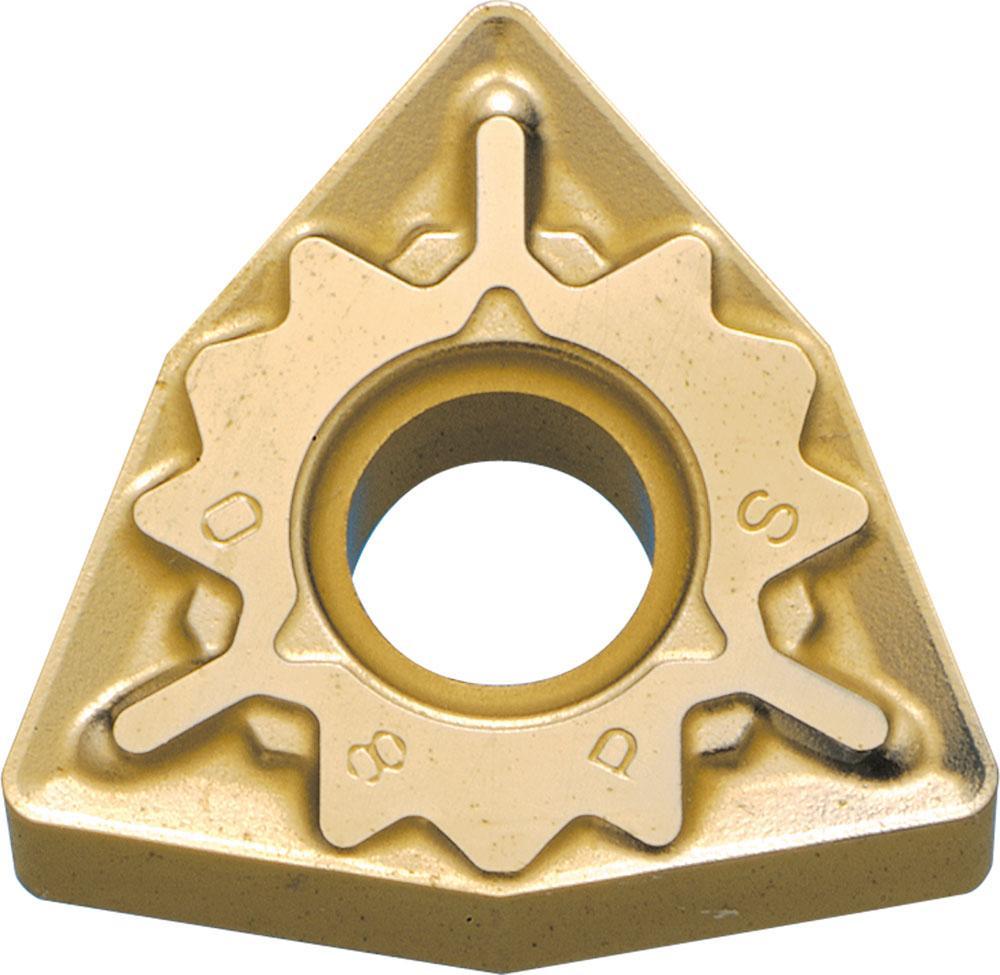

KYOCERA TAC08551 2-Sided Turning Insert, ANSI Code: WNMG432PS CA525, WNMG Insert, Material Grade: P, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: CA525

Technical Specifications
Resources

ANSI Code:

WNMG432PS CA525

Chipbreaker:

Corner Radius:

1/32 in

Cutting Direction:

Neutral

Finish:

CVD-TiCN/Al2O3/TiN Coated

For Use On:

Steel

Hole Diameter:

0.203 in

Included Angle:

80 deg

Inscribed Circle:

1/2 in

Insert Size:

432

Insert Style:

WNMG

ISO Code:

WNMG080408PS CA525

Manufacturer's Grade:

CA525

Material:

Carbide

Material Grade:

Rake:

Negative

Relief Angle:

0 deg

Seat Size:

Shape:

Trigon

Thickness:

3/16 in

Type:

2-Sided

: ANSI Code:
WNMG432PS CA525
Chipbreaker:
PS
Corner Radius:
1/32 in
Cutting Direction:
Neutral
Finish:
CVD-TiCN/Al2O3/TiN Coated
For Use On:
Steel
Hole Diameter:
0.203 in
Included Angle:
80 deg
Inscribed Circle:
1/2 in
Insert Size:
432
Insert Style:
WNMG
ISO Code:
WNMG080408PS CA525
Manufacturer's Grade:
CA525
Material:
Carbide
Material Grade:
P
Rake:
Negative
Relief Angle:
0 deg
Seat Size:
08
Shape:
Trigon
Thickness:
3/16 in
Type:
2-Sided
