Stellar Part #LOUIS AE2224
MFG Part #AE2224
MFG Name:Louisville Ladder
Product Description:

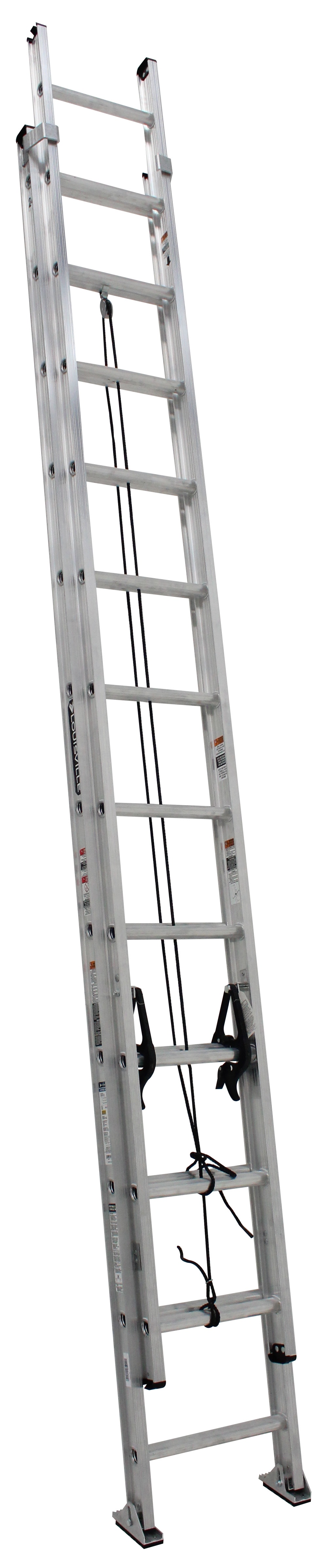

Louisville AE2224 AE2000 Multi-Section Extension Ladder, 24 ft OAL, 300 lb Load, 12 in Adjustable Increments, Aluminum, Type IA
Login For Price
- Item Features
- Technical Specifications
- Resources
- Features D-shaped rungs that are fully serrated for a slip resistant surface
- 16 ft 11 in maximum standing height
- 23 ft 6 in maximum reach
- 6-1/2 in approximate spread
- 17-4/5 in W bottom
- 10 cu-ft closed
- 149-1/8 in H x 17-4/5 in W x 6-1/2 in D closed
- QuickLatch equipped runglock provides easier method of securing fly base sections when extended, one finger operation
- Swivel safety shoe, heavy duty plated steel shoes with thick rubber tread, shoe can be used with tread down or in spike position
- It has mar-resistant rail end caps to protect landing surfaces and provide longer life
- Include two extra heavy duty slide guides at the top of the base section combined with a stop on the fly section to prevent over extending the ladder
- Modified I-Beam, side rails are full 3 in extrusions shaped into a modified I-Beam for strength and light weight, interlocking rails
- 1-1/2 in D step
- 3 in D rail
- 5-1/4 in H stack
- Features D-shaped rungs that are fully serrated for a slip resistant surface
- 16 ft 11 in maximum standing height
- 23 ft 6 in maximum reach
- 6-1/2 in approximate spread
- 17-4/5 in W bottom
- 10 cu-ft closed
- 149-1/8 in H x 17-4/5 in W x 6-1/2 in D closed
- QuickLatch equipped runglock provides easier method of securing fly base sections when extended, one finger operation
- Swivel safety shoe, heavy duty plated steel shoes with thick rubber tread, shoe can be used with tread down or in spike position
- It has mar-resistant rail end caps to protect landing surfaces and provide longer life
- Include two extra heavy duty slide guides at the top of the base section combined with a stop on the fly section to prevent over extending the ladder
- Modified I-Beam, side rails are full 3 in extrusions shaped into a modified I-Beam for strength and light weight, interlocking rails
- 1-1/2 in D step
- 3 in D rail
- 5-1/4 in H stack
- Adjustable Increments:12 inANSI Code:Type IALoad Capacity:300 lbMaterial:AluminumMaximum Working Length:21 ftOutside Shoe Base Width:17-13/16 inOverall Length:24 ftRail Type:Conductive/Modified I-BeamSection Length:12 ftSeries:AE2000Shoe Type:Swivel SafetyType:Multi-Section
