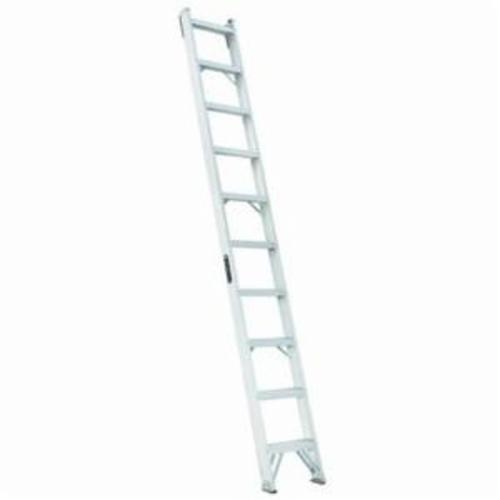

Louisville® AH1012 AH1000 Shelf Extension Ladder, 12 ft OAL, 300 lb Load, Aluminum, Type IA

Louisville® AH1012 AH1000 Shelf Extension Ladder, 12 ft OAL, 300 lb Load, Aluminum, Type IA

ladder master shelf der 12ft alum

Stellar Part #LOUIS AH1012

MFG Part #AH1012

MFG Name:Louisville Ladder

Login For Availability

Product Description:

Louisville® Shelf Extension Ladder, Series: AH1000, 12 ft Overall Length, ANSI Code: Type IA, 300 lb, Aluminum, 9 ft 6 in Maximum Working Length, 12 ft Section Length, 15-1/8 in Outside Shoe Base Width, Rubber Bumper Shoe
Login For Price
  • Two pair of heavy duty steel gussets support bottom step
  • 3-1/8 in rail depth
  • 3-1/2 in closed cubic feet
  • 16 ft 1 in maximum reach
  • 143-3/8 in H x 15-2/3 in W x 3-1/2 in D closed
  • 15-2/3 in bottom width
  • 3-1/2 in base spread
  • 12 steps
  • Aluminum angle feet with thick rubber tread on both legs to provide sure footing and stability
  • Rubber bumper for stability
  • Steps are level when the ladder is set at 18 deg
  • Rubber bumper - ladder has parallel sides with thick rubber bumpers extending 6-inch down the side rails for protection of landing surface and stability
  • Double rivet step construction - each step secured with six, large headed, semi-tubular steel rivets for maximum strength
  • Ideal for getting to shelves with narrow aisles when standard ladders will not fit
  • Standard step rung
  • 3 in step depth
