Stellar Part #MILWA 2206-20
MFG Part #2206-20
MFG Name:Milwaukee Tool
Product Description:

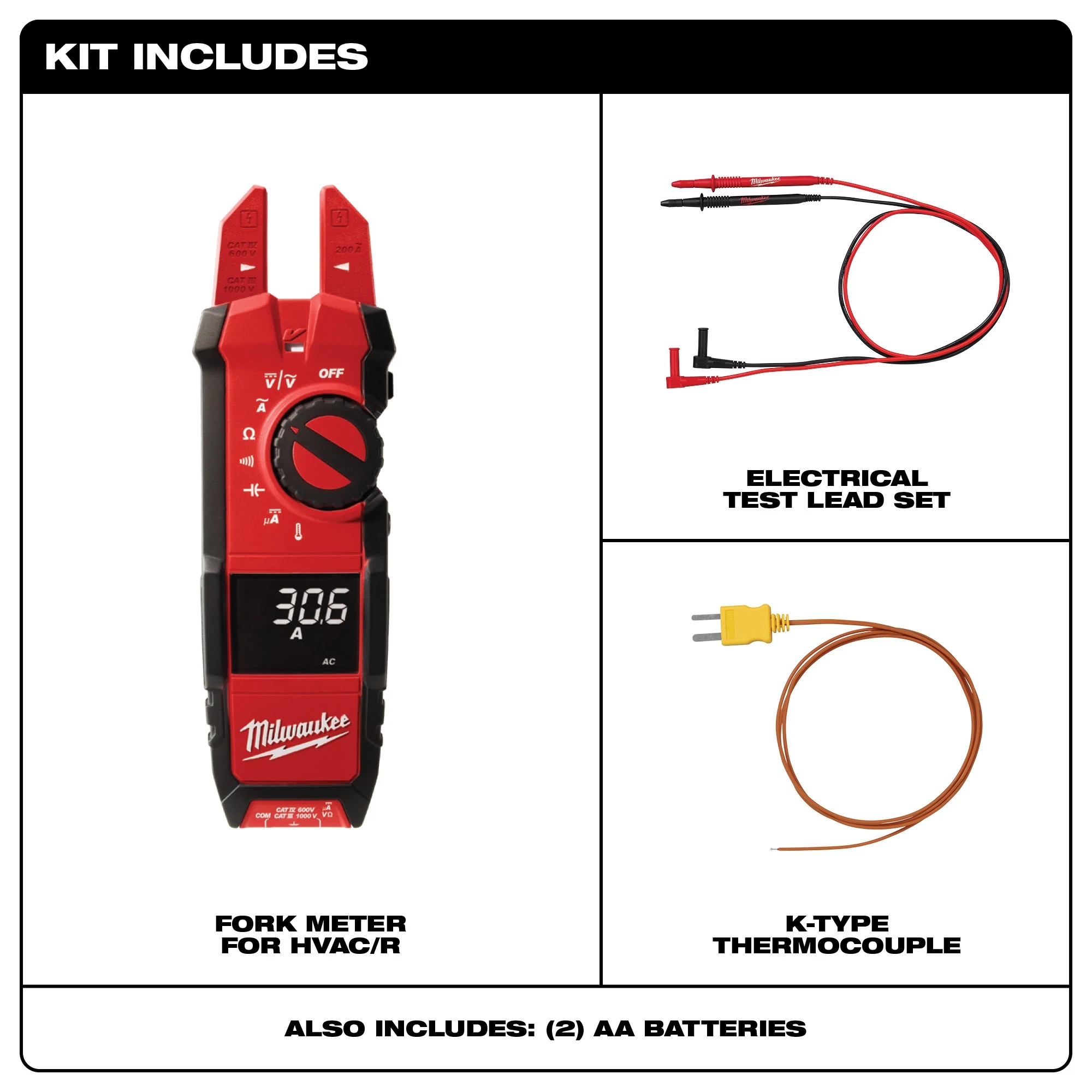

Milwaukee 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 VAC/VDC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display
Login For Price
- Item Features
- Technical Specifications
- Resources
- Measures up to 200 A, wide 0.63 in jaw opening
- Wide voltage range to 1000 VAC/VDC
- True-RMS for accurate measurement in all applications
- 600 uA DC for flame rectification
- Built-in voltage detector and LED work light
- Thermocouple (dual banana) input for contact temperature measurement

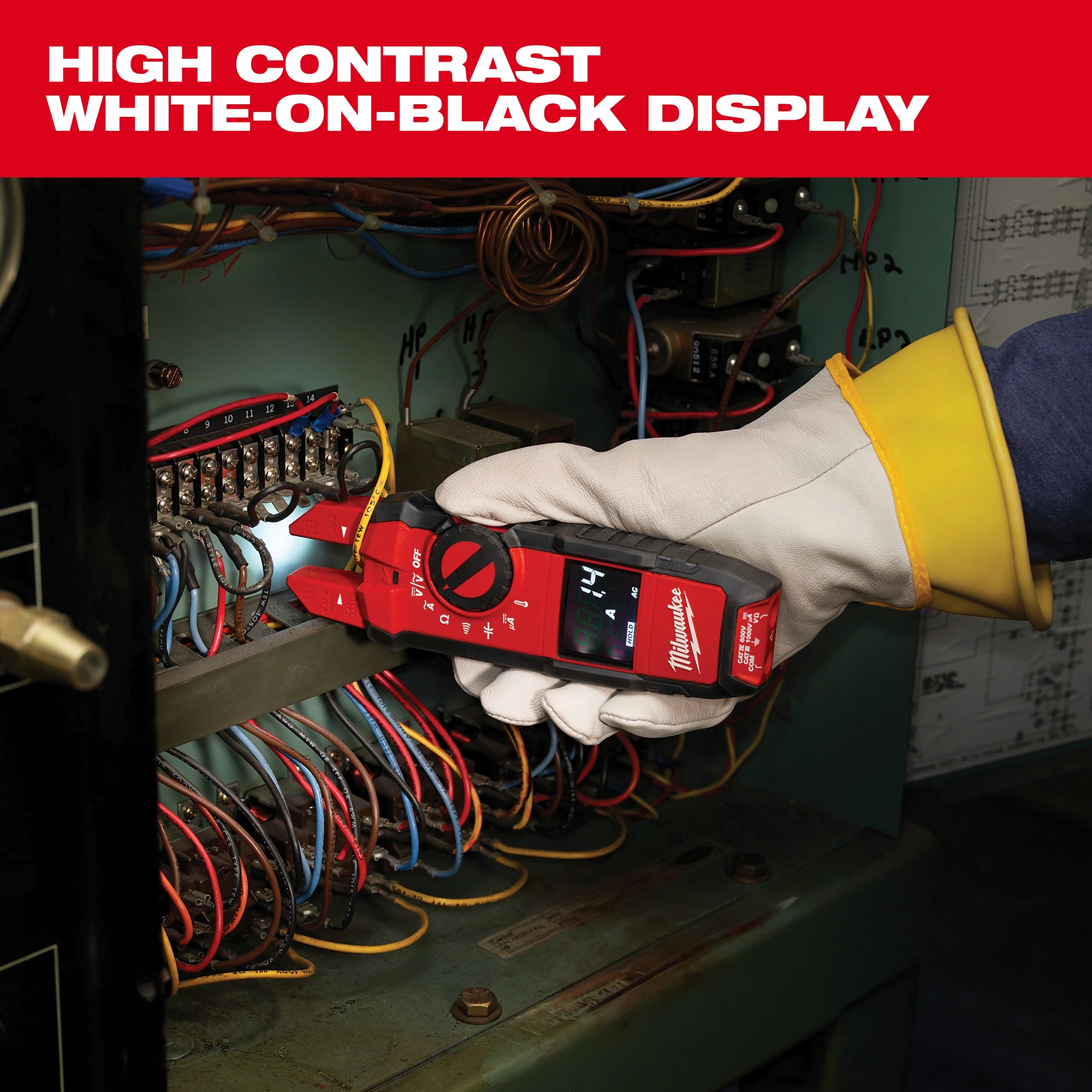

- High contrast white on black display with backlight for easy reading
- Rugged overmolding increases durability and user grip
- Measures up to 200 A, wide 0.63 in jaw opening
- Wide voltage range to 1000 VAC/VDC
- True-RMS for accurate measurement in all applications
- 600 uA DC for flame rectification
- Built-in voltage detector and LED work light
- Thermocouple (dual banana) input for contact temperature measurement
- High contrast white on black display with backlight for easy reading
- Rugged overmolding increases durability and user grip
- AC Current Accuracy:+/-2% + 5 Digits, +/-2% +/-5 DigitsAC Response:True RMSCounts:4000Dimensions:8 in LDisplay Type:High Contrast White on Black LCDElectrical Ratings:1000 VAC/VDC, 200 A, 200 A, 1000 VAC/VDCFrequency Rating:50/60 HzJaw Capacity:5/8 inOperating Temperature:-40 to 752 deg FPower Source:AA Alkaline BatteryResistance:40 mOhmSafety Rating:CAT IV 600 V, CAT III 1000 V, Cat IV 600 V/Cat III 1000 VType:Heavy Duty Digital
