Stellar Industrial | TAP FLUTE SPL RH #10-32 H2 SEMI-BOTMG RH

content loaded

OSG

TAP FLUTE SPL RH #10-32 H2 SEMI-BOTMG RH

tap flute spl rh #10-32 h2 semi-botmg rh

Stellar Part #OSGCO 1703101

MFG Part #1703101

MFG Name:OSG

Product Description:

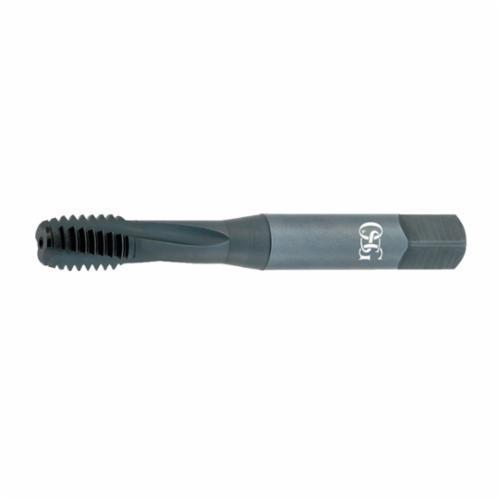

EXO 1703101 313 High Performance Spiral Flute Tap, Right Hand Cutting, #10-32 Thread, H2 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Steam Oxide, VC-10

Technical Specifications

Chamfer Type:

Semi-Bottoming

Class of Fit:

Cutting Direction:

Right Hand

Finish/Coating:

Steam Oxide

Flute Direction:

Right Hand

Material:

VC-10

Material Application:

Alloy Steels, Hardened Steel, Die Steels, Titanium and Inconel

Measurement System:

Imperial

Number of Flutes:

Overall Length:

2-3/8 in

Series:

313

Shank Diameter:

0.194 in

Thread Length:

7/8 in

Thread Limit:

Thread Size:

#10-32

Thread Standard:

UNF

Through Coolant (Yes/No):

Type:

High Performance

: Chamfer Type:
Semi-Bottoming
Class of Fit:
H2
Cutting Direction:
Right Hand
Finish/Coating:
Steam Oxide
Flute Direction:
Right Hand
Material:
VC-10
Material Application:
Alloy Steels, Hardened Steel, Die Steels, Titanium and Inconel
Measurement System:
Imperial
Number of Flutes:
3
Overall Length:
2-3/8 in
Series:
313
Shank Diameter:
0.194 in
Thread Length:
7/8 in
Thread Limit:
H2
Thread Size:
#10-32
Thread Standard:
UNF
Through Coolant (Yes/No):
No
Type:
High Performance
