OSG

TAP FLUTE SPL RH #10-32 H3 RH 3 V-CTD NO

tap flute spl rh #10-32 h3 rh 3 v-ctd no

Stellar Part #OSGCO 31520508

MFG Part #31520508

MFG Name:OSG

Product Description:

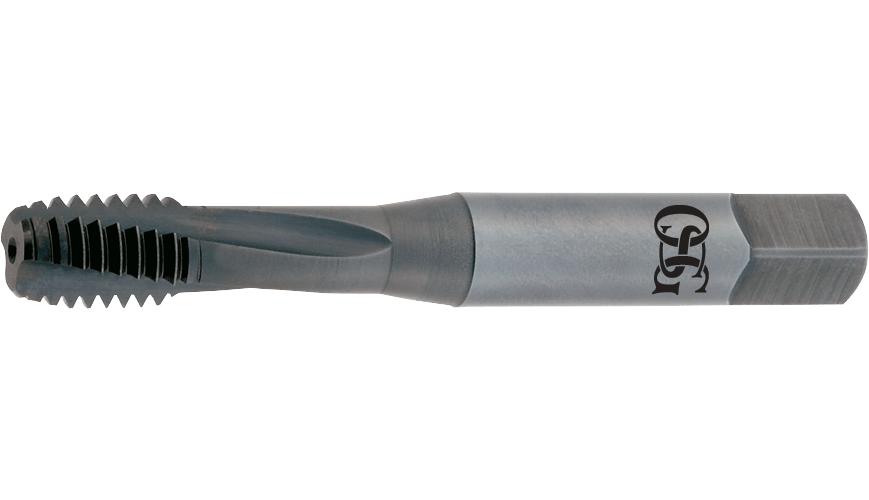

EXO 31520508 EXOTAP STI 315NI High Performance Spiral Flute Tap, Right Hand Cutting, #10-32 Thread, H3 Thread Limit, 2.5P-3P Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiCN, VC-10

Technical Specifications

Country of Origin:

Manufacturer Name:

OSG

Chamfer Type:

2.5P-3P Modified Bottoming

Cutting Direction:

Right Hand

Finish/Coating:

TiCN

Flute Direction:

Right Hand

Material:

VC-10

Material Application:

Steel, Stainless Steel, Aluminum and Heat-Resistant Alloys

Measurement System:

Imperial

Number of Flutes:

Overall Length:

2-1/2 in

Series:

EXOTAP® STI 315NI

Shank Diameter:

0.255 in

Thread Length:

1 in

Thread Limit:

Thread Size:

#10-32

Thread Standard:

UNF

Through Coolant (Yes/No):

Type:

High Performance

: Country of Origin:
JP
Manufacturer Name:
OSG
Chamfer Type:
2.5P-3P Modified Bottoming
Cutting Direction:
Right Hand
Finish/Coating:
TiCN
Flute Direction:
Right Hand
Material:
VC-10
Material Application:
Steel, Stainless Steel, Aluminum and Heat-Resistant Alloys
Measurement System:
Imperial
Number of Flutes:
3
Overall Length:
2-1/2 in
Series:
EXOTAP® STI 315NI
Shank Diameter:
0.255 in
Thread Length:
1 in
Thread Limit:
H3
Thread Size:
#10-32
Thread Standard:
UNF
Through Coolant (Yes/No):
No
Type:
High Performance
