Sandvik Coromant

INSERT TURN CPMT M, P 2(1.5)0 DMD 06 POS

insert turn cpmt m, p 2(1.5)0 dmd 06 pos

Stellar Part #SANCO 5725913

MFG Part #5725913

MFG Name:Sandvik Coromant

Product Description:

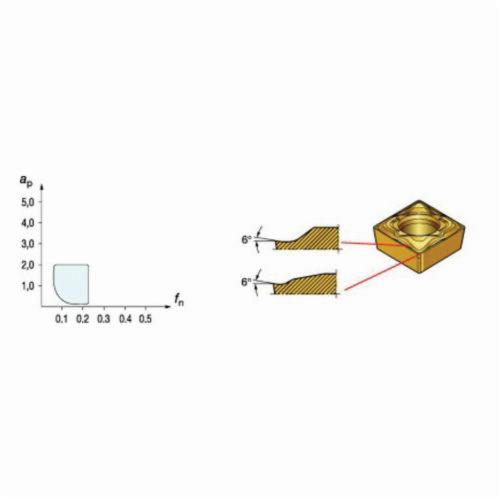

Sandvik Coromant 5725913 CoroTurn 111 Turning Insert, ANSI Code: CPMT 2(1.5)0-PF 1515, CPMT Insert, Material Grade: M, P, 2(1.5)0 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Steel, Carbide

UOM:

Technical Specifications
Resources

ANSI Code:

CPMT 2(1.5)0-PF 1515

Chipbreaker:

Corner Radius:

0.008 in

Cutting Direction:

Neutral

Finish:

CVD-TiCN+Al2O3+TiN Coated

For Use On:

Stainless Steel and Steel

Hole Diameter:

0.1102 in

Included Angle:

80 deg

Inscribed Circle:

1/4 in

Insert Size:

2(1.5)0

Insert Style:

CPMT

ISO Code:

CPMT 06 02 02-PF 1515

Manufacturer's Grade:

1515

Material:

Carbide

Material Grade:

M, P

Maximum Depth of Cut:

1.5 mm

Rake:

Positive

Relief Angle:

11 deg

Seat Size:

06, 6

Series:

CoroTurn® 111

Shape:

Diamond

Thickness:

0.0937 in

: ANSI Code:
CPMT 2(1.5)0-PF 1515
Chipbreaker:
PF
Corner Radius:
0.008 in
Cutting Direction:
Neutral
Finish:
CVD-TiCN+Al2O3+TiN Coated
For Use On:
Stainless Steel and Steel
Hole Diameter:
0.1102 in
Included Angle:
80 deg
Inscribed Circle:
1/4 in
Insert Size:
2(1.5)0
Insert Style:
CPMT
ISO Code:
CPMT 06 02 02-PF 1515
Manufacturer's Grade:
1515
Material:
Carbide
Material Grade:
M, P
Maximum Depth of Cut:
1.5 mm
Rake:
Positive
Relief Angle:
11 deg
Seat Size:
06, 6
Series:
CoroTurn® 111
Shape:
Diamond
Thickness:
0.0937 in
