Sandvik Coromant

INS TRN 32.51 DMD LFT/RH 4415 DCMT 3

ins trn 32.51 dmd lft/rh 4415 dcmt 3

Stellar Part #SANCO 7859053

MFG Part #7859053

MFG Name:Sandvik Coromant

Product Description:

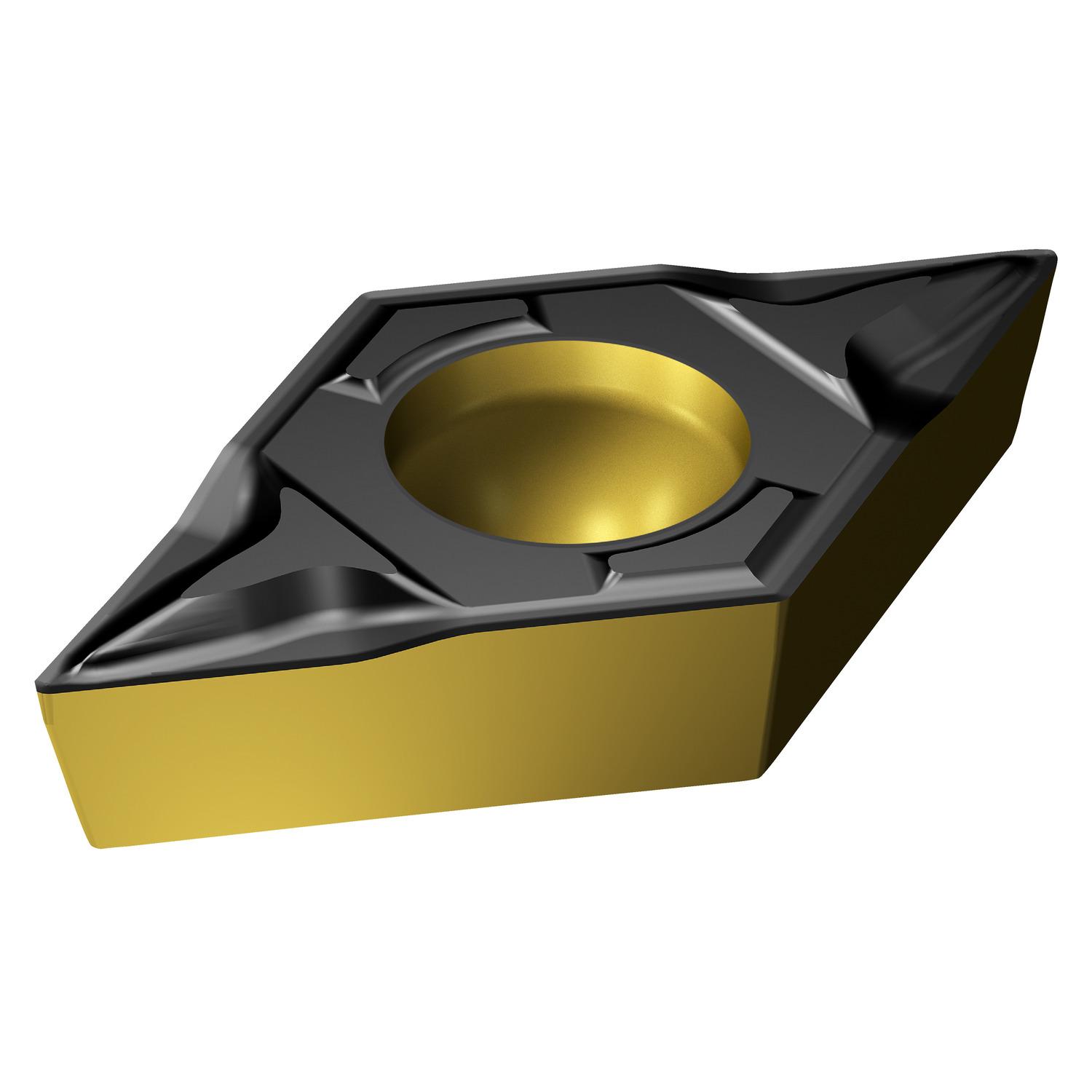

Sandvik Coromant 7859053 CoroTurn 107 Turning Insert, ANSI Code: DCMT 3(2.5)1-PF 4415, DCMT Insert, 32.51 Insert, Diamond Shape, Left/Right Hand Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4415

UOM:

Technical Specifications
Resources

ANSI Code:

DCMT 3(2.5)1-PF 4415

Chipbreaker:

Single-Sided PF

Corner Radius:

0.015626 in

Country of Origin:

Cutting Direction:

Left/Right Hand

Finish:

CVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN

For Use On:

Cast Iron and Steel

Hole Diameter:

6 to 80 mm

Included Angle:

55 deg

Inscribed Circle:

3/8 in

Insert Size:

32.51

Insert Style:

DCMT

ISO Code:

DCMT 11 T3 04-PF 4415

Length:

0.442043 in

Manufacturer Name:

Sandvik Coromant

Manufacturer's Grade:

4415

Material:

Carbide

Maximum Depth of Cut:

2 mm

Relief Angle:

7 deg

Series:

CoroTurn® 107

Shape:

Diamond

Thickness:

5/32 in

: ANSI Code:
DCMT 3(2.5)1-PF 4415
Chipbreaker:
Single-Sided PF
Corner Radius:
0.015626 in
Country of Origin:
JP
Cutting Direction:
Left/Right Hand
Finish:
CVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN
For Use On:
Cast Iron and Steel
Hole Diameter:
6 to 80 mm
Included Angle:
55 deg
Inscribed Circle:
3/8 in
Insert Size:
32.51
Insert Style:
DCMT
ISO Code:
DCMT 11 T3 04-PF 4415
Length:
0.442043 in
Manufacturer Name:
Sandvik Coromant
Manufacturer's Grade:
4415
Material:
Carbide
Maximum Depth of Cut:
2 mm
Relief Angle:
7 deg
Series:
CoroTurn® 107
Shape:
Diamond
Thickness:
5/32 in
