Seco

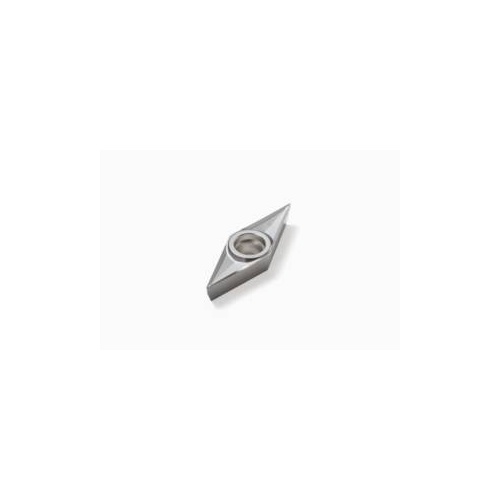

INSERT TURN VCGT N 160402 DMD 16 POS KX

insert turn vcgt n 160402 dmd 16 pos kx

Stellar Part #SECCA 02430465

MFG Part #02430465

MFG Name:Seco Tools

Product Description:

Seco 02430465 Turning Insert, ANSI Code: VCGT330.5F-AL KX, VCGT Insert, Material Grade: N, 160402 Insert, Diamond Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturers Grade: KX

UOM:

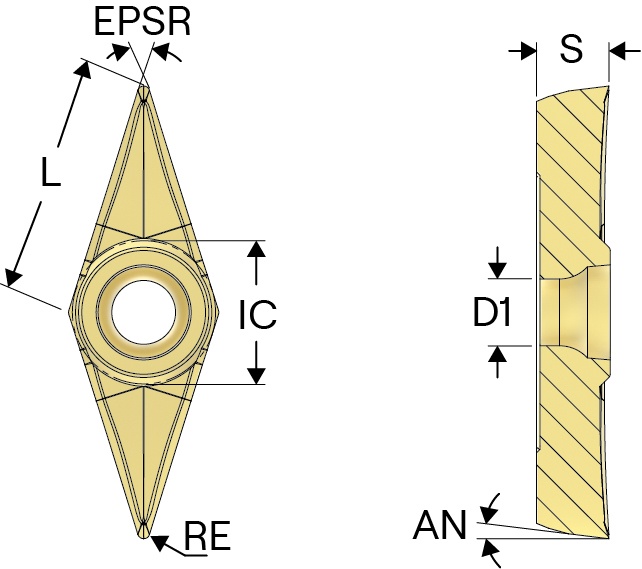

Technical Specifications
Resources

Country of Origin:

CZ, SE

Manufacturer Name:

Seco Tools

ANSI Code:

VCGT330.5F-AL KX

Chipbreaker:

Corner Radius:

0.2 mm

Cutting Direction:

Neutral

Finish:

Uncoated

For Use On:

Non-Ferrous Metals

Hole Diameter:

4.4 mm

Included Angle:

35 deg

Inscribed Circle:

9.52 mm

Insert Size:

160402

Insert Style:

VCGT

ISO Code:

VCGT160402F-AL KX

Manufacturer's Grade:

Material:

Carbide

Material Grade:

Maximum Depth of Cut:

3.75 mm

Rake:

Positive

Relief Angle:

7 deg

Seat Size:

Shape:

Diamond

Thickness:

4.76 mm

: Country of Origin:
CZ, SE
Manufacturer Name:
Seco Tools
ANSI Code:
VCGT330.5F-AL KX
Chipbreaker:
AL
Corner Radius:
0.2 mm
Cutting Direction:
Neutral
Finish:
Uncoated
For Use On:
Non-Ferrous Metals
Hole Diameter:
4.4 mm
Included Angle:
35 deg
Inscribed Circle:
9.52 mm
Insert Size:
160402
Insert Style:
VCGT
ISO Code:
VCGT160402F-AL KX
Manufacturer's Grade:
KX
Material:
Carbide
Material Grade:
N
Maximum Depth of Cut:
3.75 mm
Rake:
Positive
Relief Angle:
7 deg
Seat Size:
16
Shape:
Diamond
Thickness:
4.76 mm
