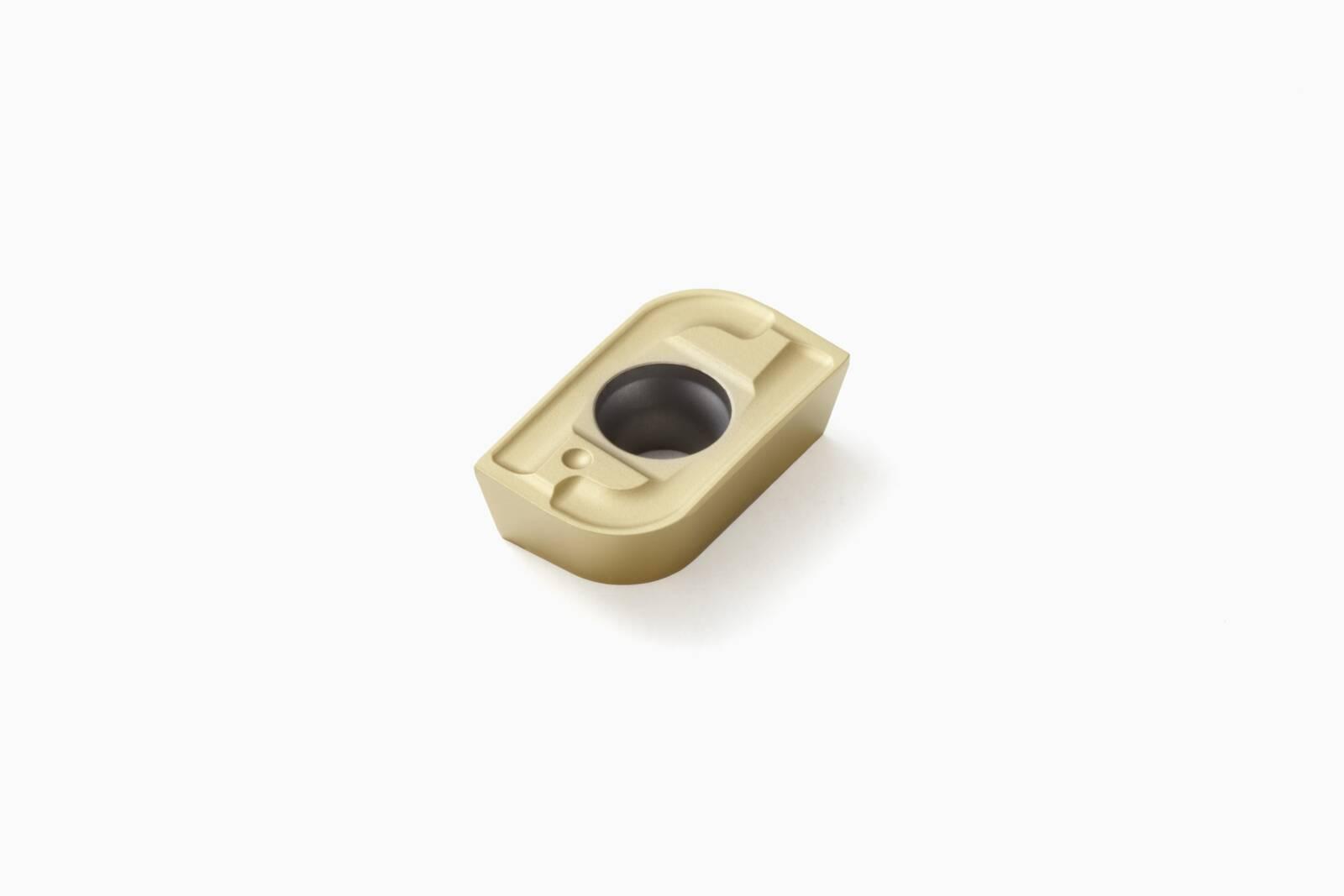

insert milling apft 160430 carbide f40m

Stellar Part #SECCA 02451844

MFG Part #02451844

MFG Name:Seco Tools

Seco 02451844 Milling Insert, ANSI Code: APFT160430R-M13 F40M, APFT Insert, 160430 Insert, Carbide, Manufacturers Grade: F40M, Parallelogram Shape

UOM:

ANSI Code:

APFT160430R-M13 F40M

Chipbreaker:

M13

Corner Radius:

3 mm

Finish:

PVD-TiAlN+TiN Coated

Hand of Insert:

Right

Insert Size:

160430

Insert Style:

APFT

Length:

16.5 mm

Manufacturer's Grade:

F40M

Material:

Carbide

Material Application:

Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials

Shape:

Parallelogram

Thickness:

4.76 mm

: ANSI Code:
APFT160430R-M13 F40M
Chipbreaker:
M13
Corner Radius:
3 mm
Finish:
PVD-TiAlN+TiN Coated
Hand of Insert:
Right
Insert Size:
160430
Insert Style:
APFT
Length:
16.5 mm
Manufacturer's Grade:
F40M
Material:
Carbide
Material Application:
Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials
Shape:
Parallelogram
Thickness:
4.76 mm
