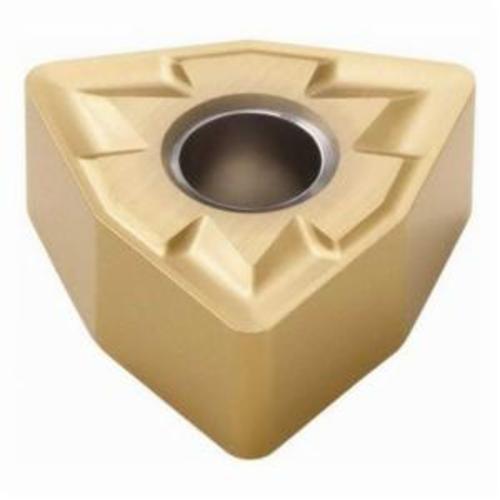

INSERT TURN WNMG M S 060412 TRIGON

insert turn wnmg m s 060412 trigon

Stellar Part #SECCA 02615923

MFG Part #02615923

MFG Name:Seco Tools

Product Description:

Seco 02615923 Turning Insert, ANSI Code: WNMG333-MR3 TS2000, WNMG Insert, Material Grade: M, S, 060412 Insert, Trigon Shape, 06 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Super Alloys and Titanium, Carbide, Manufacturers Grade: TS20

UOM:

Technical Specifications
Resources

Country of Origin:

Manufacturer Name:

Seco Tools

ANSI Code:

WNMG333-MR3 TS2000

Chipbreaker:

MR3

Corner Radius:

1.2 mm

Cutting Direction:

Neutral

Finish:

PVD-TiAlN+TiN Coated, TiAlN/TiN

For Use On:

Stainless Steel, Super Alloys and Titanium

Hole Diameter:

3.81 mm

Included Angle:

80 deg

Inscribed Circle:

9.52 mm

Insert Size:

060412

Insert Style:

WNMG

ISO Code:

WNMG060412-MR3 TS2000

Manufacturer's Grade:

TS2000

Material:

Carbide

Material Grade:

M, S

Maximum Depth of Cut:

3.75 mm

Rake:

Negative

Relief Angle:

0 deg

Seat Size:

Shape:

Trigon

Thickness:

4.76 mm

: Country of Origin:
SE
Manufacturer Name:
Seco Tools
ANSI Code:
WNMG333-MR3 TS2000
Chipbreaker:
MR3
Corner Radius:
1.2 mm
Cutting Direction:
Neutral
Finish:
PVD-TiAlN+TiN Coated, TiAlN/TiN
For Use On:
Stainless Steel, Super Alloys and Titanium
Hole Diameter:
3.81 mm
Included Angle:
80 deg
Inscribed Circle:
9.52 mm
Insert Size:
060412
Insert Style:
WNMG
ISO Code:
WNMG060412-MR3 TS2000
Manufacturer's Grade:
TS2000
Material:
Carbide
Material Grade:
M, S
Maximum Depth of Cut:
3.75 mm
Rake:
Negative
Relief Angle:
0 deg
Seat Size:
06
Shape:
Trigon
Thickness:
4.76 mm
