INSERT TURN VBMT P 110204 DMD 11 POS STL

insert turn vbmt p 110204 dmd 11 pos stl

Stellar Part #SECCA 02754906

MFG Part #02754906

MFG Name:Seco Tools

Product Description:

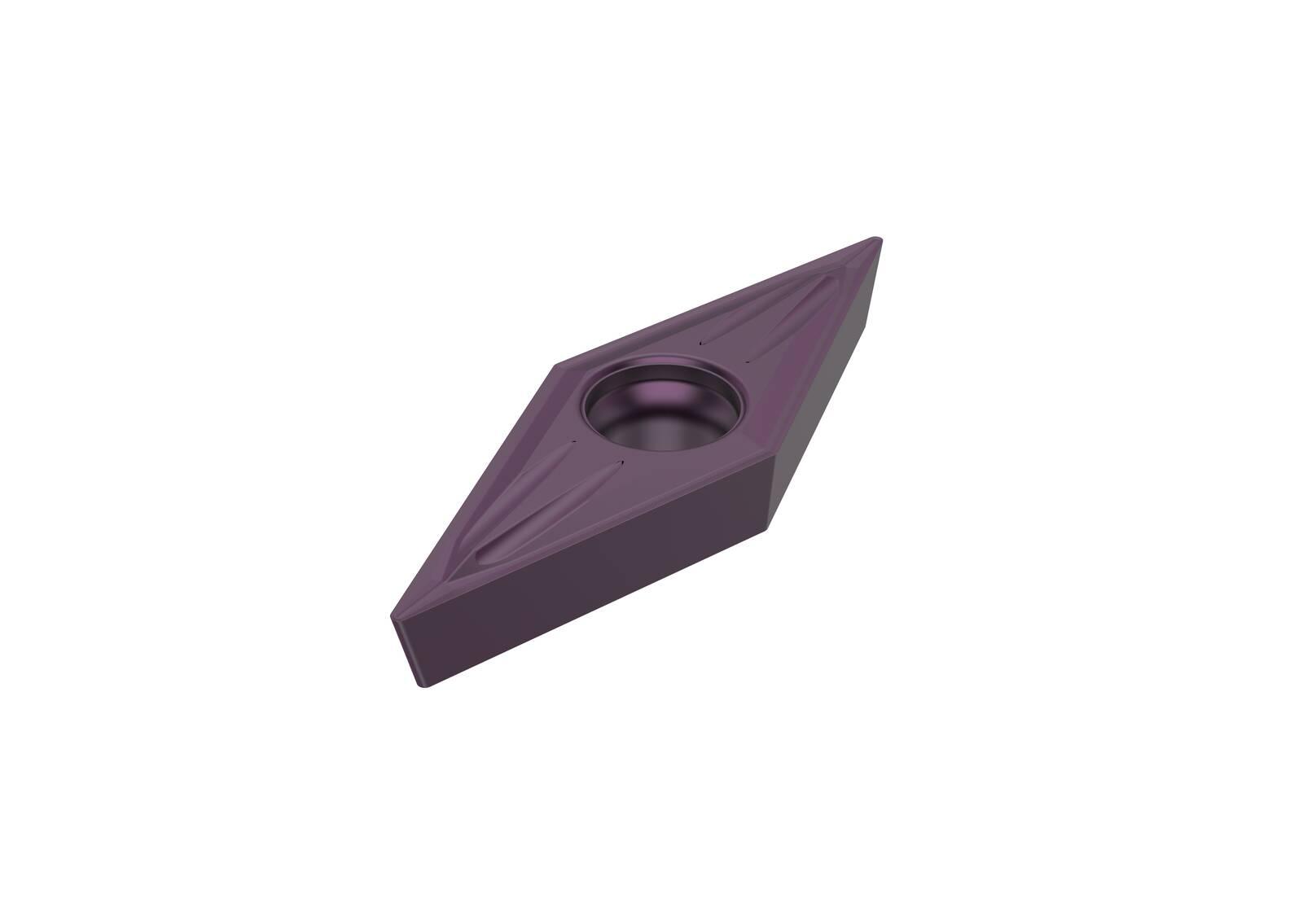

Seco 02754906 Turning Insert, ANSI Code: VBMT21.51-F1 TP1030, VBMT Insert, Material Grade: P, 110204 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP1030

UOM:

Technical Specifications
Resources

Country of Origin:

Manufacturer Name:

Seco Tools

ANSI Code:

VBMT21.51-F1 TP1030

Chipbreaker:

Corner Radius:

0.4 mm

Cutting Direction:

Neutral

Finish:

PVD-TiAlSiN Coated, TiAlSiN

For Use On:

Steel

Hole Diameter:

2.9 mm

Included Angle:

35 deg

Inscribed Circle:

6.35 mm

Insert Size:

110204

Insert Style:

VBMT

ISO Code:

VBMT110204-F1 TP1030

Manufacturer's Grade:

TP1030

Material:

Carbide

Material Grade:

Maximum Depth of Cut:

2.75 mm

Rake:

Positive

Relief Angle:

5 deg

Seat Size:

Shape:

Diamond

Thickness:

2.38 mm

: Country of Origin:
SE
Manufacturer Name:
Seco Tools
ANSI Code:
VBMT21.51-F1 TP1030
Chipbreaker:
F1
Corner Radius:
0.4 mm
Cutting Direction:
Neutral
Finish:
PVD-TiAlSiN Coated, TiAlSiN
For Use On:
Steel
Hole Diameter:
2.9 mm
Included Angle:
35 deg
Inscribed Circle:
6.35 mm
Insert Size:
110204
Insert Style:
VBMT
ISO Code:
VBMT110204-F1 TP1030
Manufacturer's Grade:
TP1030
Material:
Carbide
Material Grade:
P
Maximum Depth of Cut:
2.75 mm
Rake:
Positive
Relief Angle:
5 deg
Seat Size:
11
Shape:
Diamond
Thickness:
2.38 mm
