Stellar Part #SECCA 02959883
MFG Part #02959883
MFG Name:Seco Tools
Product Description:

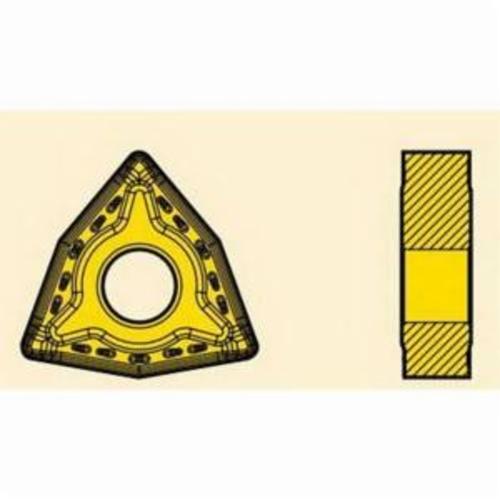

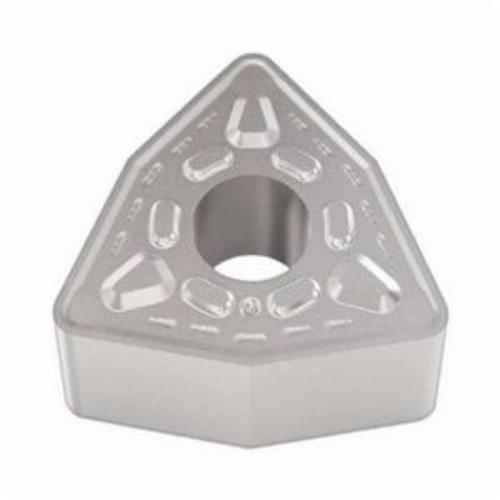

Seco 02959883 Turning Insert, ANSI Code: WNMG443-M6 TP1501, WNMG Insert, Material Grade: P, 080612 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP1501
Login For Price
- Technical Specifications
- Resources
- ANSI Code:WNMG443-M6 TP1501Chipbreaker:M6Corner Radius:1.2 mmCutting Direction:NeutralFinish:CVD-TiCN+Al2O3 Coated, TiCN/Al2O3For Use On:SteelHole Diameter:5.15 mmIncluded Angle:80 degInscribed Circle:12.7 mmInsert Size:080612Insert Style:WNMGISO Code:WNMG080612-M6 TP1501Manufacturer's Grade:TP1501Material:CarbideMaterial Grade:PMaximum Depth of Cut:5 mmRake:NegativeRelief Angle:0 degSeat Size:08Shape:TrigonThickness:6.35 mmCountry of Origin:SEManufacturer Name:Seco Tools
