Stellar Part #SECCA 02960059
MFG Part #02960059
MFG Name:Seco Tools
Product Description:

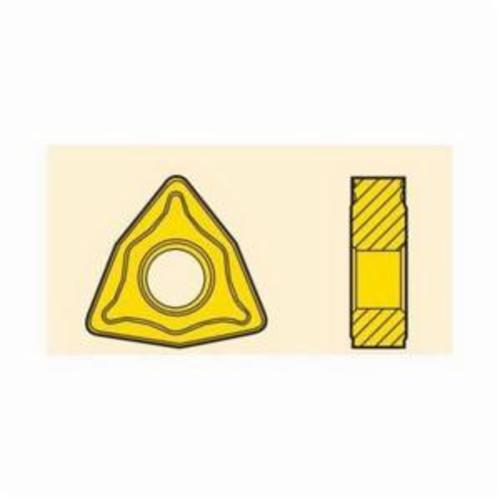

Seco 02960059 High Feed Wiper Turning Insert, ANSI Code: WNMG432W-MF2 TP2501, WNMG Insert, Material Grade: P, 080408 Insert, Trigon Shape, 08 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501
Login For Price
- Technical Specifications
- Resources
- ANSI Code:WNMG432W-MF2 TP2501Chipbreaker:W-MF2Corner Radius:0.8 mmCutting Direction:NeutralFinish:CVD-TiCN+Al2O3 CoatedFor Use On:SteelHole Diameter:5.15 mmIncluded Angle:80 degInscribed Circle:12.7 mmInsert Size:080408Insert Style:WNMGISO Code:WNMG080408W-MF2 TP2501Manufacturer's Grade:TP2501Material:CarbideMaterial Grade:PMaximum Depth of Cut:5 mmRake:Negative/PositiveRelief Angle:0 degSeat Size:08Shape:TrigonThickness:4.76 mmType:High Feed Wiper
