Seco

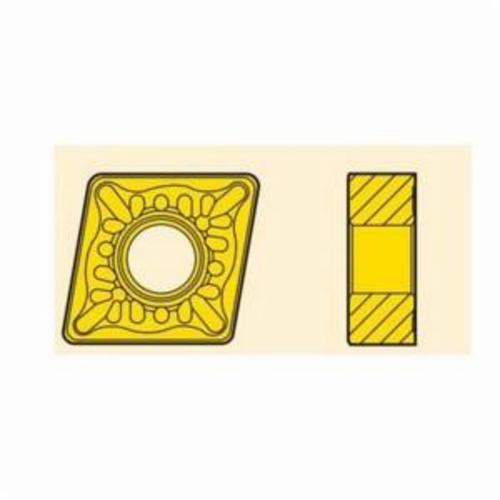

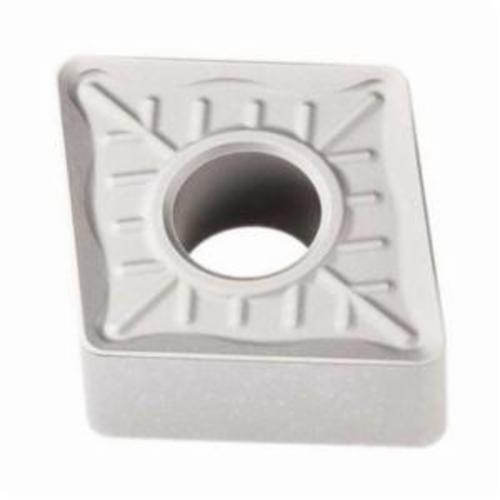

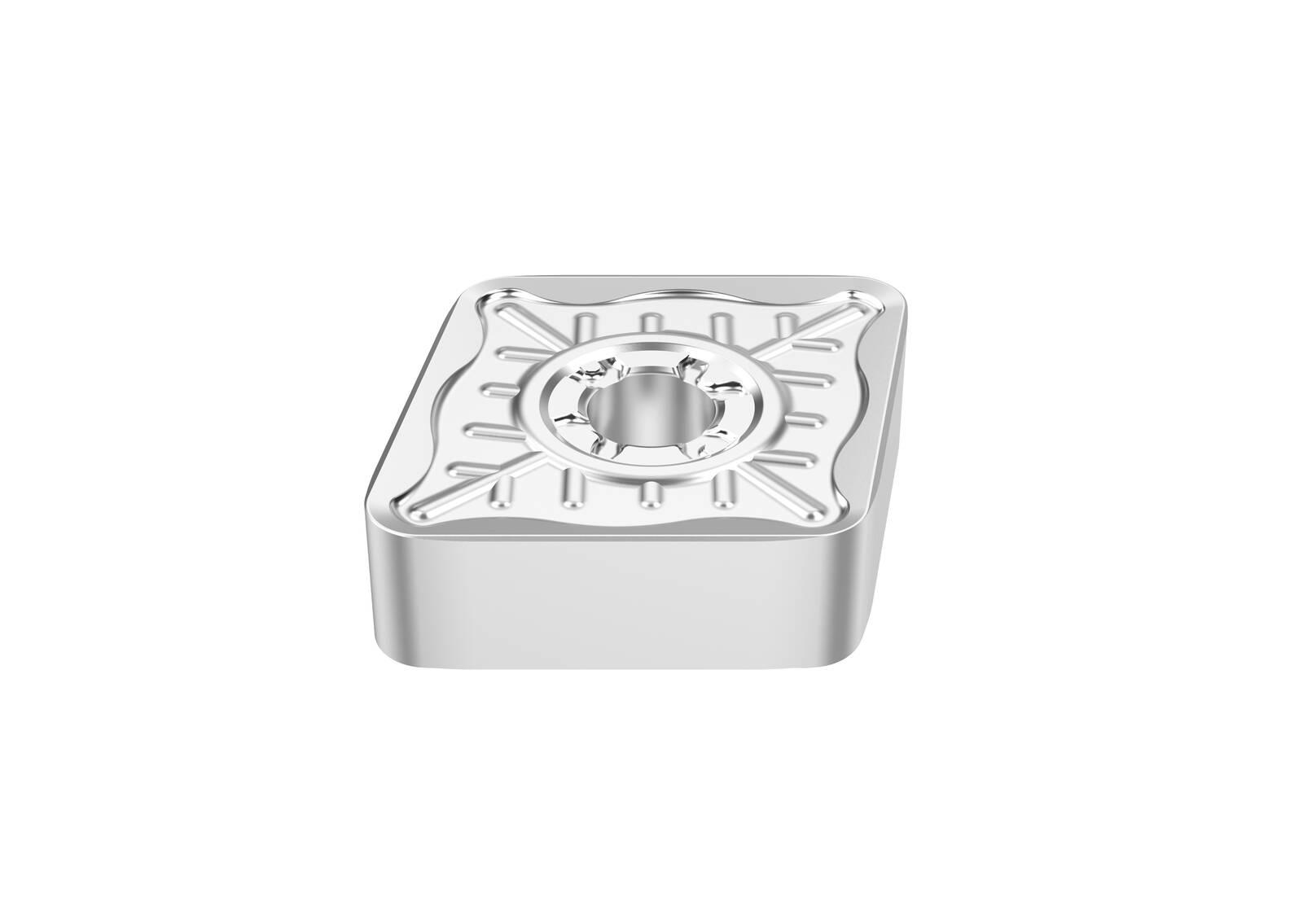

INSERT TURN CNMM P 190612 DMD 19 NEG STL

insert turn cnmm p 190612 dmd 19 neg stl

Stellar Part #SECCA 02960643

MFG Part #02960643

MFG Name:Seco Tools

Product Description:

Seco 02960643 Turning Insert, ANSI Code: CNMM643-R7 TP2501, CNMM Insert, Material Grade: P, 190612 Insert, Diamond Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501

UOM:

Technical Specifications
Resources

Country of Origin:

Manufacturer Name:

Seco Tools

ANSI Code:

CNMM643-R7 TP2501

Chipbreaker:

Corner Radius:

1.2 mm

Cutting Direction:

Neutral

Finish:

CVD-TiCN+Al2O3 Coated, TiCN/Al2O3

For Use On:

Steel

Hole Diameter:

7.92 mm

Included Angle:

80 deg

Inscribed Circle:

19.05 mm

Insert Size:

190612

Insert Style:

CNMM

ISO Code:

CNMM190612-R7 TP2501

Manufacturer's Grade:

TP2501

Material:

Carbide

Material Grade:

Maximum Depth of Cut:

12 mm

Rake:

Negative

Relief Angle:

0 deg

Seat Size:

Shape:

Diamond

Thickness:

6.35 mm

: Country of Origin:
SE
Manufacturer Name:
Seco Tools
ANSI Code:
CNMM643-R7 TP2501
Chipbreaker:
R7
Corner Radius:
1.2 mm
Cutting Direction:
Neutral
Finish:
CVD-TiCN+Al2O3 Coated, TiCN/Al2O3
For Use On:
Steel
Hole Diameter:
7.92 mm
Included Angle:
80 deg
Inscribed Circle:
19.05 mm
Insert Size:
190612
Insert Style:
CNMM
ISO Code:
CNMM190612-R7 TP2501
Manufacturer's Grade:
TP2501
Material:
Carbide
Material Grade:
P
Maximum Depth of Cut:
12 mm
Rake:
Negative
Relief Angle:
0 deg
Seat Size:
19
Shape:
Diamond
Thickness:
6.35 mm
