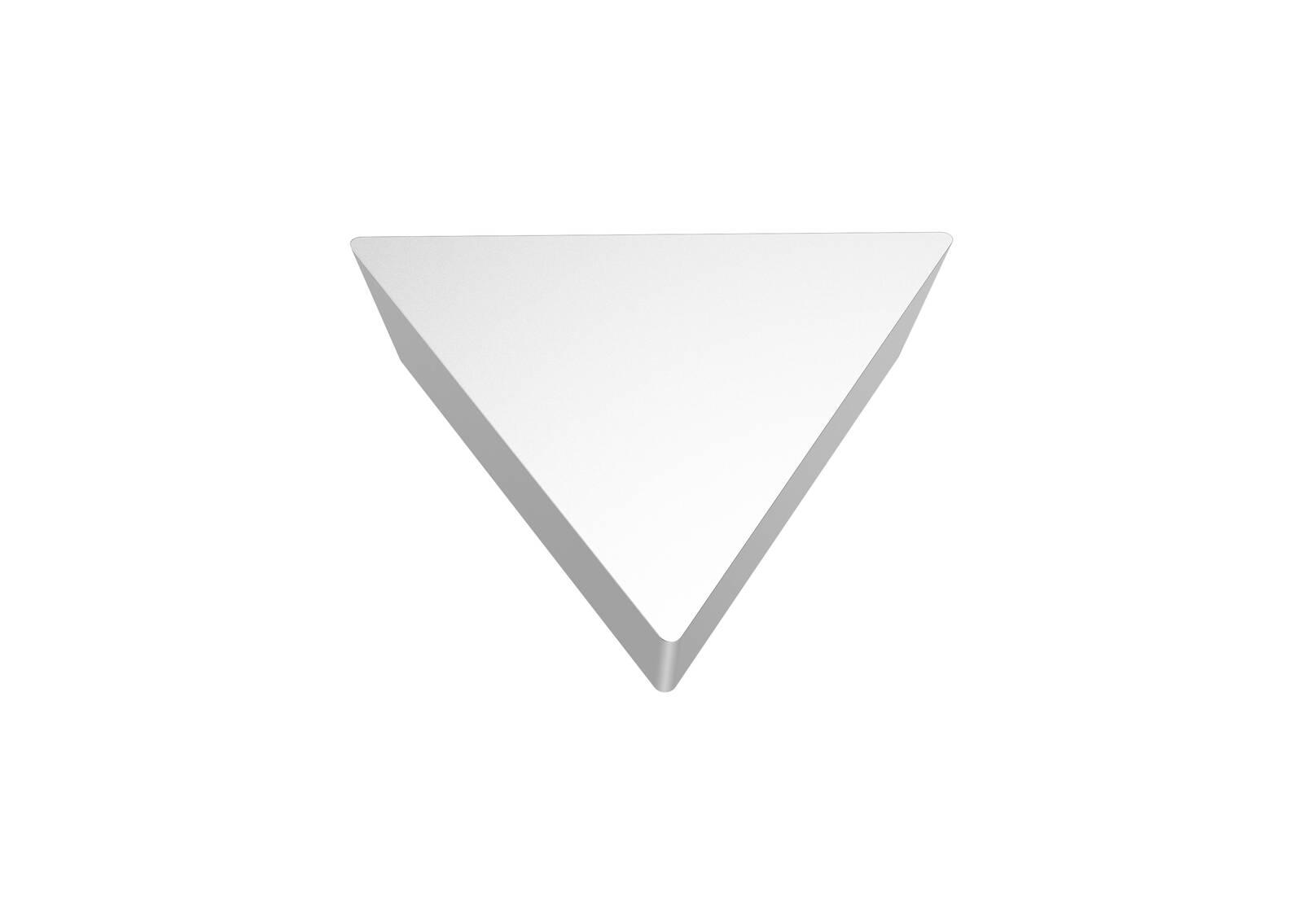

INSERT TURN TPUN P 220408 TRIANGULAR

insert turn tpun p 220408 triangular

Stellar Part #SECCA 02960707

MFG Part #2960707

MFG Name:Seco Tools

Product Description:

Seco 02960707 Turning Insert, ANSI Code: TPU432 TP2501, TPUN Insert, Material Grade: P, 220408 Insert, Triangular Shape, 22 Seat, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501

Technical Specifications
Resources

Country of Origin:

Manufacturer Name:

Seco Tools

ANSI Code:

TPU432 TP2501

Corner Radius:

0.8 mm

Cutting Direction:

Neutral

Finish:

TiCN/Al2O3

For Use On:

Steel

Included Angle:

60 deg

Inscribed Circle:

12.7 mm

Insert Size:

220408

Insert Style:

TPUN

ISO Code:

TPUN220408 TP2501

Length:

22 mm

Manufacturer's Grade:

TP2501

Material:

Carbide

Material Grade:

Maximum Depth of Cut:

5.25 mm

Relief Angle:

11 deg

Seat Size:

Shape:

Triangular

Thickness:

4.76 mm

: Country of Origin:
SE
Manufacturer Name:
Seco Tools
ANSI Code:
TPU432 TP2501
Corner Radius:
0.8 mm
Cutting Direction:
Neutral
Finish:
TiCN/Al2O3
For Use On:
Steel
Included Angle:
60 deg
Inscribed Circle:
12.7 mm
Insert Size:
220408
Insert Style:
TPUN
ISO Code:
TPUN220408 TP2501
Length:
22 mm
Manufacturer's Grade:
TP2501
Material:
Carbide
Material Grade:
P
Maximum Depth of Cut:
5.25 mm
Relief Angle:
11 deg
Seat Size:
22
Shape:
Triangular
Thickness:
4.76 mm
