Seco

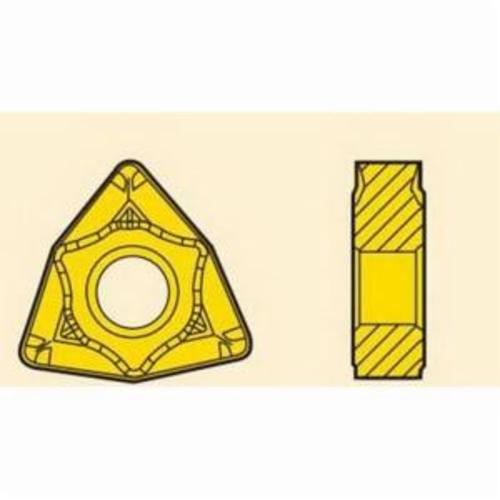

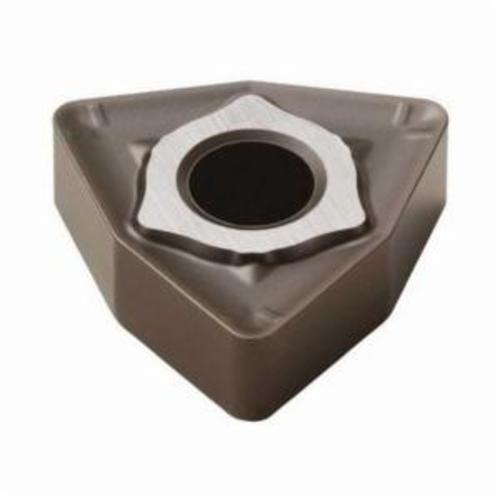

INSERT TURN WNMG P 080408 TRIGON 08 NEG

insert turn wnmg p 080408 trigon 08 neg

Stellar Part #SECCA 50244

MFG Part #50244

MFG Name:Seco Tools

Product Description:

Seco 50244 Turning Insert, ANSI Code: WNMG432-MR6 TP3500, WNMG Insert, Material Grade: P, 080408 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP3500

UOM:

Technical Specifications

ANSI Code:

WNMG432-MR6 TP3500

Chipbreaker:

MR6

Corner Radius:

0.8 mm

Cutting Direction:

Neutral

Finish:

TiCN/Al2O3

For Use On:

Steel

Hole Diameter:

5.15 mm

Included Angle:

80 deg

Inscribed Circle:

12.7 mm

Insert Size:

080408

Insert Style:

WNMG

ISO Code:

WNMG080408-MR6 TP3500

Manufacturer's Grade:

TP3500

Material:

Carbide

Material Grade:

Maximum Depth of Cut:

5 mm

Rake:

Negative

Relief Angle:

0 deg

Seat Size:

Shape:

Trigon

Thickness:

4.76 mm

Country of Origin:

Manufacturer Name:

Seco Tools

: ANSI Code:
WNMG432-MR6 TP3500
Chipbreaker:
MR6
Corner Radius:
0.8 mm
Cutting Direction:
Neutral
Finish:
TiCN/Al2O3
For Use On:
Steel
Hole Diameter:
5.15 mm
Included Angle:
80 deg
Inscribed Circle:
12.7 mm
Insert Size:
080408
Insert Style:
WNMG
ISO Code:
WNMG080408-MR6 TP3500
Manufacturer's Grade:
TP3500
Material:
Carbide
Material Grade:
P
Maximum Depth of Cut:
5 mm
Rake:
Negative
Relief Angle:
0 deg
Seat Size:
08
Shape:
Trigon
Thickness:
4.76 mm
Country of Origin:
SE
Manufacturer Name:
Seco Tools
