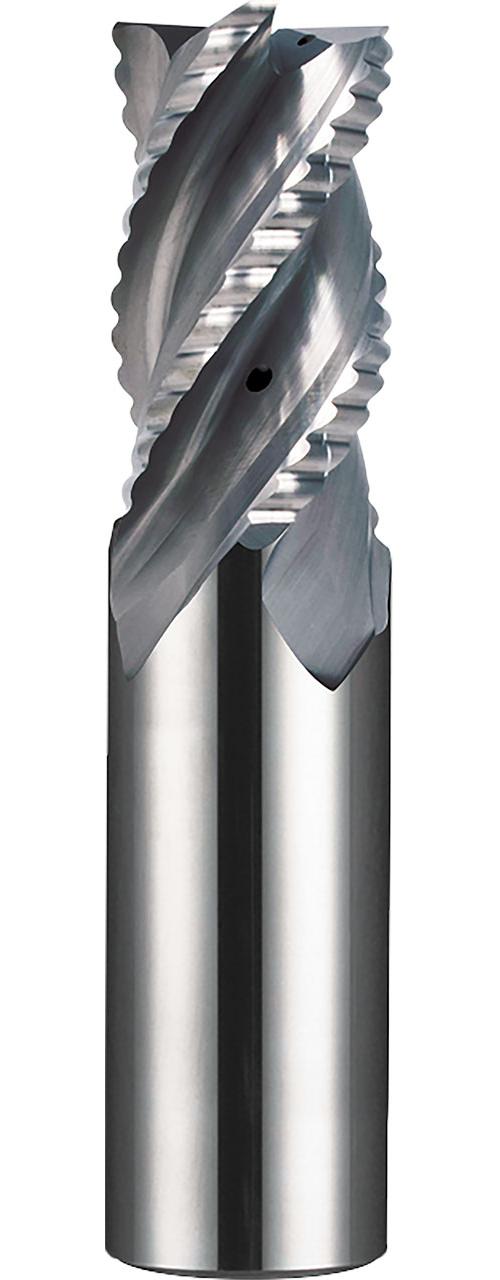

SGS 44691 S-Carb 43MAPR Center Cutting High Performance Long Reach Neck Positive Rake End Mill With Through Coolant, 20 mm Dia Cutter, 3 mm Corner Radius, 35 mm Length of Cut, 3 Flutes, 20 mm Dia Shank, 104 mm OAL, TiB2 Coated
endmill s-carb apr 20x20x35x104
Stellar Part #SGSTO 44691
MFG Part #44691
MFG Name:KYOCERA SGS Precision Tools
Product Description:
SGS® End Mill, Center Cutting High Performance Long Reach Neck Positive Rake, Series: S-Carb® 43MAPR, 20 mm Cutter Dia, 3 mm Corner Radius, 104 mm Overall Length, 35 mm Length of Cut, 3 Flutes, Spiral Flute, 20 mm Shank Dia, Right Hand Cutting, 38 deg Helix Angle, Straight Shank, 2-7/8 in Shank Length, Solid Carbide, TiB2 Coated
Login For Price
- Item Features
- Technical Specifications
- Resources
- 3-flute design for high feed power roughing
- High feed direct plunge ability
- Polished flutes to maximize chip evacuation
- Designed for machines with capability for 600 cubic inches per minute of material removal
- Ti-NAMITE-B ceramic based coating with industry leading built-up edge protection
- 3-flute design for high feed power roughing
- High feed direct plunge ability
- Polished flutes to maximize chip evacuation
- Designed for machines with capability for 600 cubic inches per minute of material removal
- Ti-NAMITE-B ceramic based coating with industry leading built-up edge protection
- Cutting Direction:Right HandFinish:TiB2 CoatedMaterial:Solid CarbideOverall Length:104 mmSeries:S-Carb 43MAPR, S-Carb® 43MAPRType:Center Cutting High Performance Long Reach Neck Positive RakeCorner Radius:3 mmCutter Diameter:20 mmFlute Type:SpiralHelix Angle:38 degLength of Cut:35 mmNumber of Flutes:3Shank Diameter:20 mmShank Length:2-7/8 inShank Type:Straight
