Stellar Part #STARR 25-631J
MFG Part #53304
MFG Name:L.S. Starrett
Product Description:

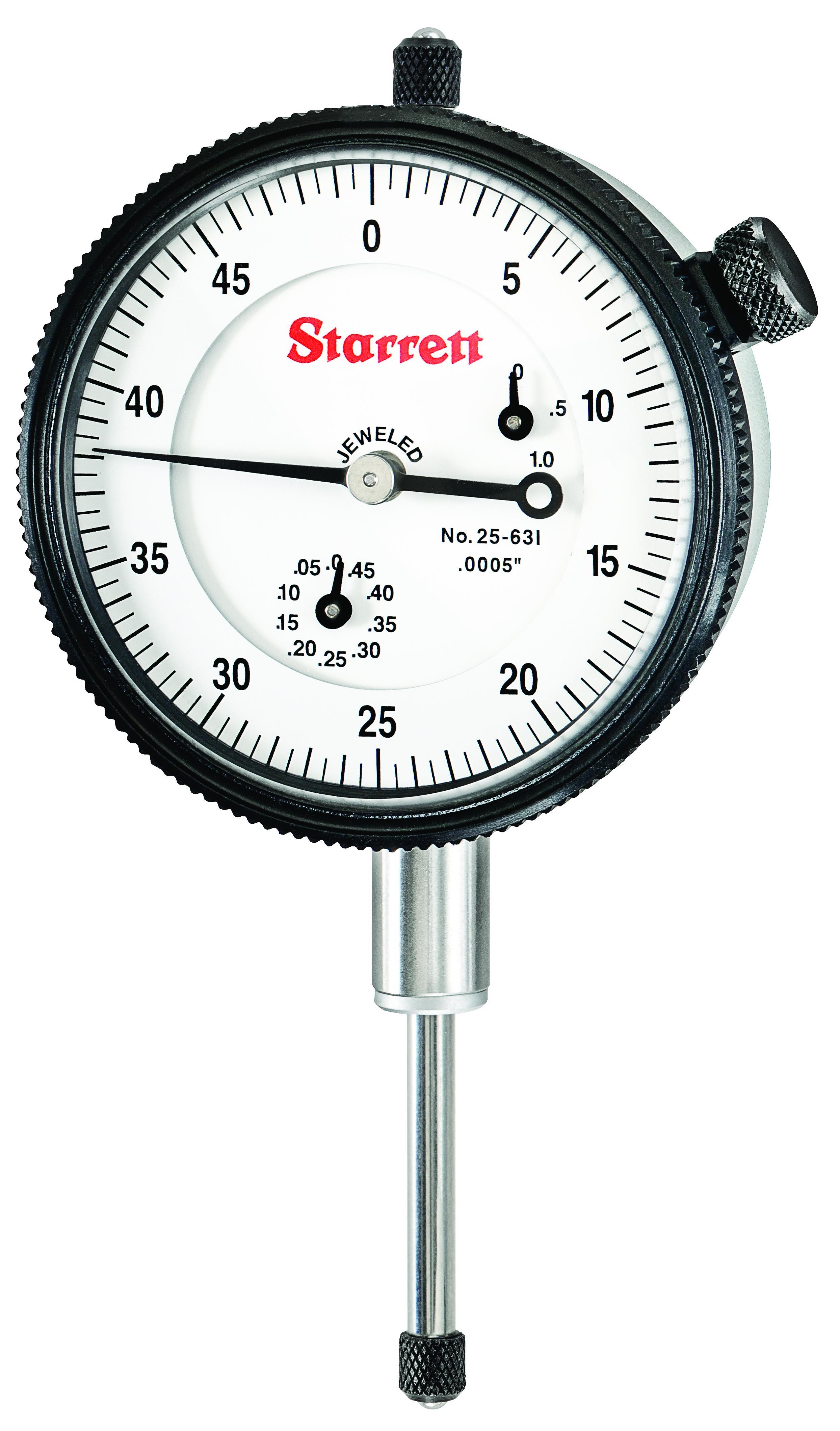

Starrett® Dial Indicator, Series: 25 Series, 1 in, 0 to 50 Dial, Graduations: 0.0005 in, 2-19/64 in Dial, White Dial, 13/64 in Tip, Hardened Stainless Steel, Satin
Login For Price
- Item Features
- Technical Specifications
- Resources
- Rugged and simple unit construction with a universally fitting design
- Unbreakable crystal, 3/8 in Dia stem
- Positive acting clamp locks bezel in position
- No-glare satin finish on case
- Interchangeable contact point
- Four screw holes for 90 deg rotation of back
- Direct acting compression spring eliminates side friction
- Hardened stainless steel rack, gears, spindle and pinions
- Conforms to AGD Group 2 specifications except for range
- A shockless, hardened steel gear train and is furnished with jewel bearings and lug-on-center backs, 0.05 in one rev range
- Stem cap supplied as standard
- The gear unit is constructed of a massive single bridge and plate assembly with a hardened stainless steel gear train
- Furnished with continuous reading double dial with direct reading count hands
- All gear trains are fully jeweled for sensitivity, smoothness and life
- The case is light but sturdy, with a hardened, precision stainless steel rack that rides in bronze bushings, size Groups 0 and 1 indicators are of similar construction but smaller in size
- Hardened stainless steel bottom stems can be held in fixtures without cramping rack action
- Easy readability with the best, balanced style of graduation and number combination
- Balanced and tapered hands are easy-to follow
- Special non-shock mechanism is ideal for when an indicator may be subjected to repeated and excessive shocks
- Sharp bezel serrations for positive grip
- Rugged and simple unit construction with a universally fitting design
- Unbreakable crystal, 3/8 in Dia stem
- Positive acting clamp locks bezel in position
- No-glare satin finish on case
- Interchangeable contact point
- Four screw holes for 90 deg rotation of back
- Direct acting compression spring eliminates side friction
- Hardened stainless steel rack, gears, spindle and pinions
- Conforms to AGD Group 2 specifications except for range
- A shockless, hardened steel gear train and is furnished with jewel bearings and lug-on-center backs, 0.05 in one rev range
- Stem cap supplied as standard
- The gear unit is constructed of a massive single bridge and plate assembly with a hardened stainless steel gear train
- Furnished with continuous reading double dial with direct reading count hands
- All gear trains are fully jeweled for sensitivity, smoothness and life
- The case is light but sturdy, with a hardened, precision stainless steel rack that rides in bronze bushings, size Groups 0 and 1 indicators are of similar construction but smaller in size
- Hardened stainless steel bottom stems can be held in fixtures without cramping rack action
- Easy readability with the best, balanced style of graduation and number combination
- Balanced and tapered hands are easy-to follow
- Special non-shock mechanism is ideal for when an indicator may be subjected to repeated and excessive shocks
- Sharp bezel serrations for positive grip
- Country of Origin:USManufacturer Name:L.S. StarrettDial Color:WhiteDial Reading:0 to 50Dial Size:2-19/64 inFinish:SatinGraduations:0.0005 inMaterial:Hardened Stainless SteelMeasuring Range:1 inSeries:25 SeriesTip Size:13/64 in
