L.S. Starrett
GAGE BORE DIAL 3-5-3/16IN 0.0001IN 6IN
gage bore dial 3-5-3/16in 0.0001in 6in
Stellar Part #STARR 84AZ-111-5J
MFG Part #27
MFG Name:L.S. Starrett
Product Description:

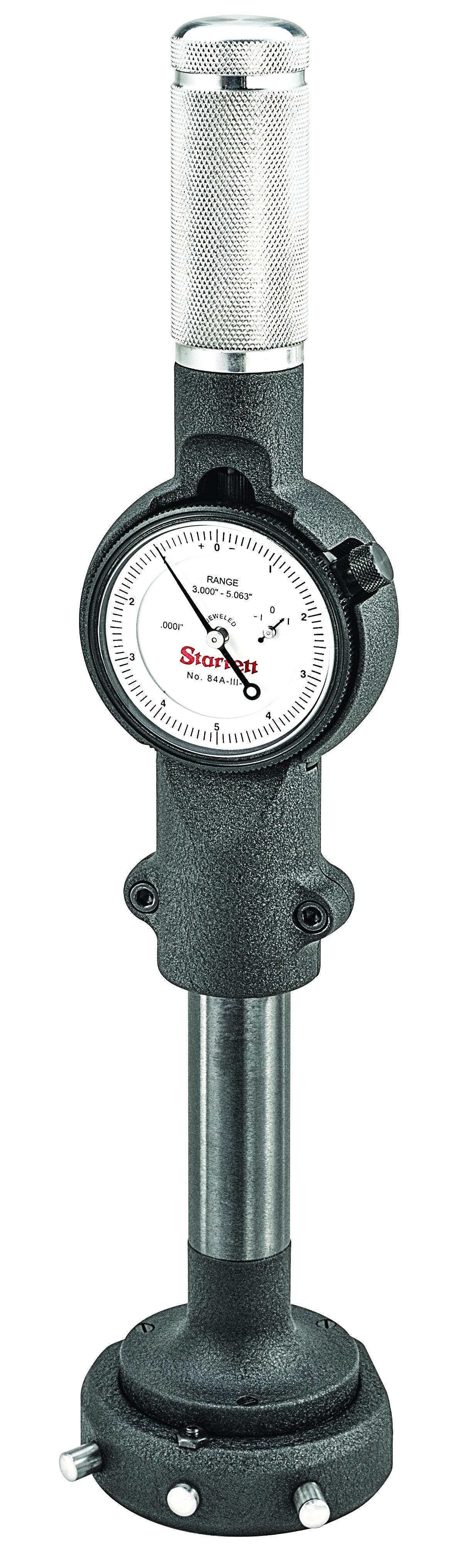

Starrett® Dial Bore Gage, Series: 84 Series, 3 to 5-3/16 in, Graduations: 0.0001 in, 6 in Probe Depth, 2-21/32 in Dia Dial, White Dial, Hardened Tool Steel, 12-3/4 in L
Login For Price
- Item Features
- Technical Specifications
- Resources
- Can be easily held to inspect bores and hole sizes without removing the workpiece
- An adjustable range screw and two centralizing plungers provide accurate, three-point contact for tool alignment in larger bores
- All contacts and centralized plungers are of hardened tool steel for wear and spring-loaded for sensitivity
- The housing and knurled handle are aluminum for light weight and good balance
- Dial indicators have jewel bearings for sensitivity

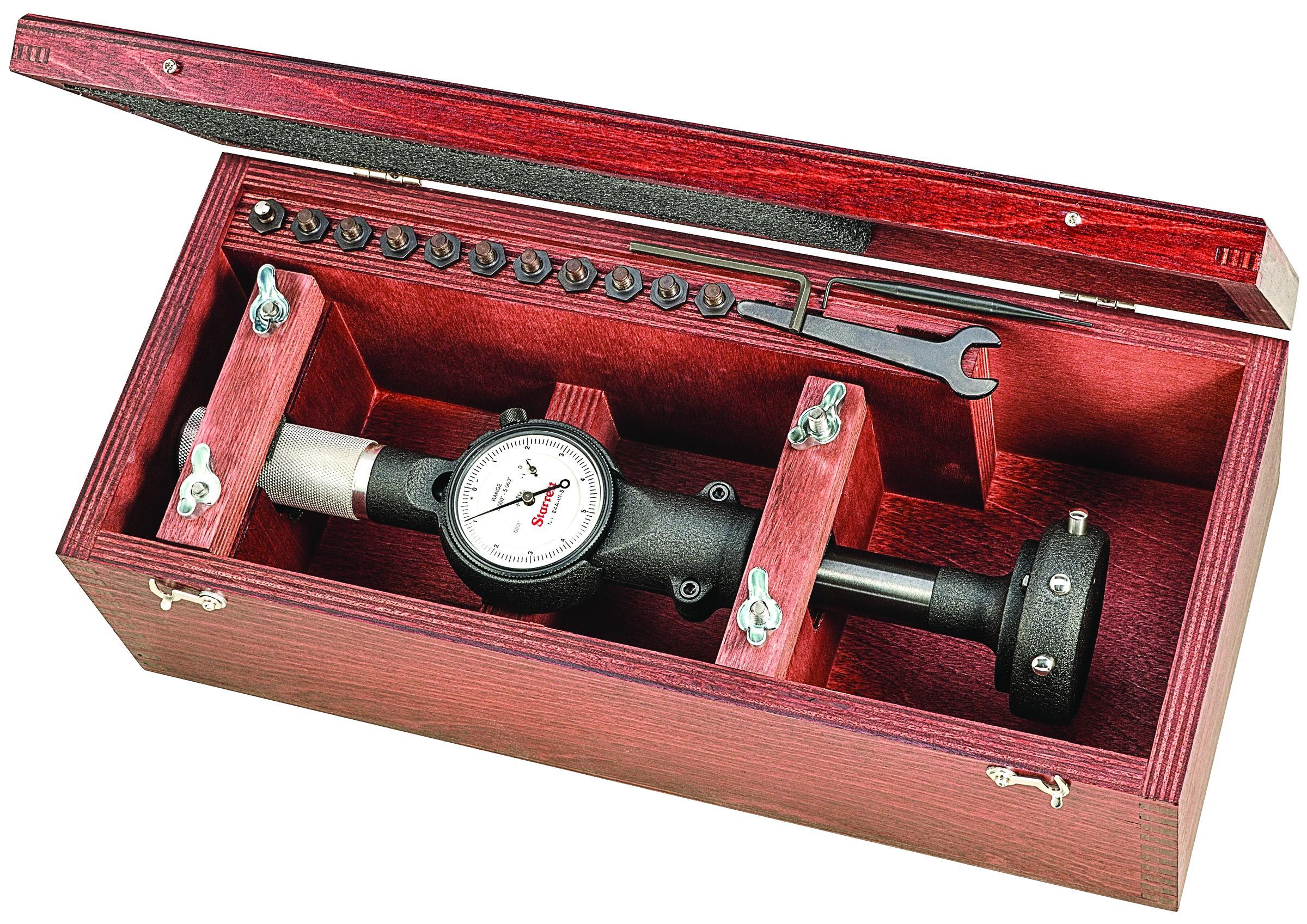

- Furnished in finished wood case
- Bore depths are also available up to 12 in (300 mm) in 1 in (25 mm) increments on special order
- Also available with carbide contacts or electronic indicators with output capability on special order
- Can be easily held to inspect bores and hole sizes without removing the workpiece
- An adjustable range screw and two centralizing plungers provide accurate, three-point contact for tool alignment in larger bores
- All contacts and centralized plungers are of hardened tool steel for wear and spring-loaded for sensitivity
- The housing and knurled handle are aluminum for light weight and good balance
- Dial indicators have jewel bearings for sensitivity
- Furnished in finished wood case
- Bore depths are also available up to 12 in (300 mm) in 1 in (25 mm) increments on special order
- Also available with carbide contacts or electronic indicators with output capability on special order
- Country of Origin:USManufacturer Name:L.S. StarrettDial Color:WhiteDial Size:2-21/32 in DiaDimensions:12-3/4 in LGraduations:0.0001 inMaterial:Hardened Tool SteelMeasuring Range:3 to 5-3/16 inProbe Depth:6 inSeries:84 Series
